EV battery packs contain multiple connected cells. Over time, voltage levels between cells may become different. During battery service, charging alone may not address these differences. EV battery balancing helps technicians manage voltage differences between connected cells and maintain better consistency.
For technicians, the right EV battery balancer can make the balancing process more controlled and measurable.
An EV battery pack contains many connected cells. Their voltage levels can change at different rates during use and charging. This can create voltage differences between cells.
Checking cell voltage is an important part of battery service. Technicians need to identify voltage differences before and during balancing. A suitable EV battery balancing system can monitor multiple channels and provide clearer data for service work.
Charging adds energy to the battery. Balancing focuses on managing voltage differences between connected cells. These are related but different tasks.
When choosing EV battery balancing equipment, technicians can focus on several key factors.
More channels allow technicians to handle more cells in one operation. For professional battery service, multi-channel capability can expand the range of applications.
Battery balancing requires accurate voltage monitoring. A finer voltage resolution helps technicians identify small voltage differences between cells.
The voltage difference after balancing is another factor to consider. It provides a reference for reviewing the balancing process.
With multiple battery channels, connection errors can affect the service process. Connection detection can help identify reversed, skipped, or missing connections.
Recorded balancing data makes it easier to review the service process and keep useful battery service information.

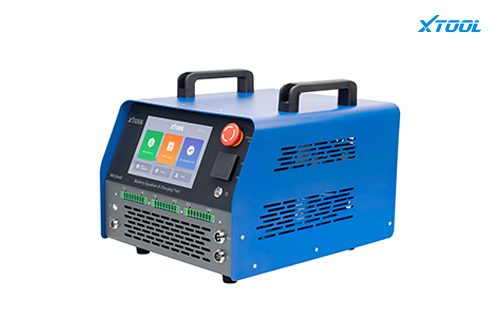

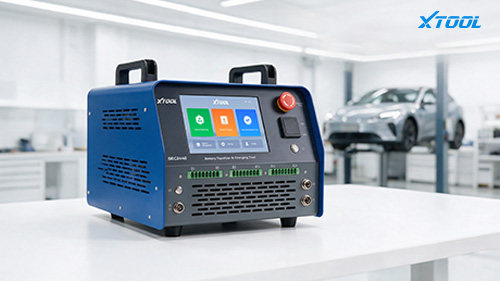

For workshops that need more than a basic battery balancer, XTOOL BEC2440 combines multi-channel balancing with measurement and monitoring functions in one system.
BEC2440 supports 1–24 balancing channels. Three 8-pin balancing connectors cover B1–B24, giving technicians flexible options for different battery service tasks.
Precise Voltage Measurement
BEC2440 provides 1 mV voltage resolution and ±1 mV voltage measurement accuracy. The per-cell voltage measurement range is 0–5 V.
After balancing, the cell-voltage difference can be ≤5 mV. This gives technicians a clear reference when reviewing the balancing result.
BEC2440 can detect reversed, skipped, and missing connections across 24 channels. It also provides two battery temperature measurement channels with ±1°C accuracy.
Balancing data is recorded at 1-second intervals and can be exported to a USB drive. Technicians can keep the data for later review.
The right EV battery balancer should offer more than basic balancing. Channel capacity, voltage measurement, connection detection, balancing results, and data recording all matter.XTOOL BEC2440 brings these functions together to support more complete and measurable EV battery balancing.Contact our professional team.
Written by Echo CHEN
