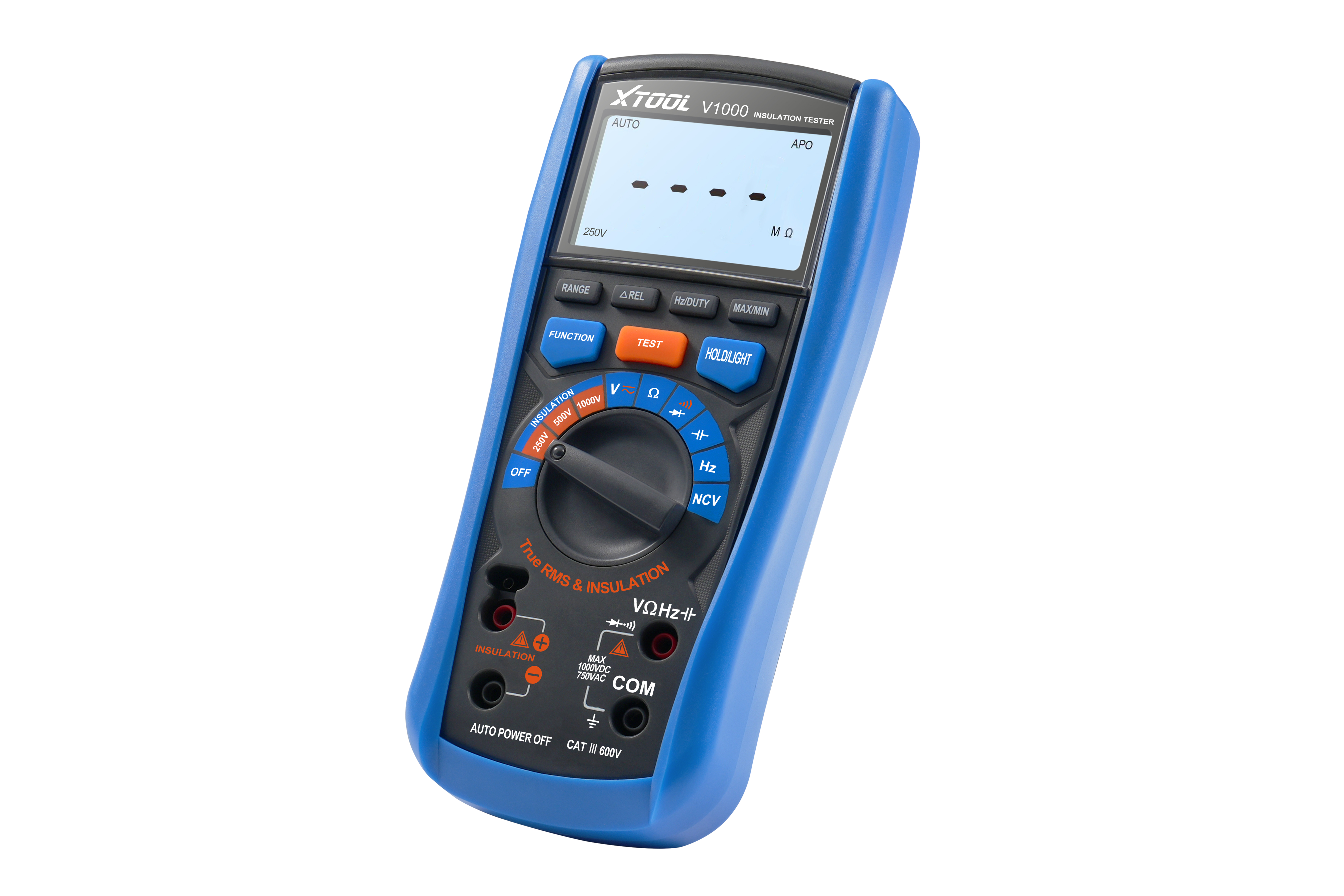

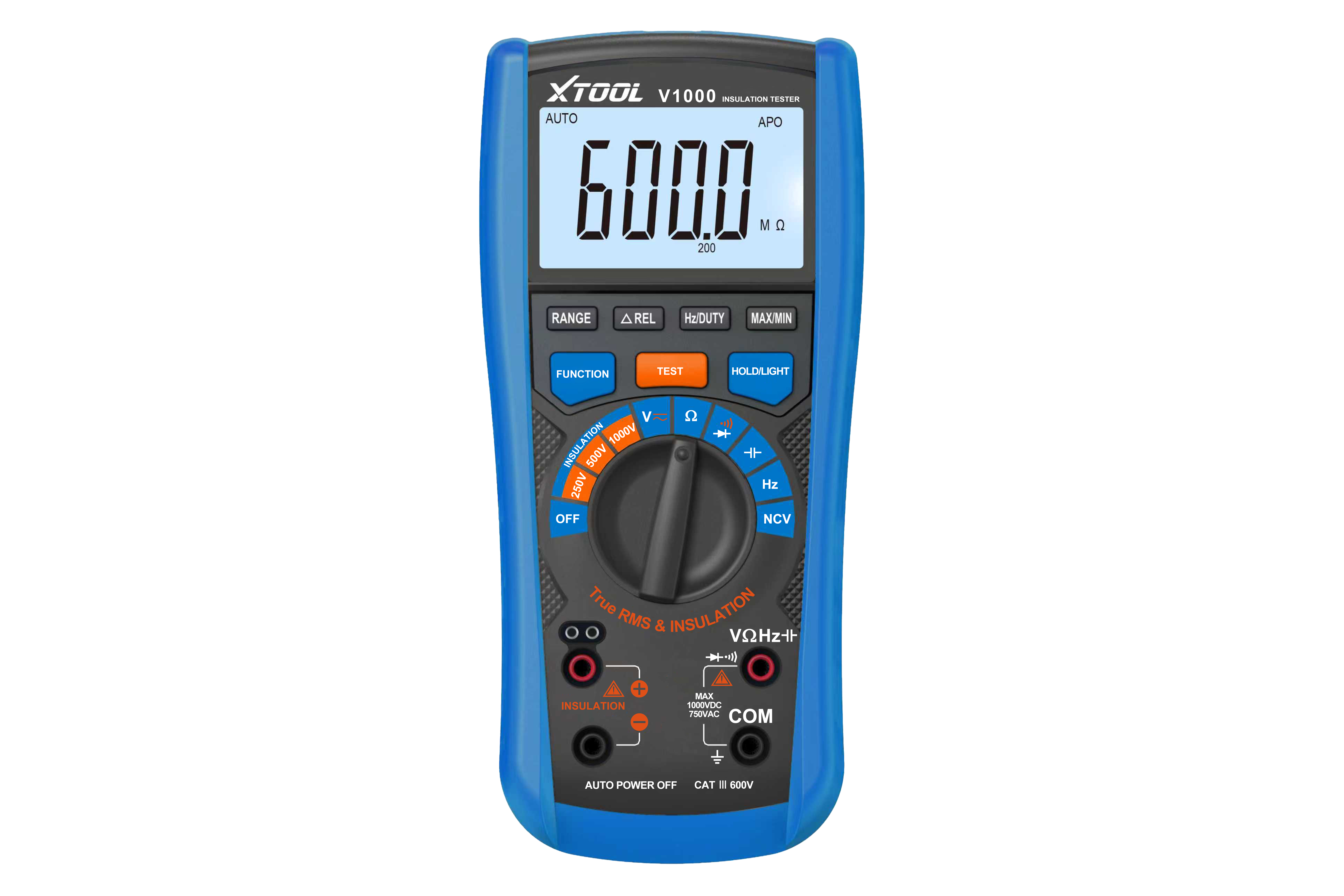

V1000 is a professional insulation multimeter designed for EV maintenance and electrical system diagnostics. Supporting insulation resistance testing up to 1000V and AC voltage measurement up to 750V, it helps technicians quickly identify electrical safety risks and improve testing efficiency.
High-Voltage Insulation Testing:Supports insulation resistance testing up to 1000V to help identify insulation faults and ensure electrical safety.
Multi-Mode Electrical Measurement：Supports AC/DC voltage, current, resistance, capacitance, frequency, diode, and continuity testing.
Intelligent Chip Control：Equipped with a high-performance integrated circuit for improved measurement accuracy, stability, and response speed.
Large LCD Display：Features a 2.9-inch high-definition screen with clear data visualization for easier reading during testing.
Remote Control Probe Operation：The remote-controlled test probe enables safer measurements in hard-to-reach areas while improving operation efficiency.
Non-Contact Voltage Detection：Supports non-contact voltage sensing to quickly identify live circuits and enhance user safety.
Automatic Measurement Functions：Provides intelligent range selection, automatic polarity recognition, and overload protection for simplified operation.
Wide Application Coverage：Suitable for EV high-voltage systems, battery packs, charging systems, motors, and general electrical maintenance scenarios.
Power SupplyCapacitance RangeDisplay | 2.9-inch LCD |
| DC Voltage Range | 0.1mV~1000V |
| AC Voltage Range | 1mV~750V |
| Resistance Range | 0.1Ω~60MΩ |
| Capacitance Range | 10pF~60mF |
| Insulation Resistance Range | Up to 1000V |
Diode Test | Supported |
Frequency Measurement | Supported |
Continuity Test | Supported |
| Power Supply | 1.5V Battery ×6 |
| Product Dimensions | 200 × 92 × 50 mm |
| Weight | Approx. 480g (Including Battery) |
| Operating Temperature | 0℃~50℃ |
