EV battery service is becoming more complex. Technicians may need to charge, discharge, balance, or test a battery during one service process. Choosing the right EV battery service equipment can make these tasks easier and more controlled. So, what should you look for when choosing a modern battery service system?
Different EV battery service tools are designed for different tasks. Battery chargers provide controlled charging. Battery balancers help reduce voltage differences between cells. Battery testers measure key battery parameters. Charge/discharge systems manage controlled energy input and output. Each tool has its own role in battery service.
EV battery chargers provide controlled power for battery packs or modules. They are useful when technicians need to charge a battery to a specific voltage or current level. Charging capability, voltage range, and output current are important factors when choosing this type of equipment.
EV battery balancers help reduce voltage differences between individual cells. Multi-channel balancing allows technicians to work with multiple cells at the same time. When choosing a battery balancer, consider the number of channels, voltage measurement resolution, balancing performance, and connection monitoring.
EV battery testing equipment provides data that helps technicians understand battery conditions. Internal resistance testing is one useful measurement for battery service. Voltage measurement accuracy and data recording can also make test results easier to review and compare.
Charge/discharge systems manage controlled energy input and output. They can be used for battery service tasks that require both charging and discharging. A system that combines these functions can reduce the need to switch between different devices.
The market offers different types of EV battery service equipment. Some products focus on battery balancing. Others are designed mainly for charging and discharging or battery testing. Before choosing equipment, it is useful to compare what each product can actually handle.
Product | Main Focus | Charging | Discharging | Balancing | Internal Resistance Testing |
L*UNCH EVB624 | Battery Balancing | ✓ | ✓ | 24 Channels | — |
A*tel MaxiEV CDT100 | Charging & Discharging | ✓ | ✓ | — | — |
H*oki BT3564 | Battery Testing | — | — | — | ✓ |
XTOOL BEC2440 | Integrated Battery Service | ✓ | ✓ | 24 Channels | ✓ |

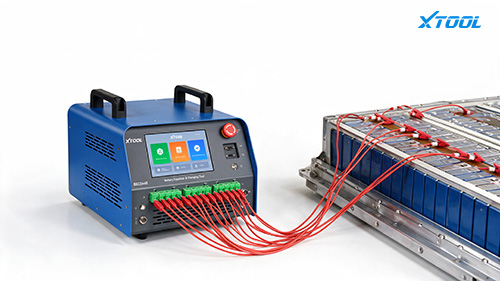

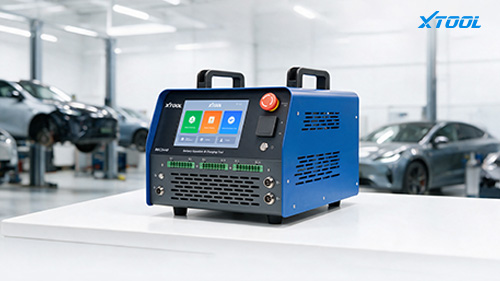

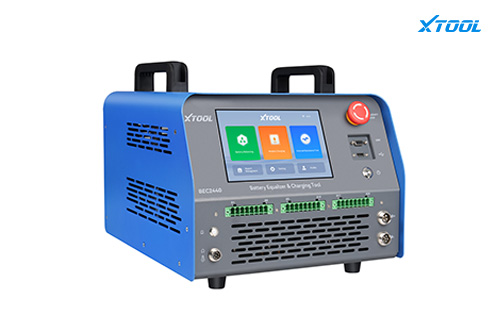

A complete battery service process may involve more than one operation. XTOOL BEC2440 combines charging, discharging, balancing, and internal resistance testing in one system. It supports 1–24 balancing channels and provides a wider range of functions for EV battery service.
BEC2440 supports battery pack and module charging from 2.5 V to 100.8 V. Under specified conditions, charging current can reach 40 A. It also supports up to 20 A single-cell constant-current discharge. For balancing, the system supports 1–24 channels, covering B1 to B24.
Battery service is not only about charging and balancing. Clear measurement data also matters. BEC2440 supports internal resistance testing with ±1% RD accuracy. Its voltage measurement resolution reaches 1 mV, helping technicians obtain more precise battery data.
More channels mean more connections to manage. BEC2440 can detect reversed, skipped, or missing connections across its 24 balancing channels. It also supports two battery temperature channels and multiple fault alerts. The system provides alerts through the screen, buzzer, and flashing red light. An emergency stop can also cut power when needed. These functions give technicians clearer information during battery service and help make the operation more controlled.
EV battery service involves more than a single task. Charging, discharging, balancing, and testing can all play a role in the service process. The right equipment can bring these tasks together and create a more complete workflow. Build a More Complete EV Battery Service Capability with XTOOL BEC2440. Contact our professional team.
