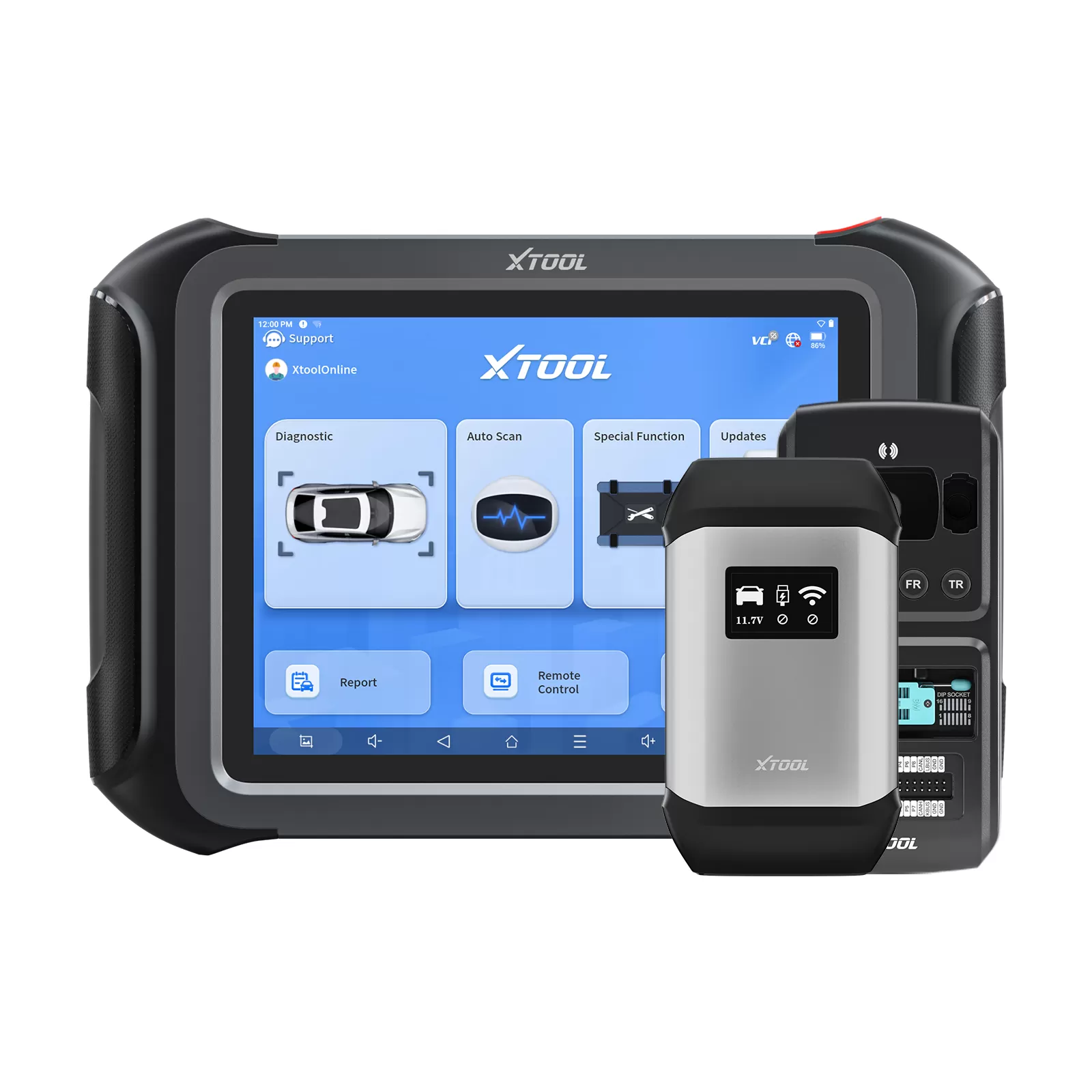

The XTOOL X100 MAX is a professional 2-in-1 automotive diagnostic and key programming tool. It combines OE-level full-system diagnosis, 42+ maintenance services, advanced ECU coding & programming, and high-performance hardware. Paired with the KC501 programmer, it supports complete key & chip operations, making it an all-in-one solution for professional technicians and locksmiths.
OE-level full-system diagnosis with complete code reading, live data, active test, and ECU information.
2-in-1 design with KC501 & EEPROM adapter for professional key programming and chip read/write operations.
42+ powerful maintenance services covering most vehicle repair and reset functions.
Advanced functions including bi-directional control, ECU coding, PMI programming, and topology mapping.
High-performance hardware: Android 10, 9.7-inch screen, 4GB+128GB, 6400mAh battery, Type-C charging.
Supports CAN FD & DoIP protocols, compatible with latest models including GM 2020+.
| Operating System | Android 10 |
| Screen Size | 9.7-inch 1024*768 |
| RAM | 2+128G |
| Battery Volume | 6400 mAh, 7.2V |
| Vehicle Connection | Wi-Fi,USB |
| Charging Methode | Type-C |
| Free Update | 2 year |
| Diagnostic System | Not full |
| OBD2 Functions | Full |
| Action Test | N |
| Online Code | Support |
| Offline Coding | Support |
| Special Functions( inside) | Support |
| PMI Programming | N |
| BMW Inspection Program | N |
| Special Functions( outside) | 42+ |
| Supported Protocols | CAN FD/DoIP |
