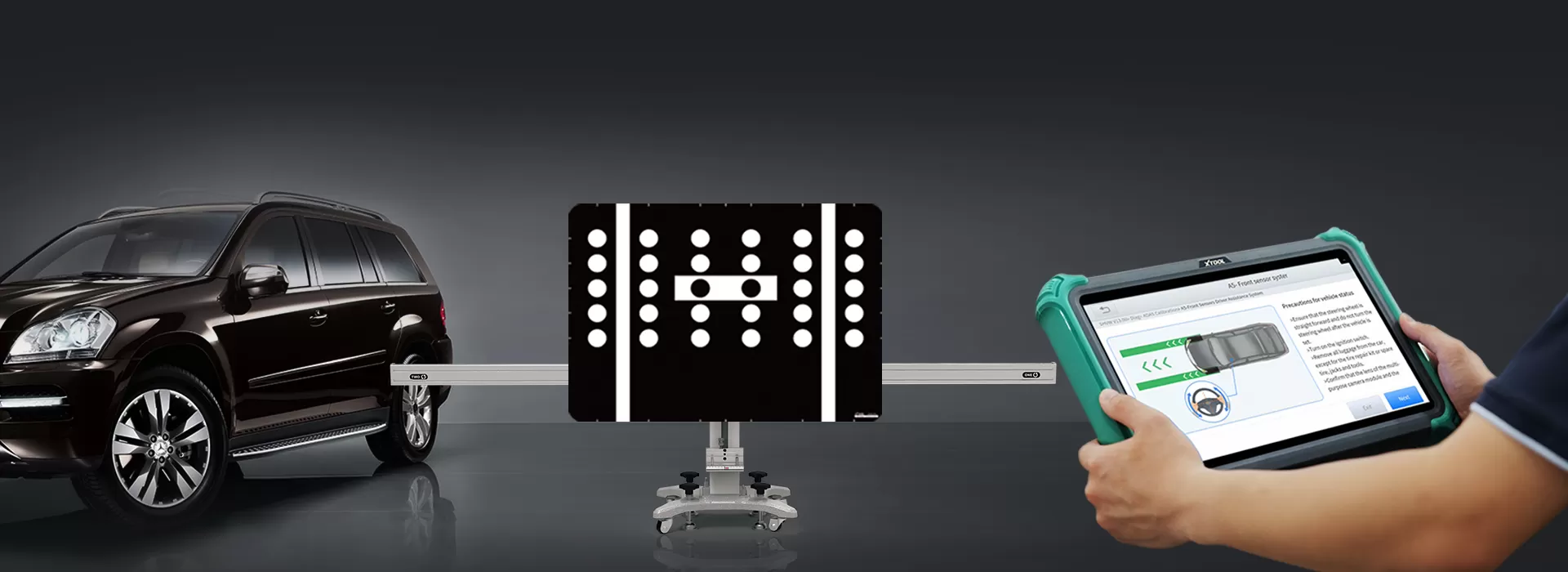

XTOOL ADAS calibration tools are designed for accurate camera, radar and sensor alignment in modern driver assistance systems. These professional ADAS calibration tools support calibration requirements for systems such as ACC, LDW, BSD and other ADAS functions across various vehicle brands. With precise positioning frames, laser alignment and measurement solutions, XTOOL helps workshops restore ADAS performance efficiently and reliably.
Proper setup is essential for accurate ADAS calibration. Follow a structured process to ensure radar, camera and sensor systems are correctly aligned.
Position the vehicle on a level surface and use the alignment tools to establish the correct vehicle reference line before calibration.
Move the ADAS calibration tool into the correct position according to vehicle manufacturer requirements and use measurement scales for accurate placement.
Set the calibration target at the specified height and ensure the target board remains parallel with the vehicle reference axis.
Use laser alignment features to adjust the target position and ensure accurate calibration conditions for camera and radar systems.
Connect an XTOOL diagnostic tablet and follow the guided procedures to complete ADAS system calibration.
Review the calibration results, confirm that parameters meet OEM requirements and save the final calibration report.

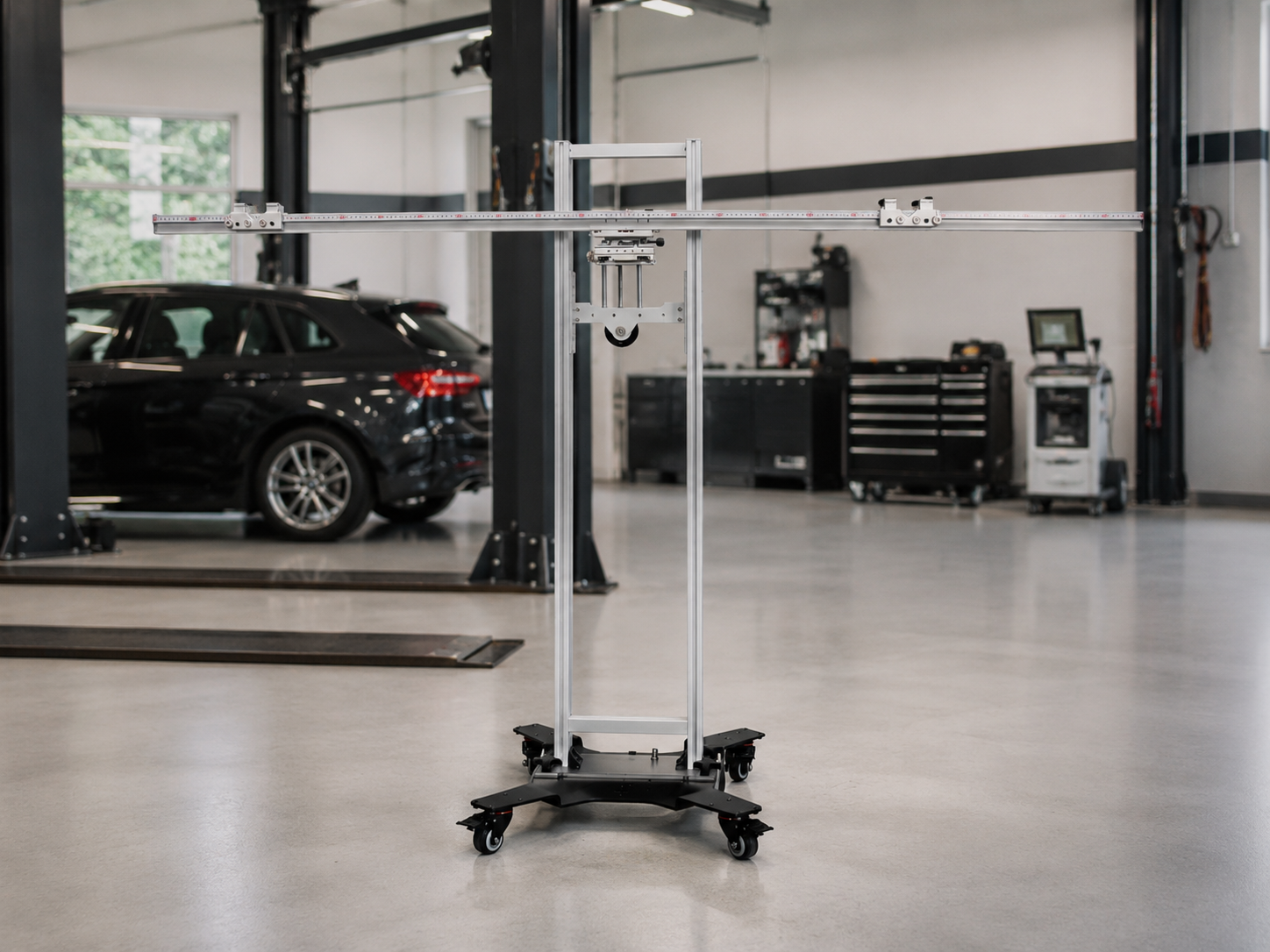

An ADAS calibration tool is equipment used to restore the correct position and accuracy of driver assistance sensors after repair, replacement or vehicle service procedures. It helps technicians calibrate systems such as cameras, radar sensors and other ADAS components to ensure proper operation.
ADAS calibration is commonly required after windshield replacement, collision repair, wheel alignment or suspension work. Systems including ACC, LDW, BSD, AVM and NVS rely on accurate sensor positioning to function correctly.
Using a professional ADAS system calibration tool allows repair shops to follow manufacturer specifications, improve calibration accuracy and maintain reliable ADAS performance.

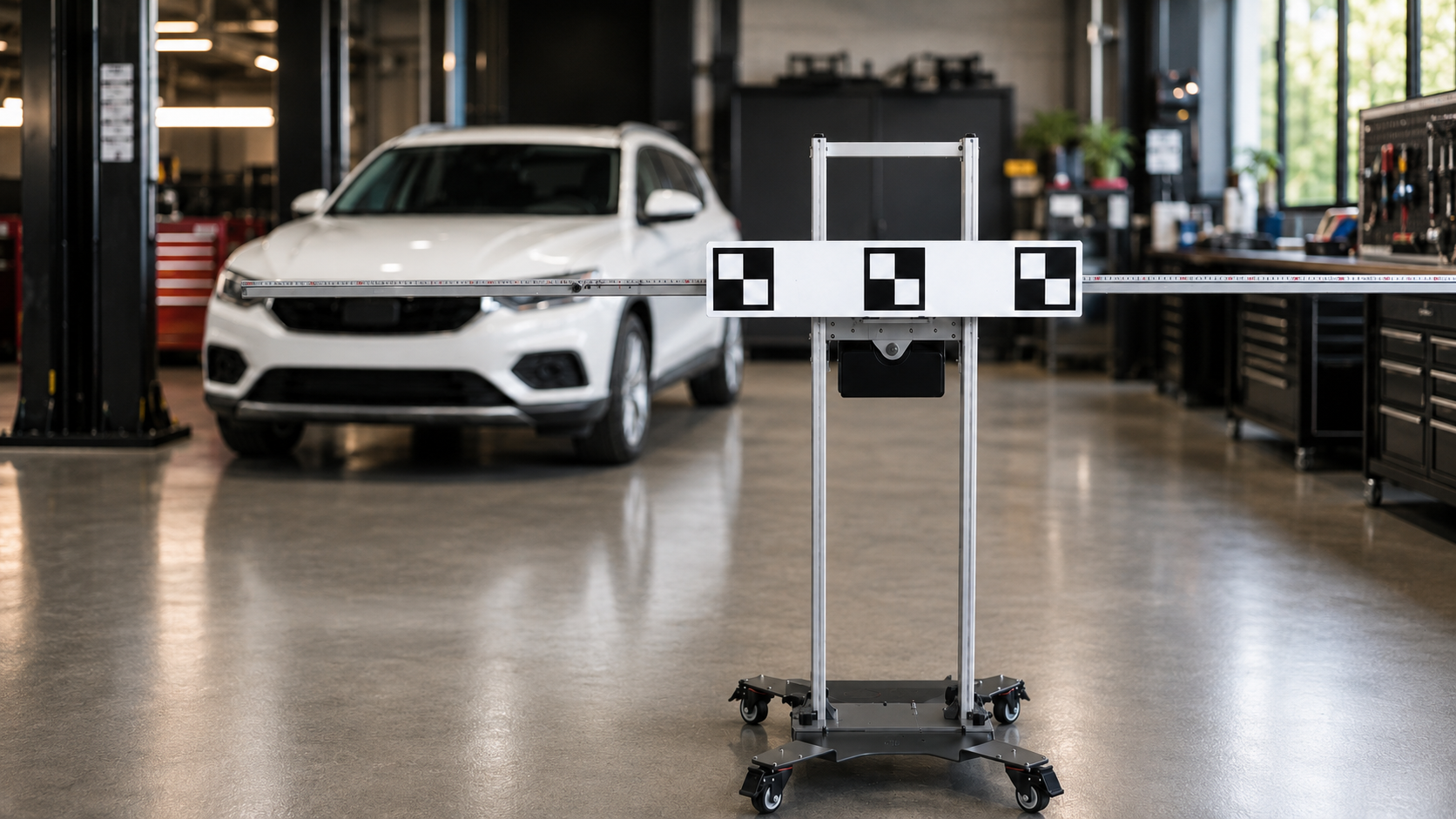

When selecting an ADAS calibration tool, repair shops should consider system coverage, calibration accuracy, setup efficiency and compatibility with diagnostic software.
Vehicle and System Coverage: Choose equipment that supports the ADAS systems and vehicle brands commonly serviced in your workshop, including functions such as ACC, LDW, BSD and camera calibration.
Calibration Accuracy: A reliable ADAS calibration tool should provide precise positioning through stable frames, measurement scales and alignment solutions.
Workflow Efficiency: Consider setup time, portability and adjustment flexibility. Efficient calibration equipment helps technicians complete more jobs while maintaining accuracy.
Target and Accessory Compatibility: Confirm whether the system includes the required targets, adapters and accessories for different vehicle applications.
Software Integration: For workshops using diagnostic tablets, ensure the calibration equipment works smoothly with compatible diagnostic software and OEM calibration procedures.
XTOOL ACT600 provides a portable ADAS calibration solution with adjustable positioning, modular structure, laser alignment and precise measurement capabilities for professional workshop applications.
They perform accurate alignment of vehicle cameras, radars, and sensors used in ADAS features such as LDW, ACC, BSD, and AVM.
