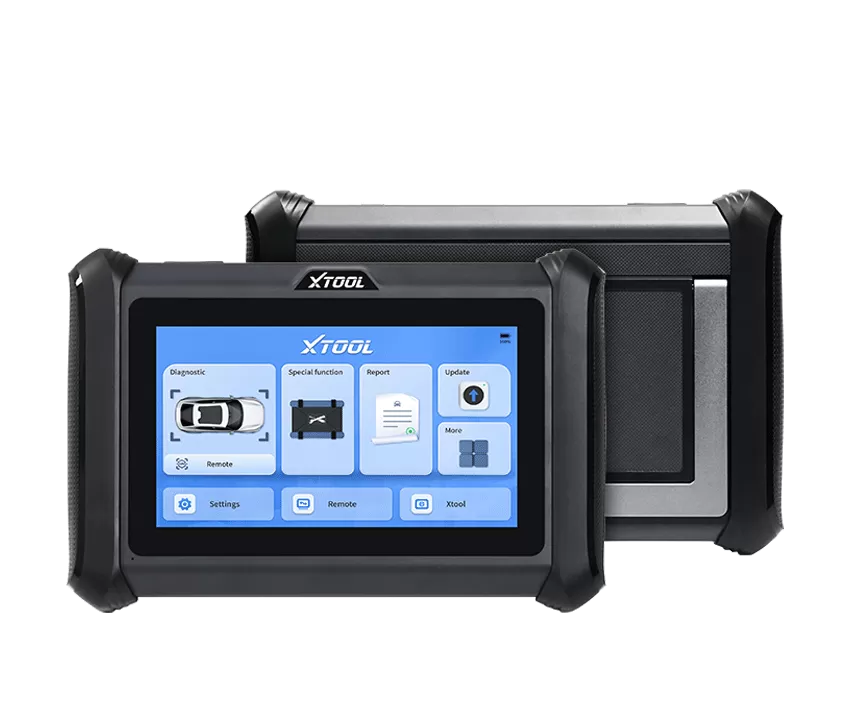

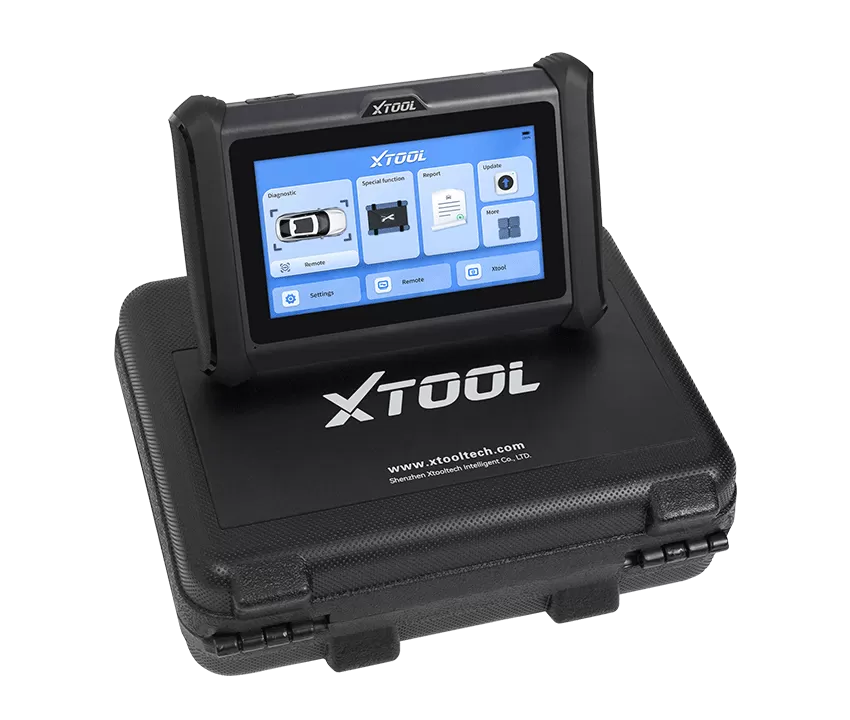

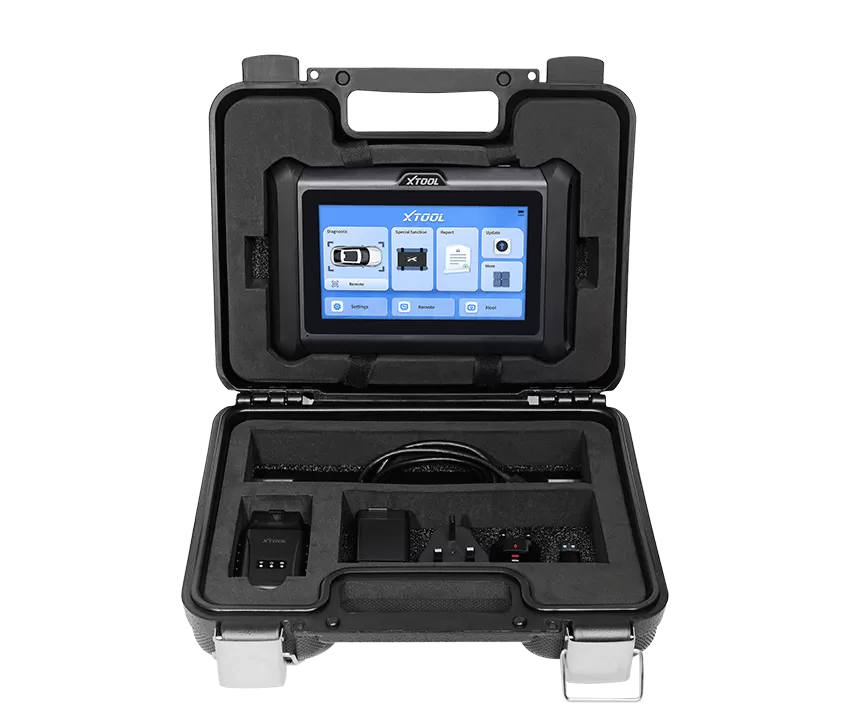

The XTOOL XT70W is a 7-inch wireless automotive diagnostic scanner with a Wi-Fi VCI, AI features, full-system diagnostics, and support for CAN FD and DoIP.
Move Around the Vehicle With a Wireless VCI
Plug the vehicle communication interface (VCI) into the OBD2 port and connect the 7-inch XT70W tablet over Wi-Fi. Carry the tablet to the area you’re inspecting while the interface stays connected to the vehicle.
AI Features and Multi-Channel Live Data
The XT70W supports AI features and full-system diagnostics. Read and clear fault codes, review ECU information and freeze-frame data, and graph multiple live data streams together. Export readings as CSV for computer review.
Run CAN FD and DoIP Diagnostics With the Wireless VCI
The XT70W’s Wi-Fi vehicle interface supports CAN FD and DoIP, so technicians can use the wireless tablet to diagnose compatible vehicle systems that communicate over either protocol.
Check Component Operation From the Tablet
Use bidirectional controls to command a supported component during troubleshooting. Observe the component or its response data to see how it behaves when commanded.
Carry Out Common Service Procedures From the Tablet
Choose from 37+ service functions for supported vehicles, including electronic parking brake service, steering angle sensor adaptation, injector coding, and diesel particulate filter regeneration.
Add Vehicle Coverage and Functions Through Updates
The XT70W includes three years of free software updates and a two-year warranty. Install updates released for the XT70W as new vehicle coverage and diagnostic functions become available.
| Processor | Quad-core processor 1.5GHz |
| OS | Android 10 |
| Display | 7'' 1024*600 |
| Camera (rear) | 8MP |
| Connectivity | USB Type-C |
| Battery | 36.5Wh(5000mAh, 7.3V≈9605mAh, 3.8V) |
| WiFi | WiFi 2.4/5 Ghz |
| Bluetooth | BLE 5.0 |
| Working Temp. | 0~40°℃ |
| Storage Temp. | -10~50℃ |
| Vehicle Volt. | 9~36V |
| Communication Method | Wi-Fi |
| Free Update | 3 YEARS |
| Warranty | 2 YEARS |
| FCA SGW License | Support (2018 and later) |
Compatible Protocols | CAN FD, DoIP |
