XT70

Smart Diagnosis System

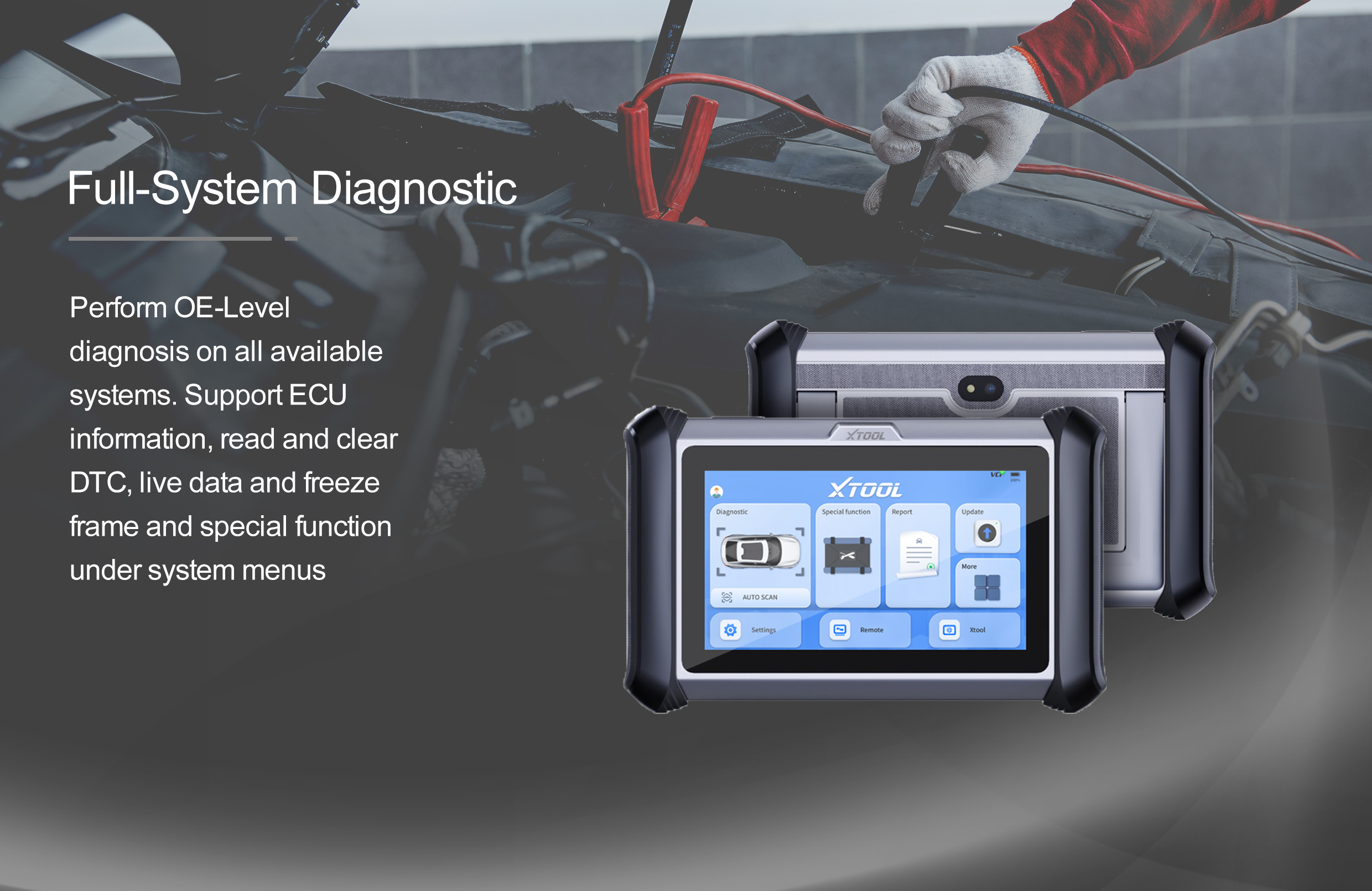

XT70 is an automotive smart diagnostic system with a 7-inch LCD display and Android 10 OS, which is designed for mechanics, electricians, and car maintenance shops. It supports automotive diagnostics for full-system, including reading ECU version information, reading fault codes, live data, and freeze frames. 30+ common special functions are supported, such as throttle matching, ABS bleed, maintenance light reset, EPB test, SAS, BMS, injector coding, DPF regeneration, and TPMS reset. 98% vehicle coverage, work on more than 100 brands, 10000 cars.

XT70

DESCRIPTION

PARAMETERS

DIAGNOSTICS

IMMOBILIZER

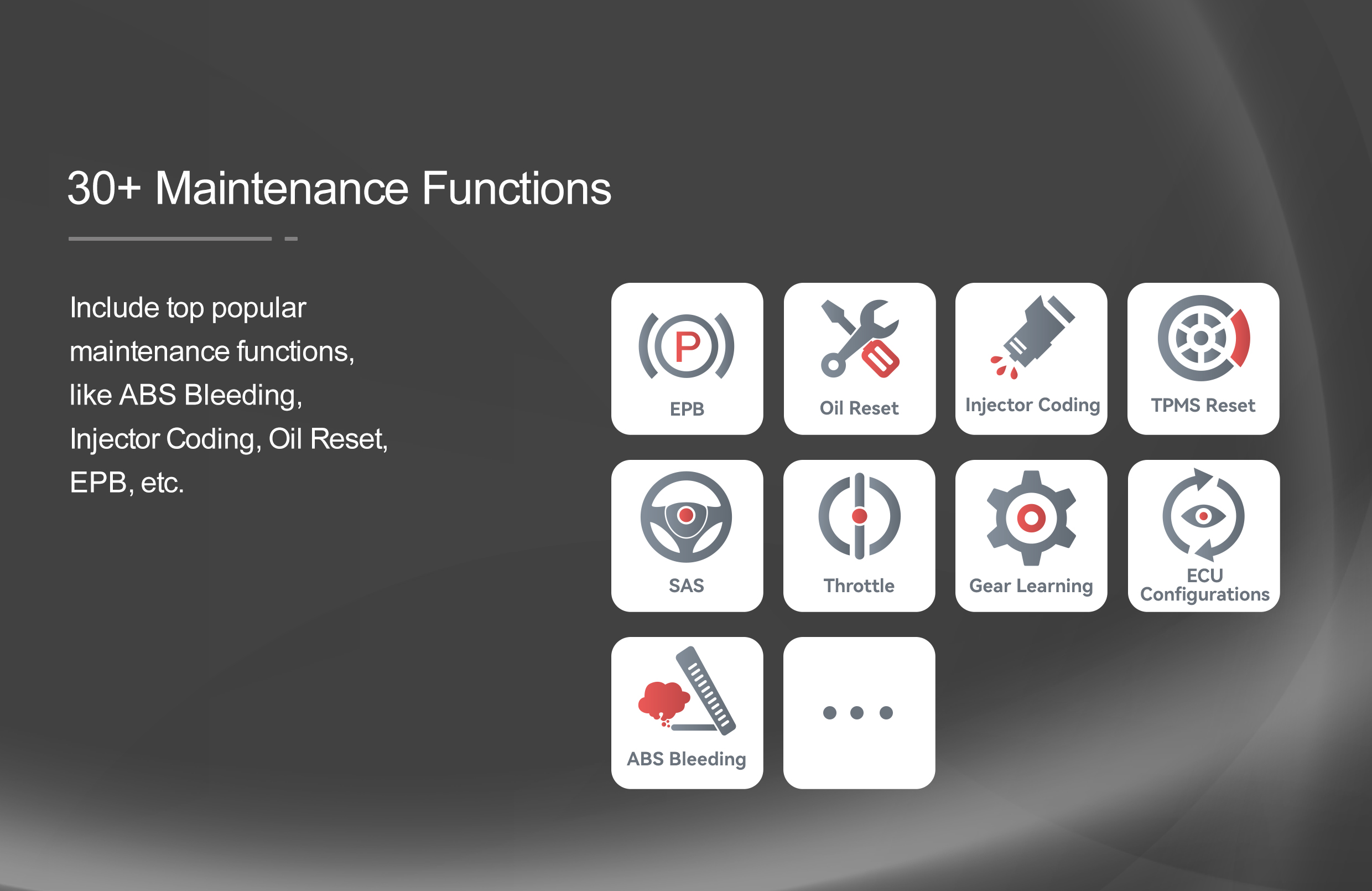

SPECIAL FUNCTION

PACKING LIST

Description

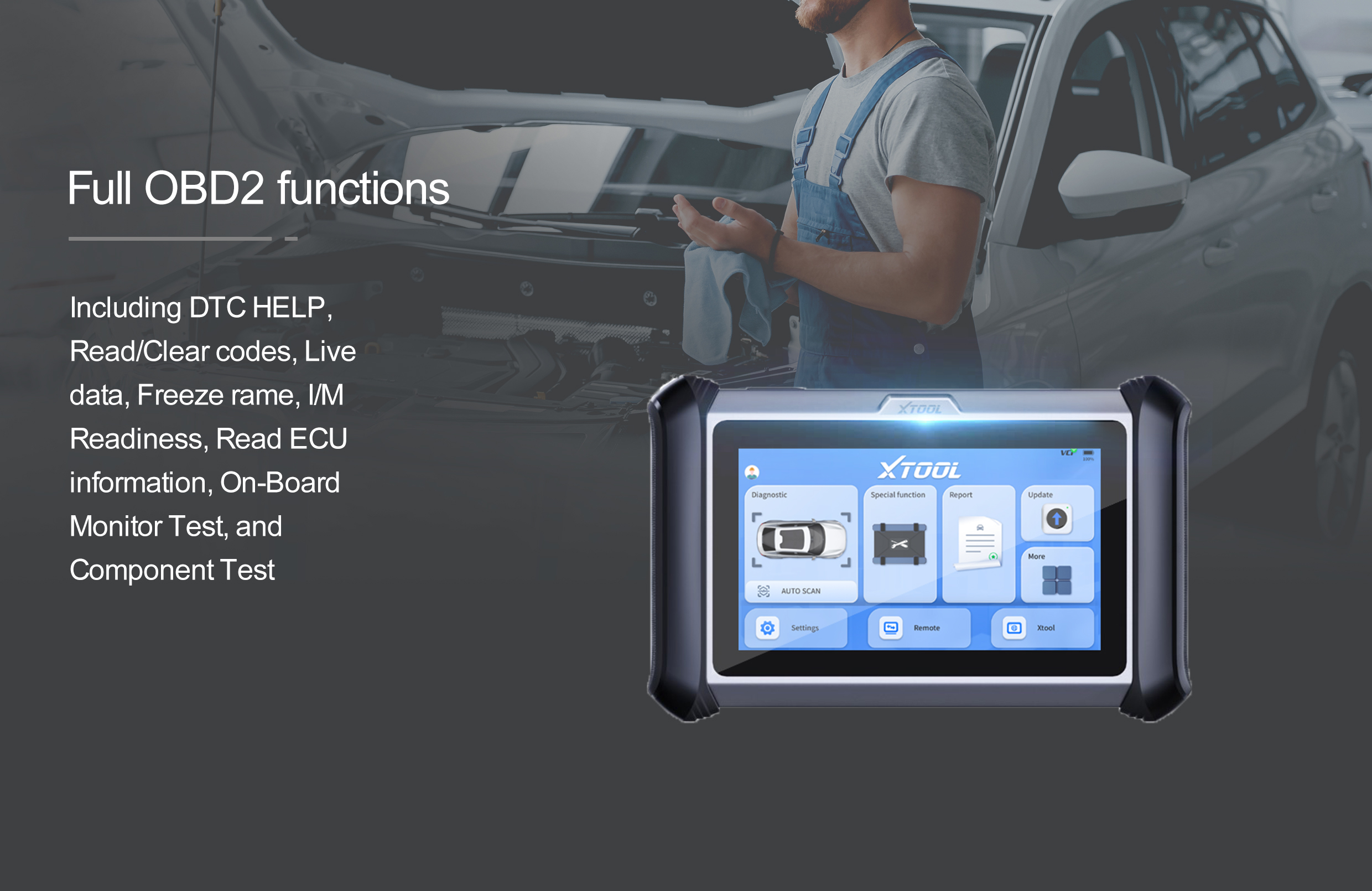

● Read/clear codes for all available systems
● Display live data in text, & graph for easy data review
● Export the data streams over a certain period of time as CSV files

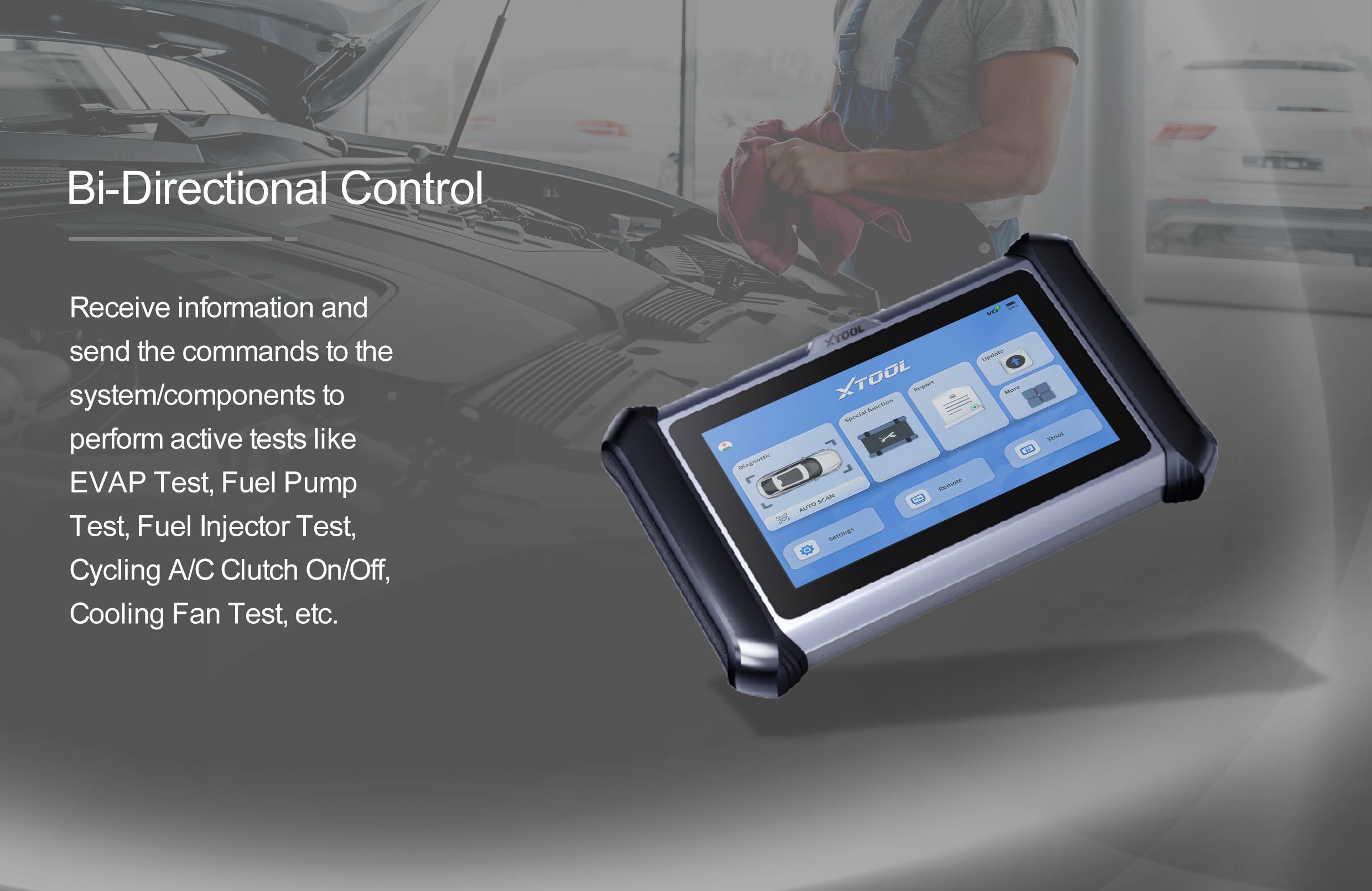

● Support active test and special functions under system menu
● Performe to bleed the brake system to restore ABS brake sensitivity.
● Clear PM(Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.
● Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity.
● Compatible with Videoscope with optional purchase.
V113 wireless Wi-Fi vehicle communication interface supporting the latest communication protocols, including CANFD and DoIP

Parameters

Operating System：Android 10
Processor：4 Core 1.50GHz
Memory：2G RAM, 64G ROM
Display：7-inch, 1024×600P
Communication Method：Wired
Connectivity：Type-C, USB 3.0
Battery：2500mAh, 7.2V
Auto Input/Output：Microphone, Speaker
Working Voltage：9-32V
Working Temperature：0 to 40℃
Storage Temperature：-10 to 50℃
Humidity：<90%
Compatible Protocol：CANFD, DOIP
Dimension (L×W×H)：234.6×31.0×149.0 mm
Camera：8.0 Megapixel, AF with Flashlight

Accessories

Color Carton
Packing List
Certificate of Quality
Tool Case
Quick Start Guide

Main Units

P720 Tablet
USB Cable
Charger for Tablet
Charger US Adapter
Charger UK Adapter
Charger EU Adapter

Test Connectors

VGA to OBD II Main Cable

DIAGNOSIS--ACURA
DIAGNOSIS--AUDI
DIAGNOSIS--AUSFORD
DIAGNOSIS--BAOJUN
DIAGNOSIS--BJBENZ
DIAGNOSIS--BYD
DIAGNOSIS--CHANGHE
DIAGNOSIS--CHRYSLER
DIAGNOSIS--DAEWOO
DIAGNOSIS--DAIHATSU
DIAGNOSIS--EURFORD
DIAGNOSIS--FIAT
DIAGNOSIS--GM
DIAGNOSIS--HOLDEN
DIAGNOSIS--HONDA
DIAGNOSIS--HYUNDAI
DIAGNOSIS--INFINITI
DIAGNOSIS--ISUZU
DIAGNOSIS--JAC
DIAGNOSIS--JAGUAR
DIAGNOSIS--GAC GONGW
DIAGNOSIS--KIA
DIAGNOSIS--LANCIA
DIAGNOSIS--LANDROVER
DIAGNOSIS--LEXUS
DIAGNOSIS--LIFAN
DIAGNOSIS--LUXGEN
DIAGNOSIS--MAZDA
DIAGNOSIS--MIT
DIAGNOSIS--NISSAN
DIAGNOSIS--OBDII
DIAGNOSIS--OPEL
DIAGNOSIS--PERODUA
DIAGNOSIS--PORSCHE
DIAGNOSIS--PROTON
DIAGNOSIS--RENAULT
DIAGNOSIS--ROEWE
DIAGNOSIS--SAAB
DIAGNOSIS--SEAT
DIAGNOSIS--SKODA
DIAGNOSIS--MG
DIAGNOSIS--SQTYWL
DIAGNOSIS--SSANGYONG
DIAGNOSIS--SUBARU
DIAGNOSIS--SUZUKI
DIAGNOSIS--TLISUZU
DIAGNOSIS--TOYOTA
DIAGNOSIS--VOLVO
DIAGNOSIS--VW
DIAGNOSIS--ZHONGHUA
DIAGNOSIS--MINI
DIAGNOSIS--SCION
DIAGNOSIS--BENTLEY
DIAGNOSIS--ROMEO
DIAGNOSIS--USAFORD
DIAGNOSIS--SMART
DIAGNOSIS--TRANSPORTER
DIAGNOSIS--GREATWALL
DIAGNOSIS--GEELY
DIAGNOSIS--MAXUS
DIAGNOSIS--BRILLIANCE
DIAGNOSIS--CHERY
DIAGNOSIS--MAYBACH
DIAGNOSIS--ABARTH
DIAGNOSIS--BENZ
DIAGNOSIS--VAUXHALL
DIAGNOSIS--ROLLS
DIAGNOSIS--BUICK
DIAGNOSIS--CADILLAC
DIAGNOSIS--CHEVROLET
DIAGNOSIS--GMC
DIAGNOSIS--HUMMER
DIAGNOSIS--SATURN
DIAGNOSIS--BUGATTI
DIAGNOSIS--CVVW
DIAGNOSIS--LAMBORGHINI
DIAGNOSIS--DODGE
DIAGNOSIS--MASERATI
DIAGNOSIS--GAZ
DIAGNOSIS--UAZ
DIAGNOSIS--RENAULTSAM
DIAGNOSIS--DACIA
DIAGNOSIS--LINCOLN
DIAGNOSIS--JEEP
DIAGNOSIS--Diagnosis-Demo
DIAGNOSIS--Astonmartin
DIAGNOSIS--Ferrari
DIAGNOSIS--Hyundai CV
DIAGNOSIS--BMW
DIAGNOSIS--NISSANGTR
DIAGNOSIS--PEUGEOT
DIAGNOSIS--CITROEN
DIAGNOSIS--DFPEUGEOT
DIAGNOSIS--DFCITROEN
DIAGNOSIS--POLESTAR
DIAGNOSIS--YQJC

IMMOBILIZER--JETOUR
IMMOBILIZER--DAYUN
IMMOBILIZER--SKYWORTH
IMMOBILIZER--RADAR
IMMOBILIZER--LIVAN

SPECIAL FUNCTION--TPMS RESET
SPECIAL FUNCTION--AIRBAG RESET
SPECIAL FUNCTION--ECU CONFIGURATIONS
SPECIAL FUNCTION--SUSPENSION
SPECIAL FUNCTION--DPF CONFIG
SPECIAL FUNCTION--BMS RESET
SPECIAL FUNCTION--HEADLIGHT
SPECIAL FUNCTION--THROTTLE
SPECIAL FUNCTION--EPBCONFIG
EPS--EPSCONFIG
SPECIAL FUNCTION--OIL RESET
SPECIAL FUNCTION--TRANSPORT MODE
SPECIAL FUNCTION--TIRE UPGRADE
SPECIAL FUNCTION--GEARBOX MATCH
SPECIAL FUNCTION--SEAT CALIBRATION
SPECIAL FUNCTION--Injector Coding Config
SPECIAL FUNCTION--WINDOWS INITIALIZATION
SPECIAL FUNCTION--GEAR LEARNING
SPECIAL FUNCTION--ABS BLEEDING
SPECIAL FUNCTION--ELECTRONIC PUMP ACTIVATION
SPECIAL FUNCTION--TPMS RESET(EU)
SPECIAL FUNCTION--LANGUAGE CHANGE
SPECIAL FUNCTION--STOP/START RESET
SPECIAL FUNCTION--A/F RESET
SPECIAL FUNCTION--CYLINDER
SPECIAL FUNCTION--ADAS
SPECIAL FUNCTION--TPMSRESET(US)
SPECIAL FUNCTION--TPMSRESET(JP)
SPECIAL FUNCTION--TPMSRESET(KR)
SPECIAL FUNCTION--TPMSRESET(AU)
SPECIAL FUNCTION--SPEED
SPECIAL FUNCTION--CLUTCH
SPECIAL FUNCTION--SRS
SPECIAL FUNCTION--EGR
SPECIAL FUNCTION--FRM
SPECIAL FUNCTION--VGT
SPECIAL FUNCTION--HVBATTERY
SPECIAL FUNCTION--ACRELEARN
SPECIAL FUNCTION--RAINLIGHT
SPECIAL FUNCTION--CONTROLUNIT

Models

XT70

Smart Diagnosis System

XT70

Description

● Read/clear codes for all available systems

● Display live data in text, & graph for easy data review

● Export the data streams over a certain period of time as CSV files

● Support active test and special functions under system menu

● Performe to bleed the brake system to restore ABS brake sensitivity.

● Clear PM(Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.

● Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity.

● Compatible with Videoscope with optional purchase.

V113 wireless Wi-Fi vehicle communication interface supporting the latest communication protocols, including CANFD and DoIP

Parameters

Operating System：Android 10

Processor：4 Core 1.50GHz

Memory：2G RAM, 64G ROM

Display：7-inch, 1024×600P

Communication Method：Wired

Connectivity：Type-C, USB 3.0

Battery：2500mAh, 7.2V

Auto Input/Output：Microphone, Speaker

Working Voltage：9-32V

Working Temperature：0 to 40℃

Storage Temperature：-10 to 50℃

Humidity：<90%

Compatible Protocol：CANFD, DOIP

Dimension (L×W×H)：234.6×31.0×149.0 mm

Camera：8.0 Megapixel, AF with Flashlight

Accessories

Main Units

Test Connectors
