Flagship Smart Diagnosis System

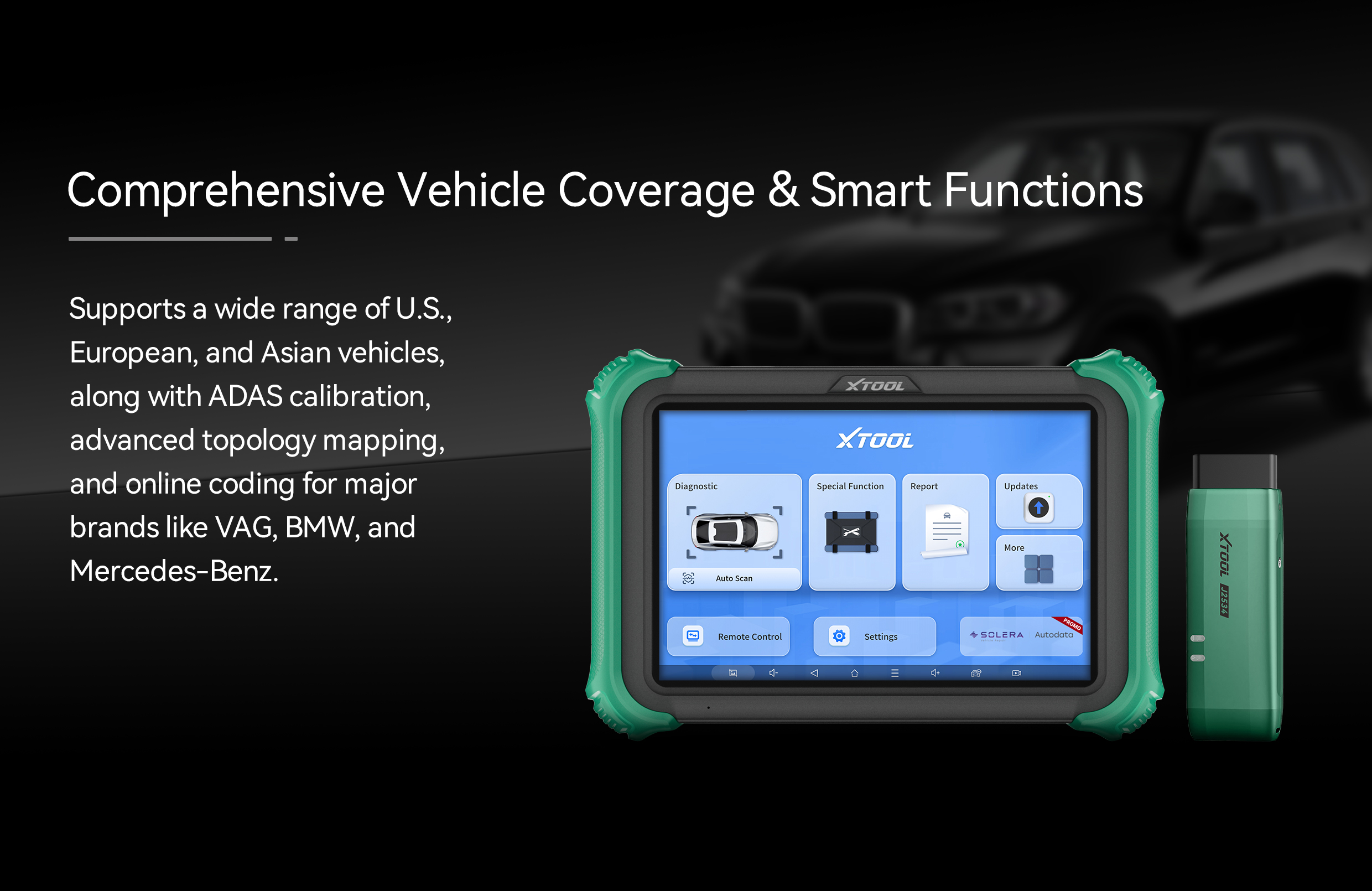

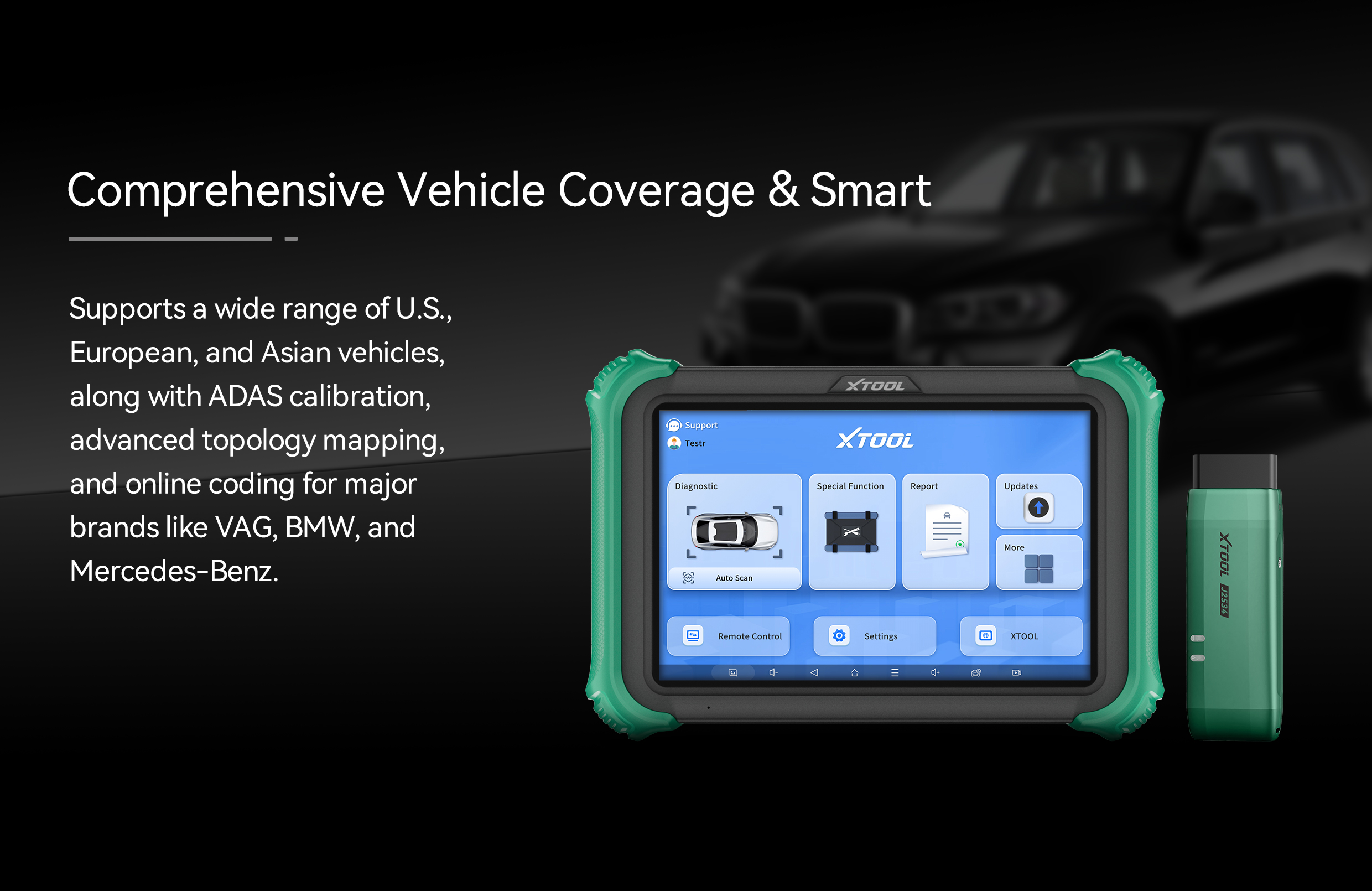

COMPASS is your ultimate diagnostic companion, designed for efficiency and precision. Featuring acrystal-clear 10.1" display and powerful performance, it ensures seamless operation for professionals. WithJ2534 support (optional) , it enables OEM software connectivity for advanced diagnostics and programmingCovering a wide range of vehicles, it offers topology mapping, ADAS calibration, and online coding. Plus, withwireless charging and long battery life, you can work without limits. COMPASS - smart, powerful, and built forthe future of automotive diagnostics!

COMPASS / COMPASS MASTER

DESCRIPTION

PARAMETERS

DIAGNOSTICS

SPECIAL FUNCTION

PACKING LIST

MANUAL

FLYER

Description

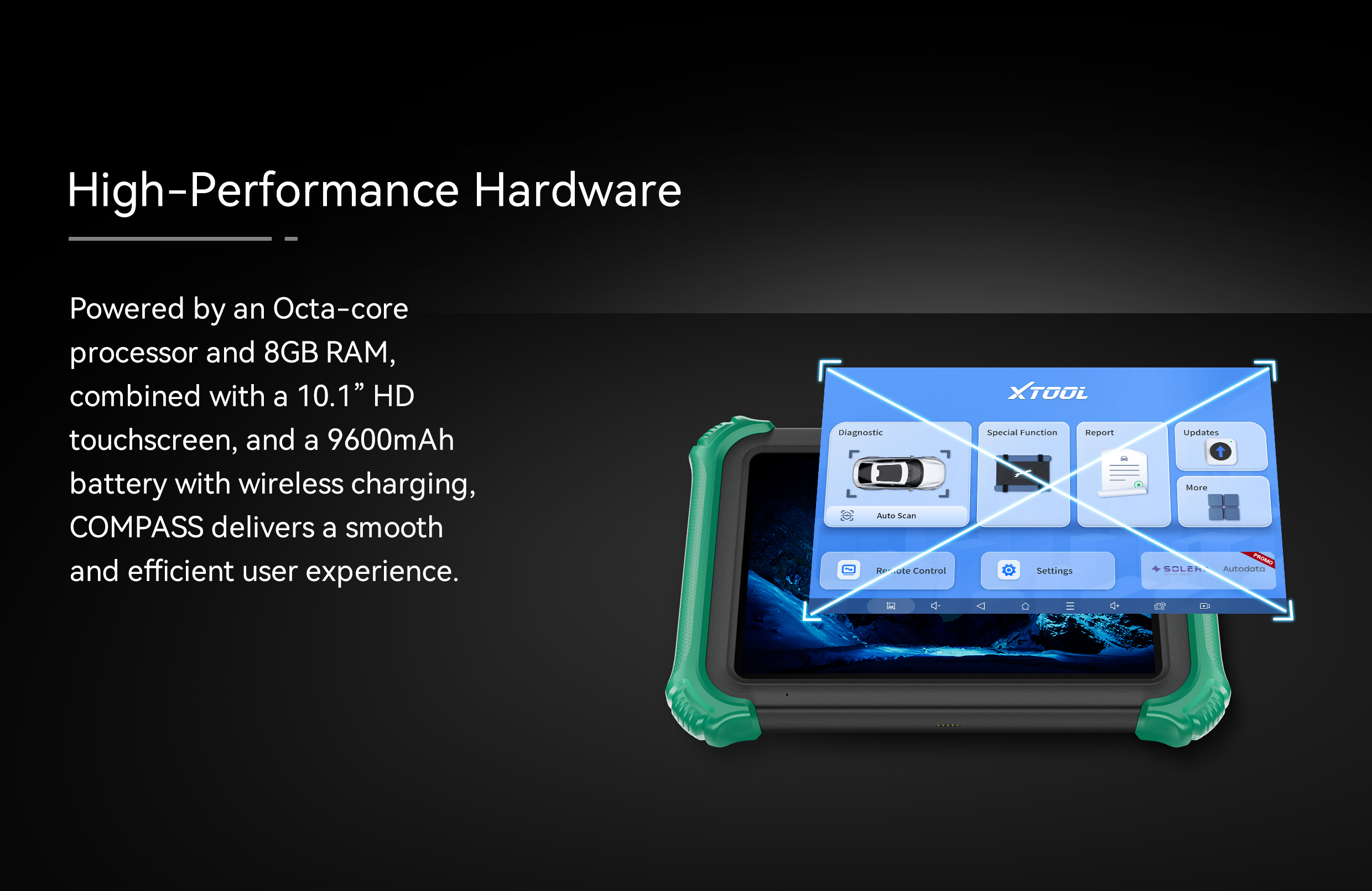

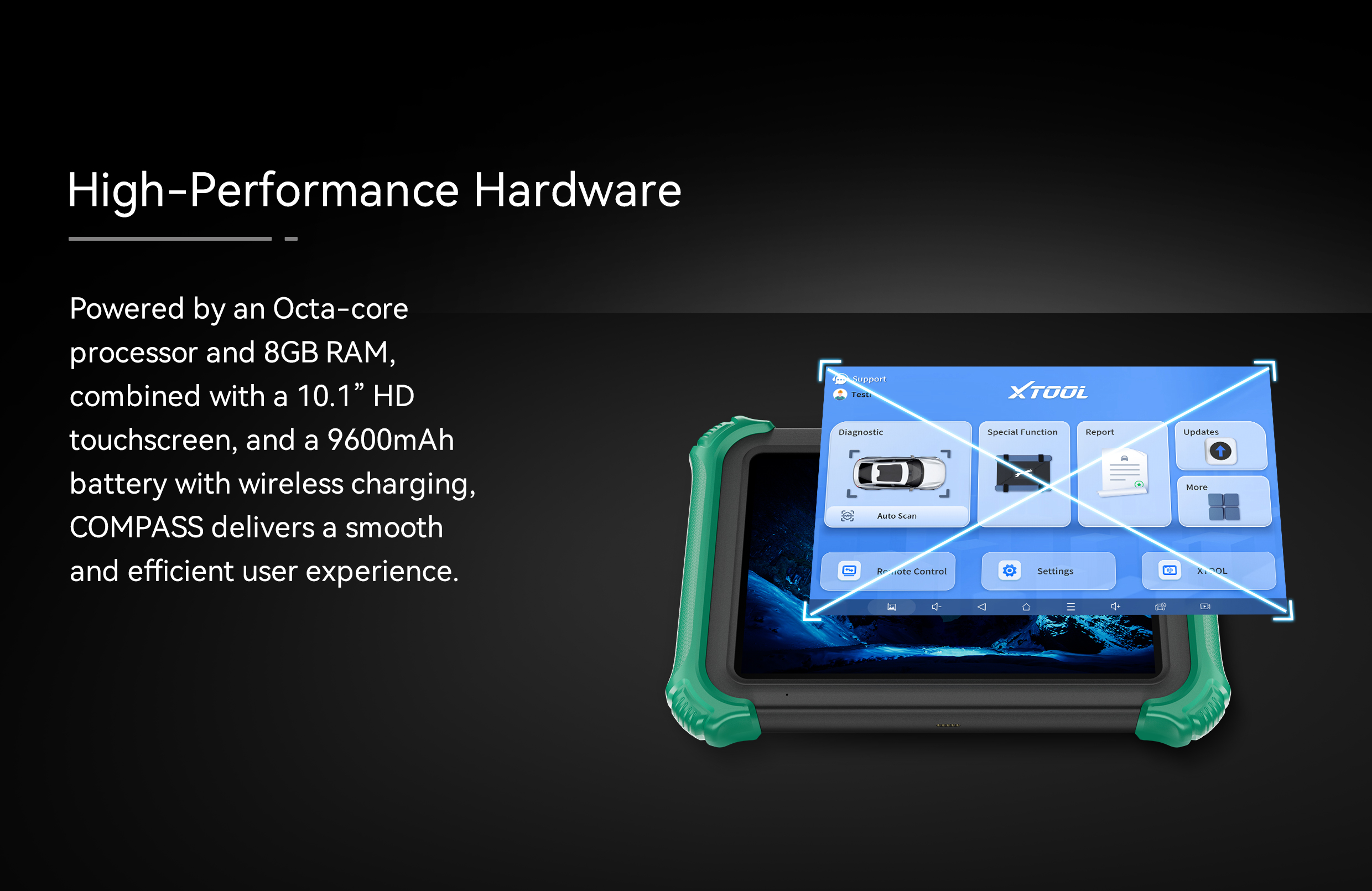

● Features a 10.1-inch display with a resolution of 1920 x 1200 and runs on the Android 10.0 operating system.
● Powered by an octa-core processor (2.2GHz + 1.8GHz) and comes with 8GB RAM and 128GB of internal storage.
● Dual Wi-Fi connectivity allows simultaneous connections to the internet and the VCI.
● Equipped with a 9600mAh, 7.2V high-capacity battery for extended working hours.
● Includes an 8MP rear camera for capturing diagnostic or vehicle condition images.
● Supports all standard diagnostic protocols along with DoIP and CANFD for advanced vehicle communication.

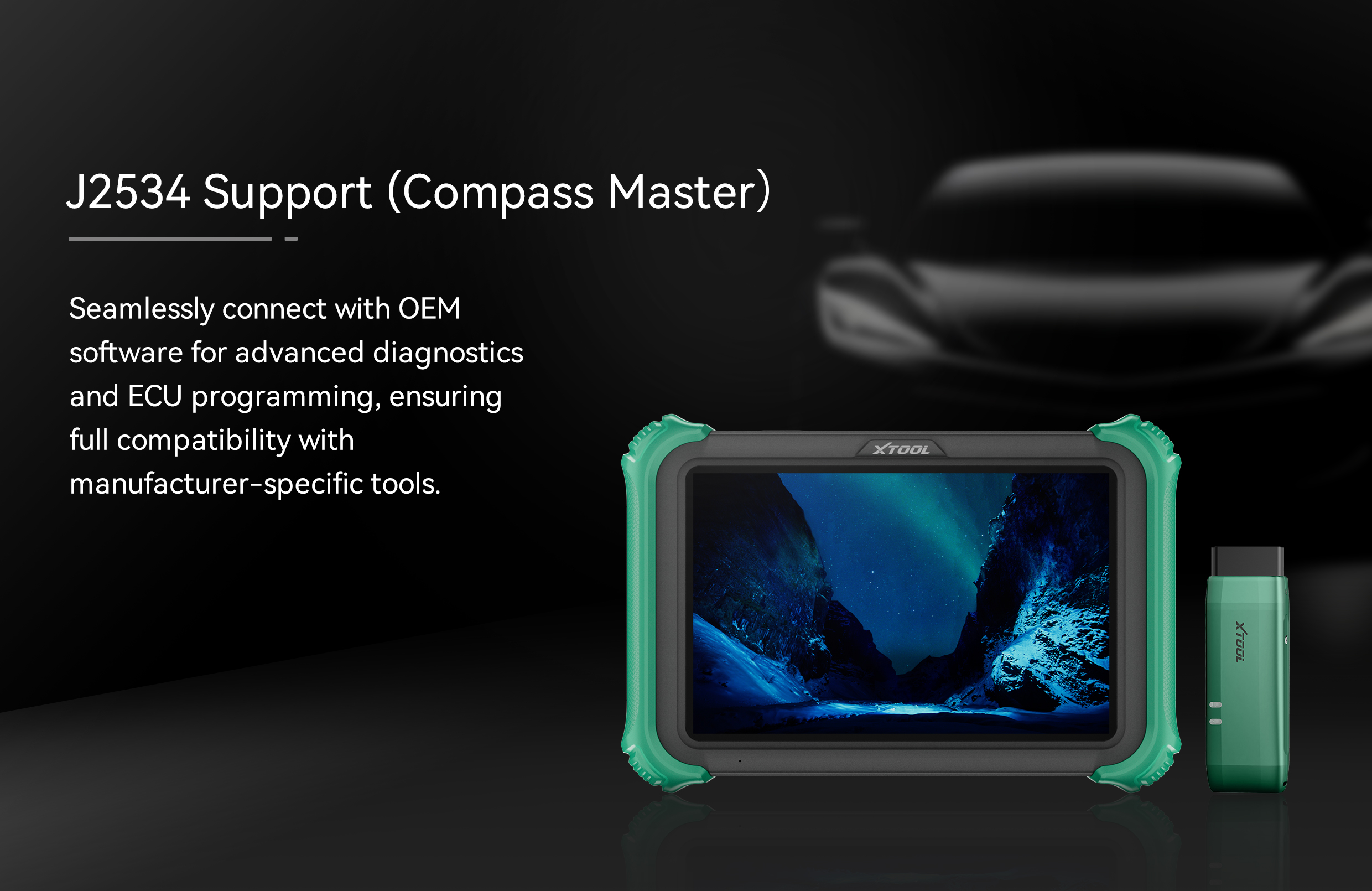

● SAE J2534 compatibility is available (optional) for OEM software connectivity.(COMPASS MASTER)
● Provides extensive vehicle coverage, including U.S., European, and Asian models.
● Features a topology module mapping function with color-coded system status displays (on supported vehicles).
● Supports offline programming for Ford, Lincoln, and Mazda, as well as online coding and programming for VAG, BMW, and Mercedes-Benz.
● Enables ADAS system calibrations for both cameras and radar-based systems.
● Comes with OBDI connectors and a convenient wireless charging dock.
● Generates enhanced diagnostic reports, including PreSCAN and PostSCAN documentation.
● Includes a 3-year software subscription for continuous updates and improvements.
● Offers access to a comprehensive maintenance documentation library (available as an additional paid option).
● Fully integrated with AutoAuth™ to provide seamless access to FCA's Secure Gateway (SGW).

Parameters

Operating System：Android 10.0
Communication Method：Dual Wi-Fi, USB
Processor：2.2GHz+1.8GHz Octa-core Processor
Connectivity：Type-C
Memory：8G+128G
Working Voltage：9-36V
Display：10.1-inch, 1920×1200
Battery：6400 mAh, 7.2V
Camera：8MP rear
Working Temperature：0 to 40℃
Auto Input/Output：Microphone, Speaker
Storage Temperature：-40 to 60℃
Compatible Protocol：CANFD, DoIP
