XT90

Smart Diagnostic System

XT90 is an advanced automotive diagnostic system featuring a large 9.7-inch screen and dual WIFI modules for stable data transfer between the tablet and VCI. It is designed for mechanics, electricians, and automotive repair stores, it provides full-system automotive diagnostics, live data, Bi-directional control tests, ECU coding and programming. XT90 also supports 42 standard special functions such as throttle adaptation, ABS bleeding, service light reset, EPB test, SAS calibration, BMS reset, injector coding, DPF regeneration, and TPMS reset. With 98% vehicle coverage and compatibility with over 100 brands and 10,000 car models, the XT90 is a versatile and reliable tool for any automotive professional.

XT90

DESCRIPTION
PARAMETERS
DIAGNOSTICS
IMMOBILIZER
SPECIAL FUNCTION
PACKING LIST
FLYER

Description

  • ● 9.7-inch high-resolution, responsive touchscreen display, 4-core processor with 128 GB storage.
  • ● High-performance CPU with Android 10 OS, and dual WIFI modules, bring you a smooth and hassle-free diagnostic experience.
  • ● Extensive vehicle coverage for U.S., European, Asian and Chinese vehicle makes;take the lead in vehicle model and function coverage.

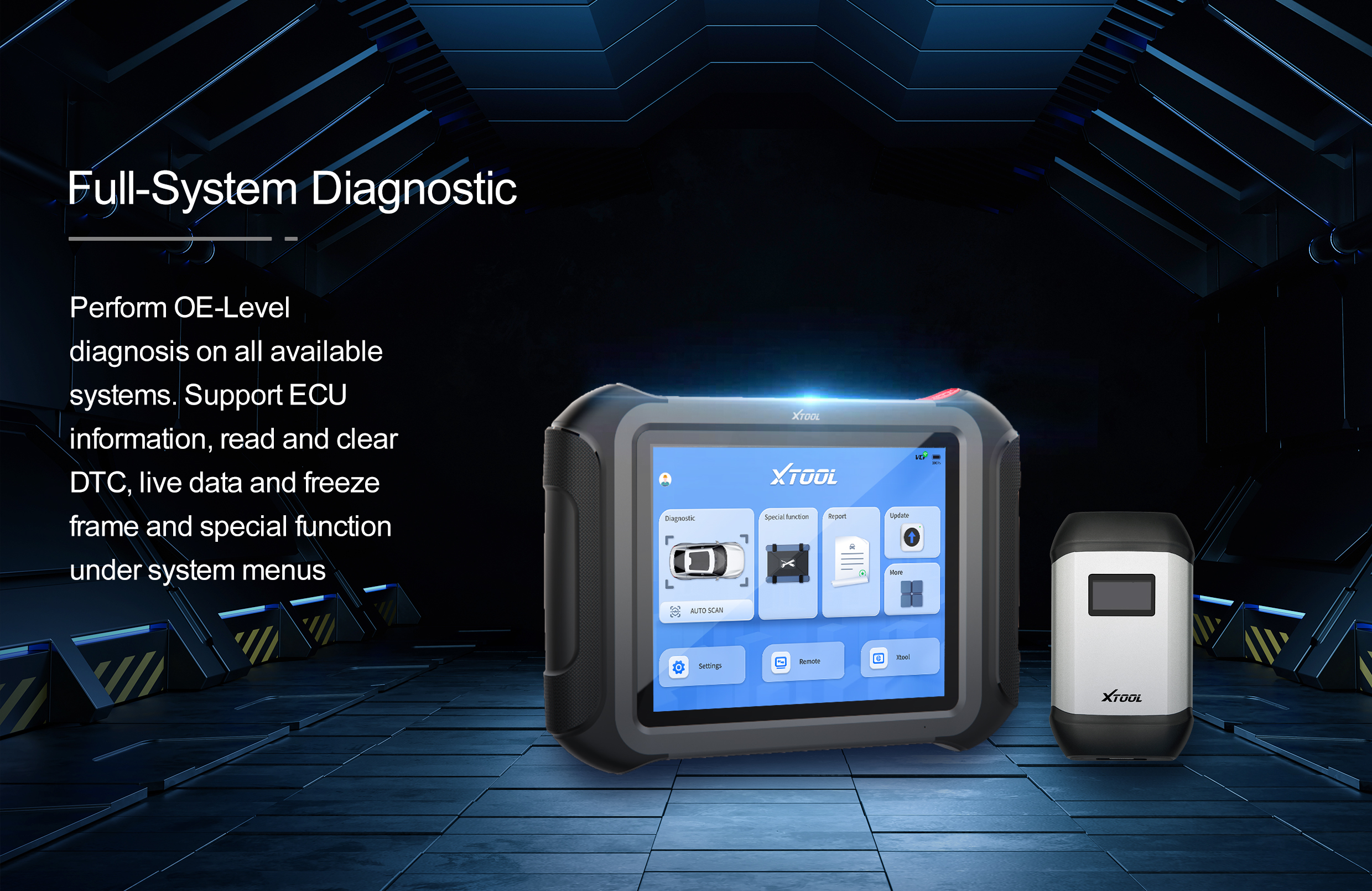

  • ● Exceptional OE-Level system coverage for all electronic systems.
  • ● Read/Erase DTC, live data, ECU information, bi-directional control, and special function capabilities

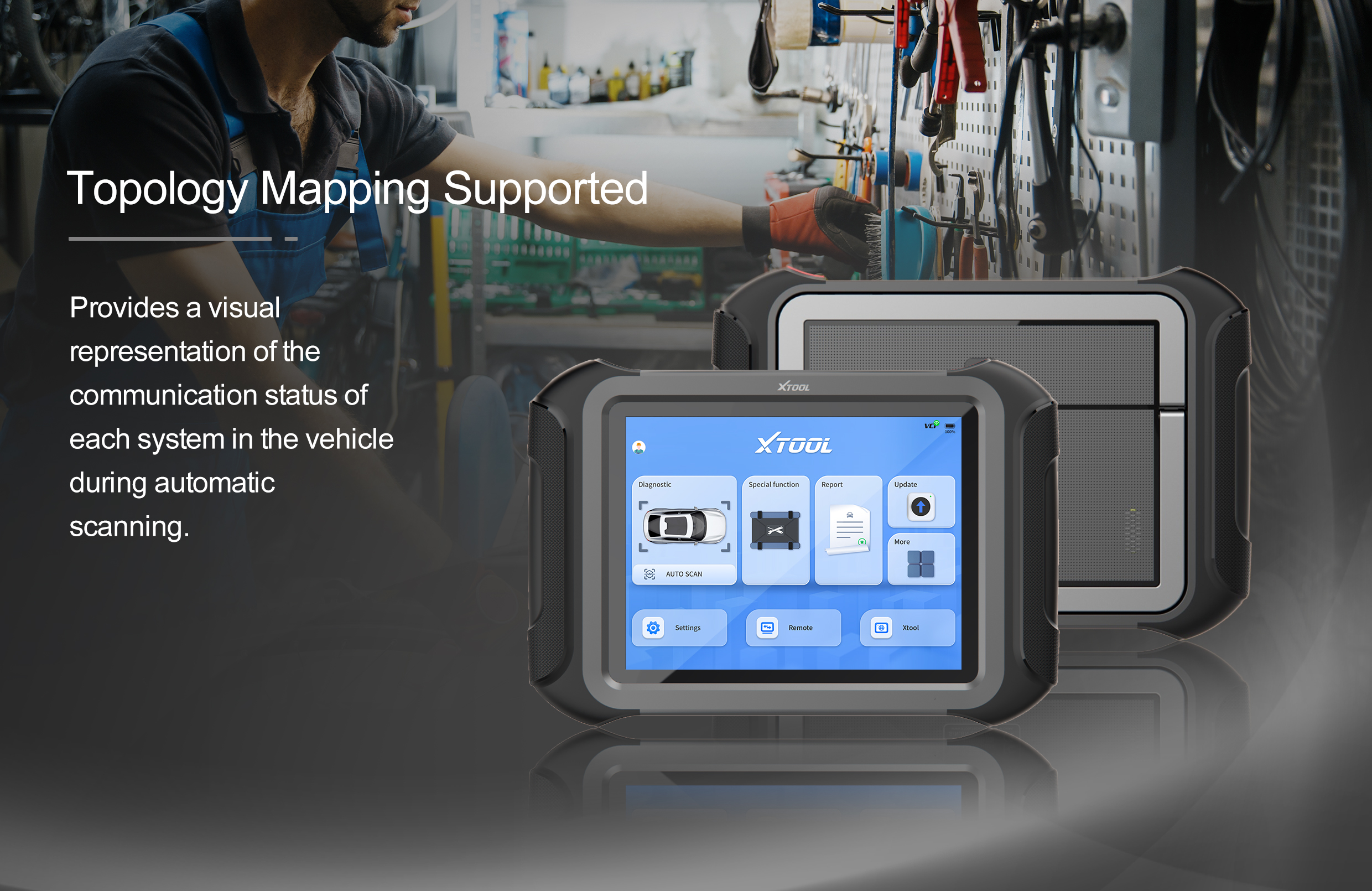

  • ● Topology Mapping provides a visual representation of the communication status of each system in the vehicle during automatic scanning.
  • ● Advanced 42 relearn and reset services.

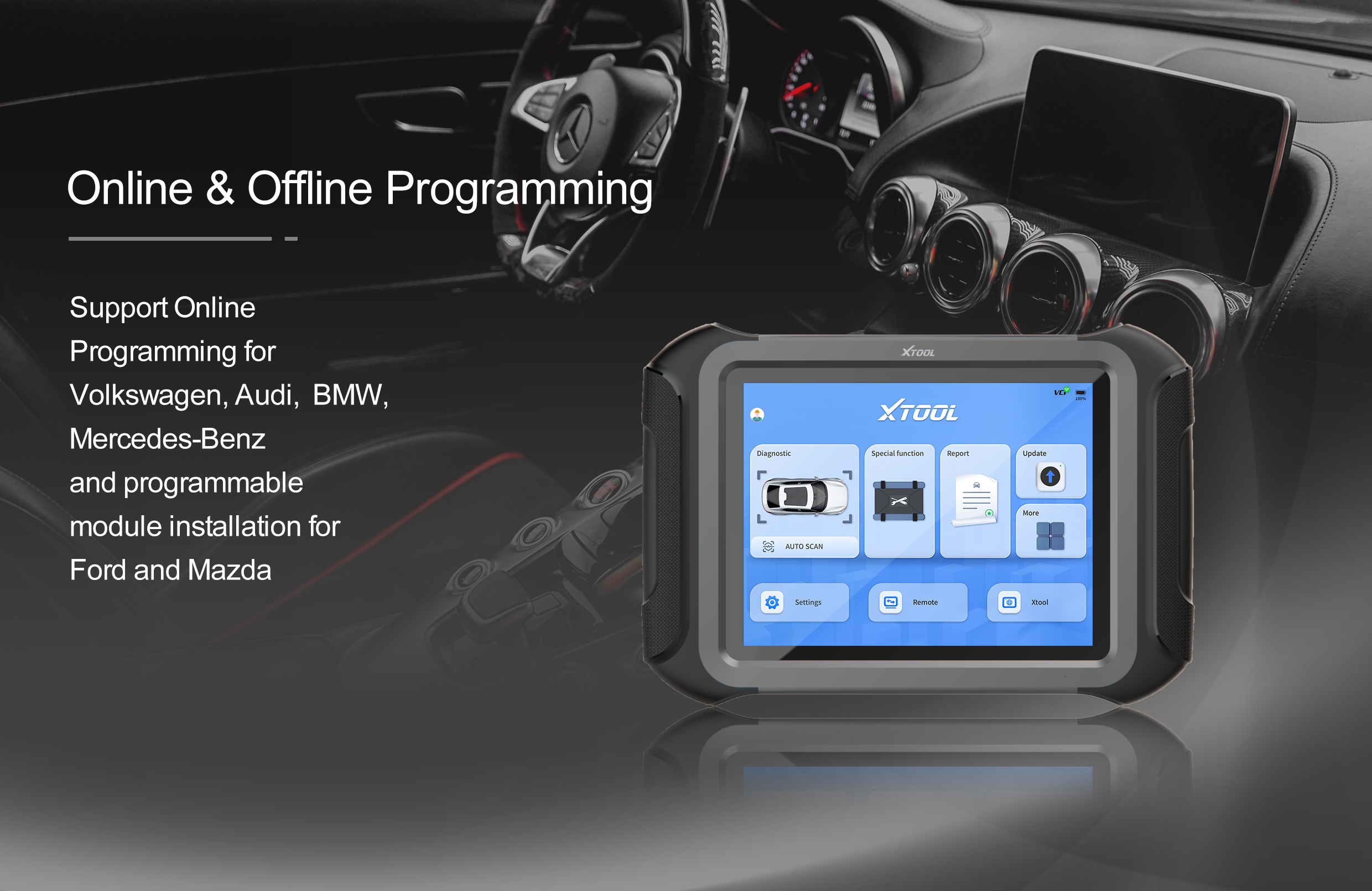

  • ● Provides fault code guidance for VAG and BMW. Supports offline programming for Ford, Lincoln and Mazda; Online coding & programming for VAG BMW and Mercedes-Benz.
  • ● Supports the latest communication protocols, including DoIP for Benz, Jaguar, Land Rover and BMW and CAN FD for GM.

Parameters

  • Operating System:Android 10
  • Processor:4 Core 1.50GHz
  • Memory:4G RAM, 128G ROM
  • Display:9.7-inch, 1024×768P
  • Communication:Wi-Fi, Wired
  • Connectivity:Type-C, USB 3.0
  • Camera:8.0 Megapixel, AF with Flashlight
  • Battery:6400 mAh, 7.2V
  • Auto Input/Output:Microphone/ Speaker
  • Working Voltage:9 to 36V
  • Working Temperature:0 to 40℃
  • Storage Temperature:-40 to 60℃
  • Humidity:<90%
  • Dimension (L×W×H):313X218X30 mm
  • Compatible Protocol:CANFD, DoIP

Accessories

  • Color Carton
  • Tool Case
  • Quick Start Guide
  • Packing List
  • Desiccant
  • XV100 Endoscope (Separate packaging)

Main Units

  • Tablet
  • USB To Type_B Main Cable
  • Power Cable US
  • Power Cable UK
  • VCI Box
  • Charger for Tablet
  • Power Cable EU
  • USB Data Cable (Connect to PC)

Test Connectors

  • HONDA-3
  • BMW-20
  • MAZDA-17R
  • GM/DAEWOO-12
  • FIAT-3
  • AUDI-4
  • UNIVERSAL-3
  • BENZ-38
  • OBD II-16
  • Battery Cable
  • TOYOTA-17
  • KIA-20
  • NISSAN-14
  • SUZUKI-3
  • HYUNDAI/KIA-10
  • MITSUBISHI-12+16
  • CITROEN-2
  • BENZ-14
  • DB15 Main Cable
  • Cigar Lighter Cable
XT90
DIAGNOSIS--ACURA
DIAGNOSIS--AUDI
DIAGNOSIS--AUSFORD
DIAGNOSIS--BAOJUN
DIAGNOSIS--BYD
DIAGNOSIS--CHANGHE
DIAGNOSIS--CHRYSLER
DIAGNOSIS--DAEWOO
DIAGNOSIS--DAIHATSU
DIAGNOSIS--EURFORD
DIAGNOSIS--FIAT
DIAGNOSIS--GM
DIAGNOSIS--HOLDEN
DIAGNOSIS--HONDA
DIAGNOSIS--HYUNDAI
DIAGNOSIS--INFINITI
DIAGNOSIS--ISUZU
DIAGNOSIS--JAC
DIAGNOSIS--JAGUAR
DIAGNOSIS--GAC GONGW
DIAGNOSIS--JINLONG
DIAGNOSIS--KIA
DIAGNOSIS--LANCIA
DIAGNOSIS--LANDROVER
DIAGNOSIS--LEXUS
DIAGNOSIS--LIFAN
DIAGNOSIS--LUXGEN
DIAGNOSIS--MAZDA
DIAGNOSIS--MIT
DIAGNOSIS--NISSAN
DIAGNOSIS--OBDII
DIAGNOSIS--OPEL
DIAGNOSIS--PERODUA
DIAGNOSIS--PORSCHE
DIAGNOSIS--PROTON
DIAGNOSIS--RENAULT
DIAGNOSIS--ROEWE
DIAGNOSIS--SAAB
DIAGNOSIS--SEAT
DIAGNOSIS--SKODA
DIAGNOSIS--MG
DIAGNOSIS--SQTYWL
DIAGNOSIS--SSANGYONG
DIAGNOSIS--SUBARU
DIAGNOSIS--SUZUKI
DIAGNOSIS--TLISUZU
DIAGNOSIS--TOYOTA
DIAGNOSIS--VOLVO
DIAGNOSIS--VW
DIAGNOSIS--FAWAUDI
DIAGNOSIS--FAW
DIAGNOSIS--CHINA MAZDA
DIAGNOSIS--FAWVW
DIAGNOSIS--ZHONGHUA
DIAGNOSIS--MINI
DIAGNOSIS--SCION
DIAGNOSIS--BENTLEY
DIAGNOSIS--ROMEO
DIAGNOSIS--USAFORD
DIAGNOSIS--SMART
DIAGNOSIS--TRANSPORTER
DIAGNOSIS--GREATWALL
DIAGNOSIS--GEELY
DIAGNOSIS--MAXUS
DIAGNOSIS--BRILLIANCE
DIAGNOSIS--CHERY
DIAGNOSIS--MAYBACH
DIAGNOSIS--ABARTH
DIAGNOSIS--Changan Ford
DIAGNOSIS--BENZ
DIAGNOSIS--VAUXHALL
DIAGNOSIS--ROLLS
DIAGNOSIS--BUICK
DIAGNOSIS--CADILLAC
DIAGNOSIS--CHEVROLET
DIAGNOSIS--GMC
DIAGNOSIS--HUMMER
DIAGNOSIS--SATURN
DIAGNOSIS--BUGATTI
DIAGNOSIS--CVVW
DIAGNOSIS--LAMBORGHINI
DIAGNOSIS--DODGE
DIAGNOSIS--MASERATI
DIAGNOSIS--GAZ
DIAGNOSIS--UAZ
DIAGNOSIS--RENAULTSAM
DIAGNOSIS--DACIA
DIAGNOSIS--LINCOLN
DIAGNOSIS--JEEP
DIAGNOSIS--Diagnosis-Demo
DIAGNOSIS--Astonmartin
DIAGNOSIS--Ferrari
DIAGNOSIS--Hyundai CV
DIAGNOSIS--BMW
DIAGNOSIS--NISSANGTR
DIAGNOSIS--PEUGEOT
DIAGNOSIS--CITROEN
DIAGNOSIS--DFPEUGEOT
DIAGNOSIS--DFCITROEN
DIAGNOSIS--POLESTAR
DIAGNOSIS--GEELY MONJARO
DIAGNOSIS--NISSAN PIN DATA
IMMOBILIZER--BESTURN
IMMOBILIZER--BRILLIANCE
IMMOBILIZER--BYD
IMMOBILIZER--CHANGAN
IMMOBILIZER--CHANGFENG
IMMOBILIZER--CHANGHE
IMMOBILIZER--CHERY
IMMOBILIZER--CHRYSLER
IMMOBILIZER--CITROEN
IMMOBILIZER--DFFENGSHEN
IMMOBILIZER--FIAT
IMMOBILIZER--FORD
IMMOBILIZER--GEELY
IMMOBILIZER--GM
IMMOBILIZER--GREATWALL
IMMOBILIZER--HAFEI
IMMOBILIZER--HONDA
IMMOBILIZER--HYUNDAI
IMMOBILIZER--JAC
IMMOBILIZER--JAGUAR
IMMOBILIZER--KIA
IMMOBILIZER--LANCIA
IMMOBILIZER--LANDROVER
IMMOBILIZER--LIFAN
IMMOBILIZER--LINCOLN
IMMOBILIZER--LUFENG
IMMOBILIZER--MAZDA
IMMOBILIZER--MERCURY
IMMOBILIZER--MG
IMMOBILIZER--NISSAN
IMMOBILIZER--PEUGEOT
IMMOBILIZER--PORSCHE
IMMOBILIZER--RENAULT
IMMOBILIZER--ROEWE
IMMOBILIZER--ROMEO
IMMOBILIZER--SSANGYONG
IMMOBILIZER--SUBARU
IMMOBILIZER--SUZUKI
IMMOBILIZER--TOYOTA
IMMOBILIZER--ZZMAZDA
IMMOBILIZER--ZZNISSAN
IMMOBILIZER--IKOPEL
IMMOBILIZER--BAIC
IMMOBILIZER--AUDI
IMMOBILIZER--MITSUBISHI
IMMOBILIZER--DFFENGXING
IMMOBILIZER--HAWTAI
IMMOBILIZER--LUXGEN
IMMOBILIZER--MASERATI
IMMOBILIZER--BAOJUN
IMMOBILIZER--HONGQI
IMMOBILIZER--SMART
IMMOBILIZER--MUSTANG
IMMOBILIZER--BENZ
IMMOBILIZER--JMC
IMMOBILIZER--FAWJB
IMMOBILIZER--MAXUS
IMMOBILIZER--FERRARI
IMMOBILIZER--IKIVECO
IMMOBILIZER--IKSOUEAST
IMMOBILIZER--BMW
IMMOBILIZER--FOTON
IMMOBILIZER--BORGWARD
IMMOBILIZER--DFFENGGUANG
IMMOBILIZER--VOLVO
IMMOBILIZER--JEEP
IMMOBILIZER--VW
IMMOBILIZER--BENTLEY
IMMOBILIZER--SEAT
IMMOBILIZER--SKODA
IMMOBILIZER--INFINITI
IMMOBILIZER--DODGE
IMMOBILIZER--ACURA
IMMOBILIZER--LEXUS
IMMOBILIZER--KC501LIB
IMMOBILIZER--DAIHATSU
IMMOBILIZER--GENESIS
IMMOBILIZER--SAAB
IMMOBILIZER--JETOUR
IMMOBILIZER--DAYUN
IMMOBILIZER--SKYWORTH
IMMOBILIZER--LIVAN
IMMOBILIZER--RADAR
SPECIAL FUNCTION--INSTRUMENT CLUSTER
SPECIAL FUNCTION--TPMS RESET
SPECIAL FUNCTION--EEPROM
SPECIAL FUNCTION--AIRBAG RESET
SPECIAL FUNCTION--ECU CONFIGURATIONS
SPECIAL FUNCTION--SUSPENSION
SPECIAL FUNCTION--DPF CONFIG
SPECIAL FUNCTION--BMS RESET
SPECIAL FUNCTION--HEADLIGHT
SPECIAL FUNCTION--THROTTLE
SPECIAL FUNCTION--EPBCONFIG
EPS--EPSCONFIG
SPECIAL FUNCTION--OIL RESET
SPECIAL FUNCTION--TRANSPORT MODE
SPECIAL FUNCTION--TIRE UPGRADE
SPECIAL FUNCTION--GEARBOX MATCH
SPECIAL FUNCTION--SEAT CALIBRATION
SPECIAL FUNCTION--Injector Coding Config
SPECIAL FUNCTION--WINDOWS INITIALIZATION
SPECIAL FUNCTION--GEAR LEARNING
SPECIAL FUNCTION--ABS BLEEDING
SPECIAL FUNCTION--ELECTRONIC PUMP ACTIVATION
SPECIAL FUNCTION--TPMS RESET(EU)
SPECIAL FUNCTION--LANGUAGE CHANGE
SPECIAL FUNCTION--STOP/START RESET
SPECIAL FUNCTION--A/F RESET
SPECIAL FUNCTION--CYLINDER
SPECIAL FUNCTION--ADAS
SPECIAL FUNCTION--TPMSRESET(US)
SPECIAL FUNCTION--TPMSRESET(JP)
SPECIAL FUNCTION--TPMSRESET(KR)
SPECIAL FUNCTION--TPMSRESET(AU)
SPECIAL FUNCTION--SPEED
SPECIAL FUNCTION--CLUTCH
SPECIAL FUNCTION--SRS
SPECIAL FUNCTION--ADBLUE
SPECIAL FUNCTION--EGR
SPECIAL FUNCTION--FRM
SPECIAL FUNCTION--NOX
SPECIAL FUNCTION--VIN
SPECIAL FUNCTION--VGT
SPECIAL FUNCTION--HVBATTERY
SPECIAL FUNCTION--ACRELEARN
SPECIAL FUNCTION--RAINLIGHT
SPECIAL FUNCTION--CONTROLUNIT
SPECIAL FUNCTION--READODO
