D9HD

Automotive Smart Diagnostic System

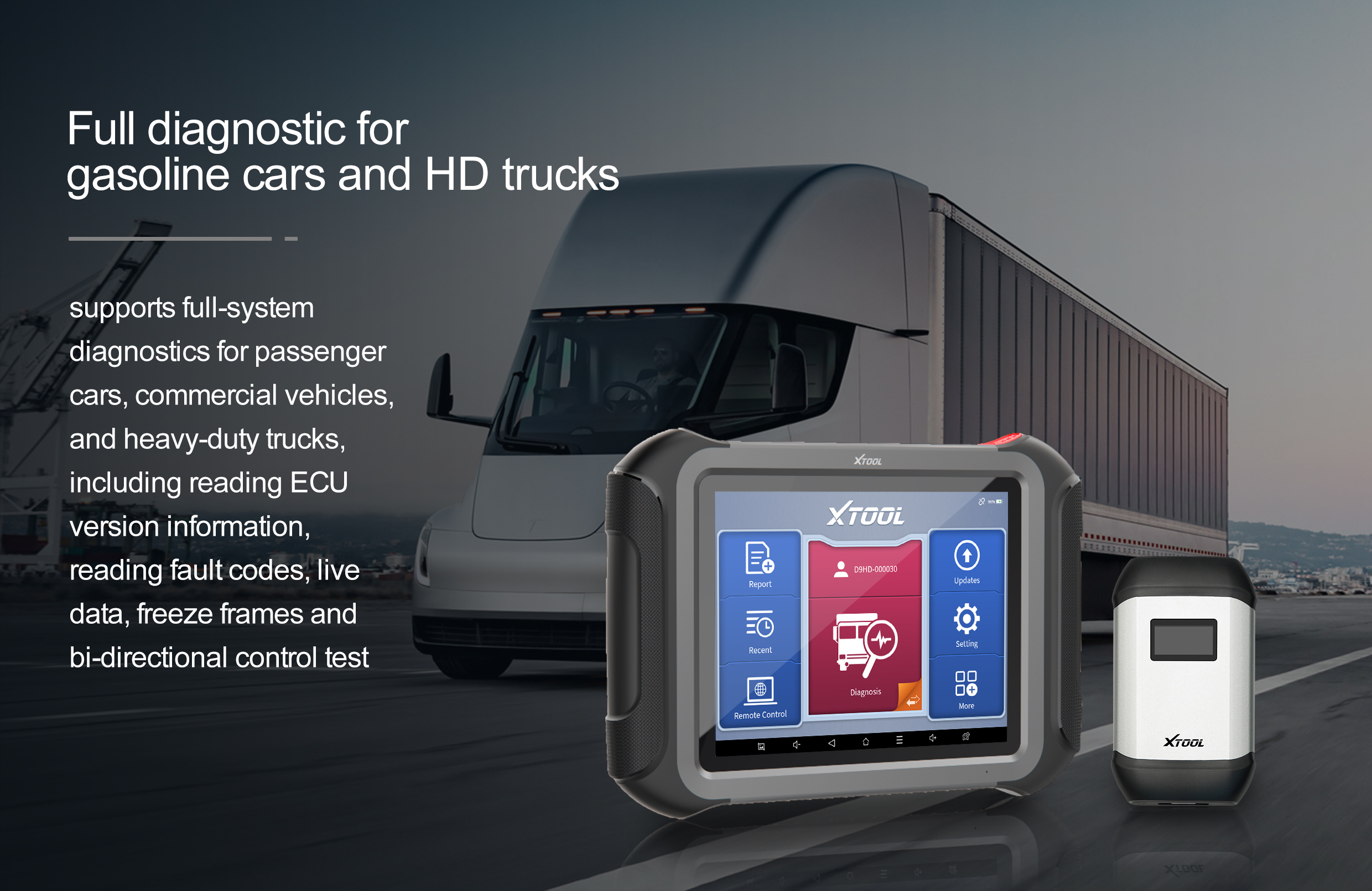

D9HD is an automotive smart diagnostic system designed for mechanics, electricians, and car maintenance shops. It supports full-system diagnostics for passenger cars, commercial vehicles, and heavy-duty trucks, including reading ECU version information, reading fault codes, live data, freeze frames and bi-directional control test. 42 common special functions, such as throttle matching, ABS bleed, maintenance light reset, EPB test, SAS, BMS, injector coding, DPF regeneration, and TPMS reset are supported. Under the system menu, you can also explore a wealth of special functions. 98% vehicle coverage, work on more than 85 brands, 10000 cars.

D9HD

PARAMETERS

DIAGNOSTICS

IMMOBILIZER

PACKING LIST

MANUAL

Parameters

Operating System：Android 10
Processor：Rock chip 4 Core 1.80GHz
Memory：2G RAM, 128 ROM (202207 version)
Display：9.7 inch capacitive touch screen with 1024×768P resolution
Communication Method：BT 4.2 | WIFI 2.4/5G
Connectivity：DB15 TO VAG | USB 3.0
Camera：Rear camera, 8.0 Megapixel, AF with Flashlight.
Sensors：Gravity Accelerometer, Ambient Light Sensor
Auto Input/Output：Microphone, Dual Speakers, 4-Band 3.5 mm stereo/standard headset jack
Battery：10000mAh, 3.7V lithium-polymer battery
Working Voltage：3.6 to 4.2V
Power Voltage：DC 12V
Working hours：12 hours
Operating Temperature：-10 to 40℃
Storage Temperature：-40 to 60℃
Humidity：<90%

Accessories

Color Carton
Quick Start Guide
Packing List
Certificate of Quality
Tool Case
Desiccant

Main Units

Tablet
VCI Box
USB3.0 Data Cable (Connect to PC)
Charger for Tablet
Power Cable US
Power Cable UK
Power Cable EU

Test Connectors

DB15 Main Cable
DB15 to USB3.0 Main Cable
Battery Clamp Cable
Cigar Lighter Cable
Jumper
Jumper Adapter
OBD-R16
ECONTROLS-4
WOODWARD-3
ISUZU-3
ISUZU-20
YUCHAI-4
DENSO-12
CUMMINS-16
CUMMINS-9
HITACHI-4
HITACHI-6
CAT-9
VOLVO-8
OBD II-16
HONDA-3
BMW-20
BENZ-14
BENZ-38
TOYOTA-17
MAZDA-17R
KIA-20
HYUNDAI/KIA-10
NISSAN-14
GM/DAEWOO-12
UNIVERSAL-3
SUZUKI-3
FIAT-3
CITROEN-2
AUDI-4
MITSUBISHI-12+16

D9HD UserManual

DIAGNOSIS--ERF
DIAGNOSIS--ZHONGLIANJIXIE
DIAGNOSIS--MAN
DIAGNOSIS--EATON
DIAGNOSIS--FUSO
DIAGNOSIS--CAT
DIAGNOSIS--WABCO(Electronic)
DIAGNOSIS--BMW
DIAGNOSIS--DETROIT
DIAGNOSIS--FORCE
DIAGNOSIS--WABCO
DIAGNOSIS--SCANIA
DIAGNOSIS--SIEMENS
DIAGNOSIS--ISUZU
DIAGNOSIS--SANY
DIAGNOSIS--BEIQI
DIAGNOSIS--CATERPILLAR
DIAGNOSIS--ALLISON
DIAGNOSIS--INTERNATIONAL
DIAGNOSIS--FOTON
DIAGNOSIS--XIAOSONGJIXIE
DIAGNOSIS--SHANMAOJIXIE
DIAGNOSIS--TATA
DIAGNOSIS--VOLVO
DIAGNOSIS--INTATA
DIAGNOSIS--Continental electronic horse
DIAGNOSIS--BHARATBENZ
DIAGNOSIS--AUTOCAR
DIAGNOSIS--DELPHI
DIAGNOSIS--Construction machinery
DIAGNOSIS--MANENG
DIAGNOSIS--INMAHINDRA
DIAGNOSIS--WESTERN STAR
DIAGNOSIS--HINO
DIAGNOSIS--PIERCE
DIAGNOSIS--MAXXFORCE
DIAGNOSIS--ECU brand
DIAGNOSIS--UD
DIAGNOSIS--MACK
DIAGNOSIS--SANYIZHONGGONG
DIAGNOSIS--CUMMINSQ
DIAGNOSIS--CATJIXI
DIAGNOSIS--ALLISON(Electronic)
DIAGNOSIS--SINOTRUCKOVERSEA
DIAGNOSIS--KENWORTH
DIAGNOSIS--ZF
DIAGNOSIS--MAHINDRA
DIAGNOSIS--TOYOTA
DIAGNOSIS--HYUNDAI
DIAGNOSIS--IVECO
DIAGNOSIS--TATA
DIAGNOSIS--Truck
DIAGNOSIS--FREIGHTLINER
DIAGNOSIS--DAXINJIXIE
DIAGNOSIS--BENDIX
DIAGNOSIS--ISUZU
DIAGNOSIS--OBD
DIAGNOSIS--BOSCH
DIAGNOSIS--TELEIKESI
DIAGNOSIS--CUMMINS
DIAGNOSIS--BENZ
DIAGNOSIS--DAF
DIAGNOSIS--MAHINDRA
DIAGNOSIS--PETERBILT
DIAGNOSIS--ASHOK
DIAGNOSIS--RENAULT
DIAGNOSIS--STERLING
DIAGNOSIS--DENSO
DIAGNOSIS--Automatic gearbox
DIAGNOSIS--YQJC

IMMOBILIZER--KC501LIB

Models

D9HD

Automotive Smart Diagnostic System

D9HD

Parameters

Operating System：Android 10

Processor：Rock chip 4 Core 1.80GHz

Memory：2G RAM, 128 ROM (202207 version)

Display：9.7 inch capacitive touch screen with 1024×768P resolution

Communication Method：BT 4.2 | WIFI 2.4/5G

Connectivity：DB15 TO VAG | USB 3.0

Camera：Rear camera, 8.0 Megapixel, AF with Flashlight.

Sensors：Gravity Accelerometer, Ambient Light Sensor

Auto Input/Output：Microphone, Dual Speakers, 4-Band 3.5 mm stereo/standard headset jack

Battery：10000mAh, 3.7V lithium-polymer battery

Working Voltage：3.6 to 4.2V

Power Voltage：DC 12V

Working hours：12 hours

Operating Temperature：-10 to 40℃

Storage Temperature：-40 to 60℃

Humidity：<90%
