TP150

Tire Pressure Diagnostic Device

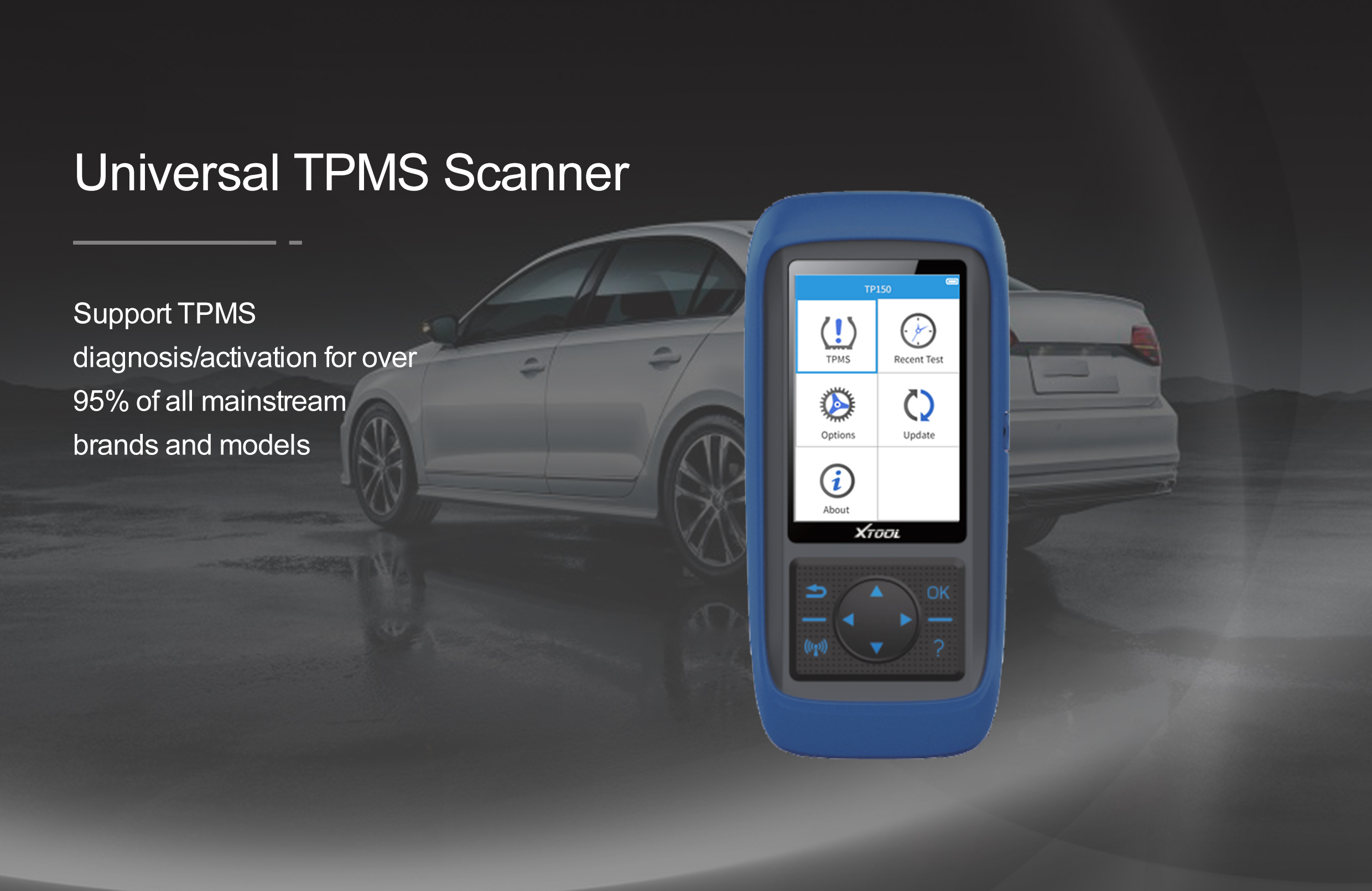

TP150 is a special inspection device launched by Xtool for the automotive tire pressure diagnosis market, which integrates tire pressure programming, tire pressure diagnosis, and tire pressure matching. It supports activation of 315MHz and 433MHz tire pressure sensors, can perform tire pressure diagnosis on thousands of models, and can wirelessly program 1-8 TS100 universal programmable tire pressure sensors, which makes it suitable for different models.

TP150

DESCRIPTION
PARAMETERS
VIDEO
SPECIAL FUNCTION
PACKING LIST
MANUAL

Description

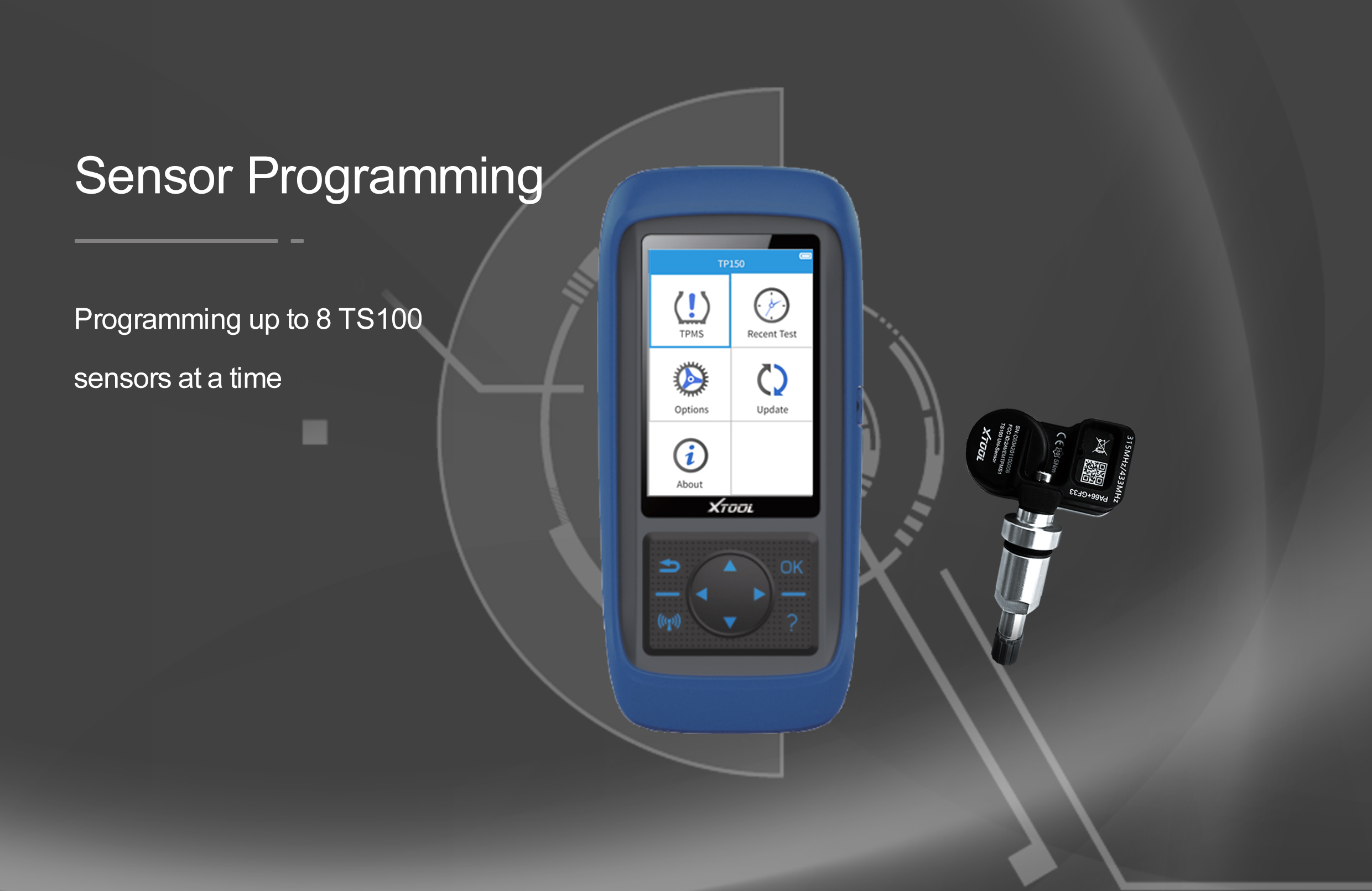

  • ● Program up to 8 sensors
  • ● TPMS status check
  • ● Read/Check/Relearn Tire-Pressure Sensors on the vehicle
  • ● Check TPMS fault codes
  • ● Display vehicle relearn procedures / Perform relearn via OBD or sensor triggering

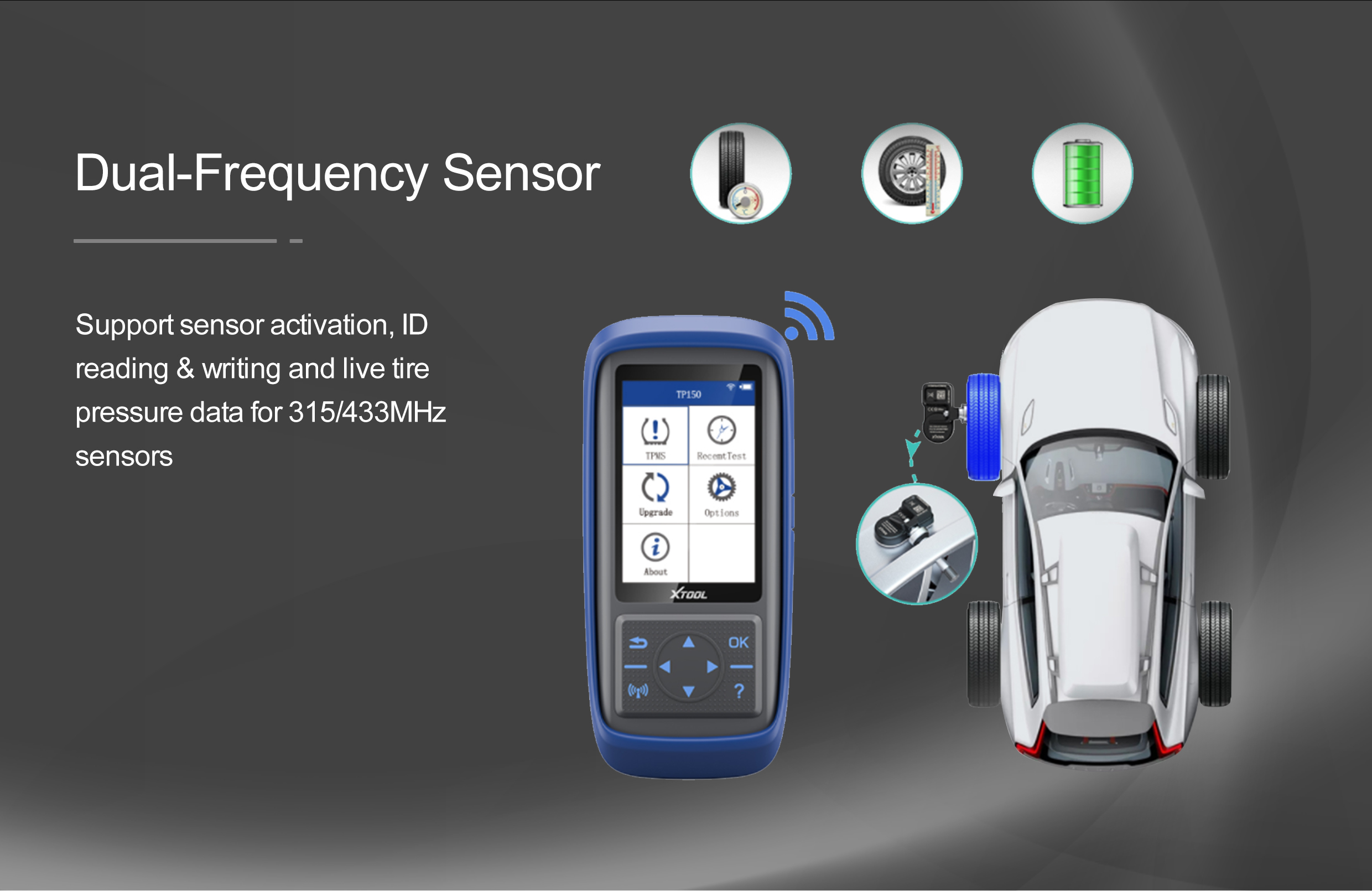

  • ● Activate 315/433MHz tire pressure sensors
  • ● FREE software update via Wifi connection & 1Yr Warranty
  • ● Display sensor ID, battery condition (on select sensors), tire pressure & temperature
  • ● Software Updates via PC or Wi-Fi / Easy-To-Use Navigation
  • ● 4-inch Color Display 320x480 dpi
  • ● 3000mAh Lithium-polymer Battery

Parameters

  • Screen:3.95 inch 320*480 TFT-LCD colors screen
  • MCU:IC STM32
  • TF Card:8G Storage
  • Capacity:3000mAh,Max charging current 1.2A,USB charging current 500mA
  • Operating temp.:-10℃~60℃
  • Storage temp.:-20 ℃~70℃
  • Size:200×92×33mm
  • Weight:0.4kg

Accessories

  • User Manual
  • Certificate of quality
  • Packing list
  • Paper box

Main Units

  • TP150
  • Charger

Test Connectors

  • OBD II
  • USB TYPE-C
TP150 User Manual
TPMS--Europe
DISPLAY PROGRAM--TP150
TPMS--America
TPMS--Japan
TPMS--Korea
TPMS--Australia
TPMS--China
