KC501
Professional Key & Chip Programmer

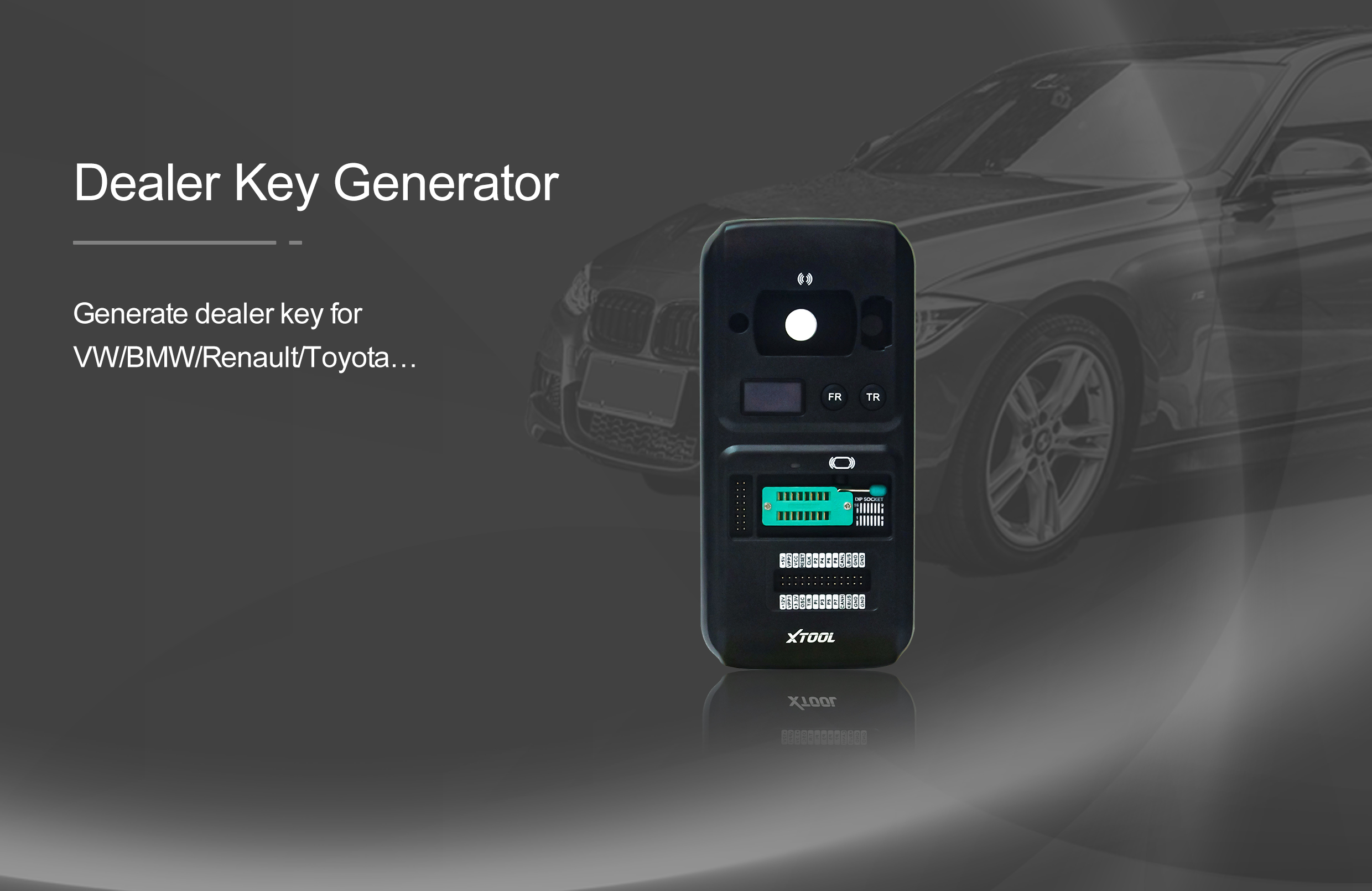

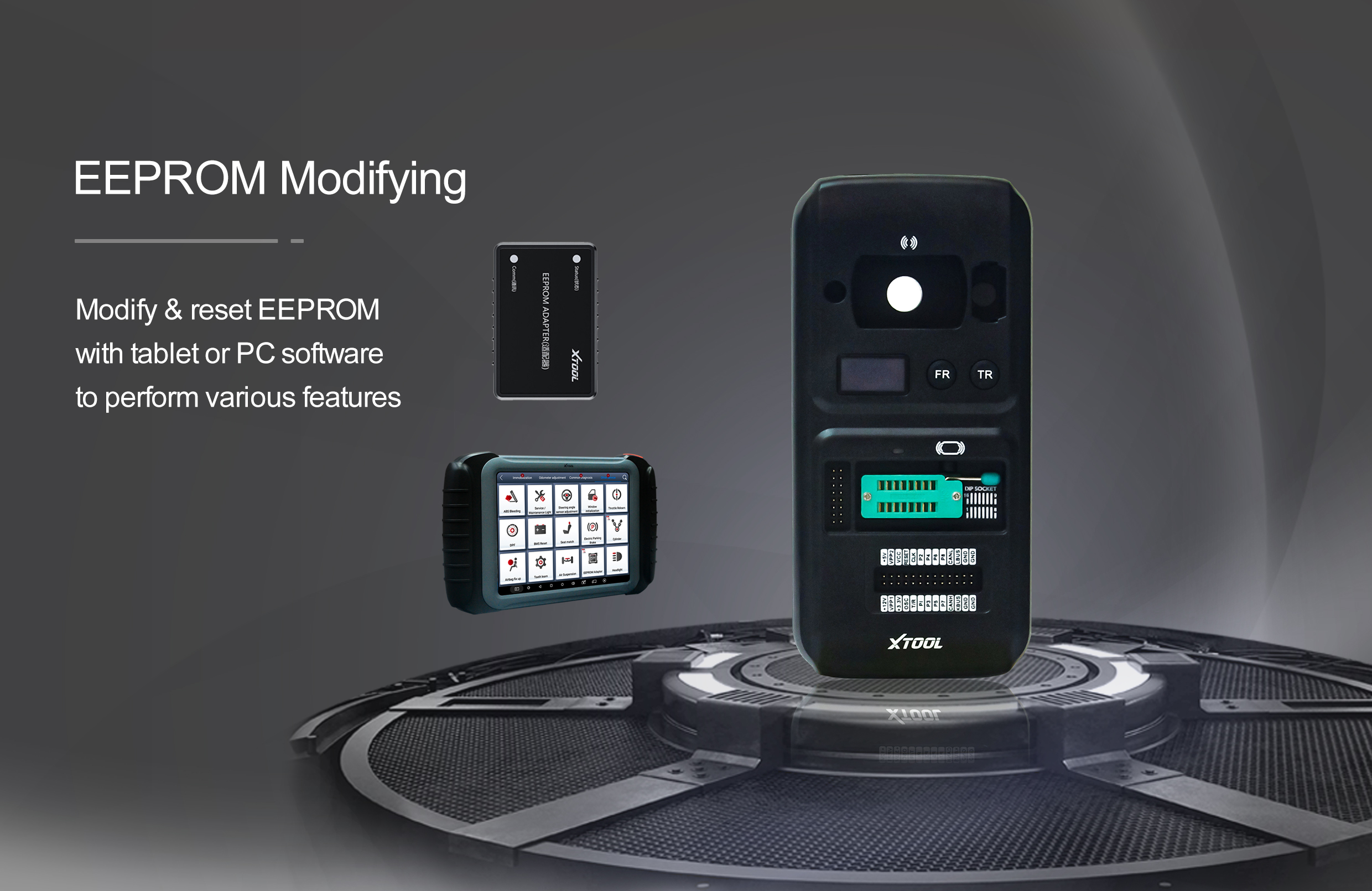

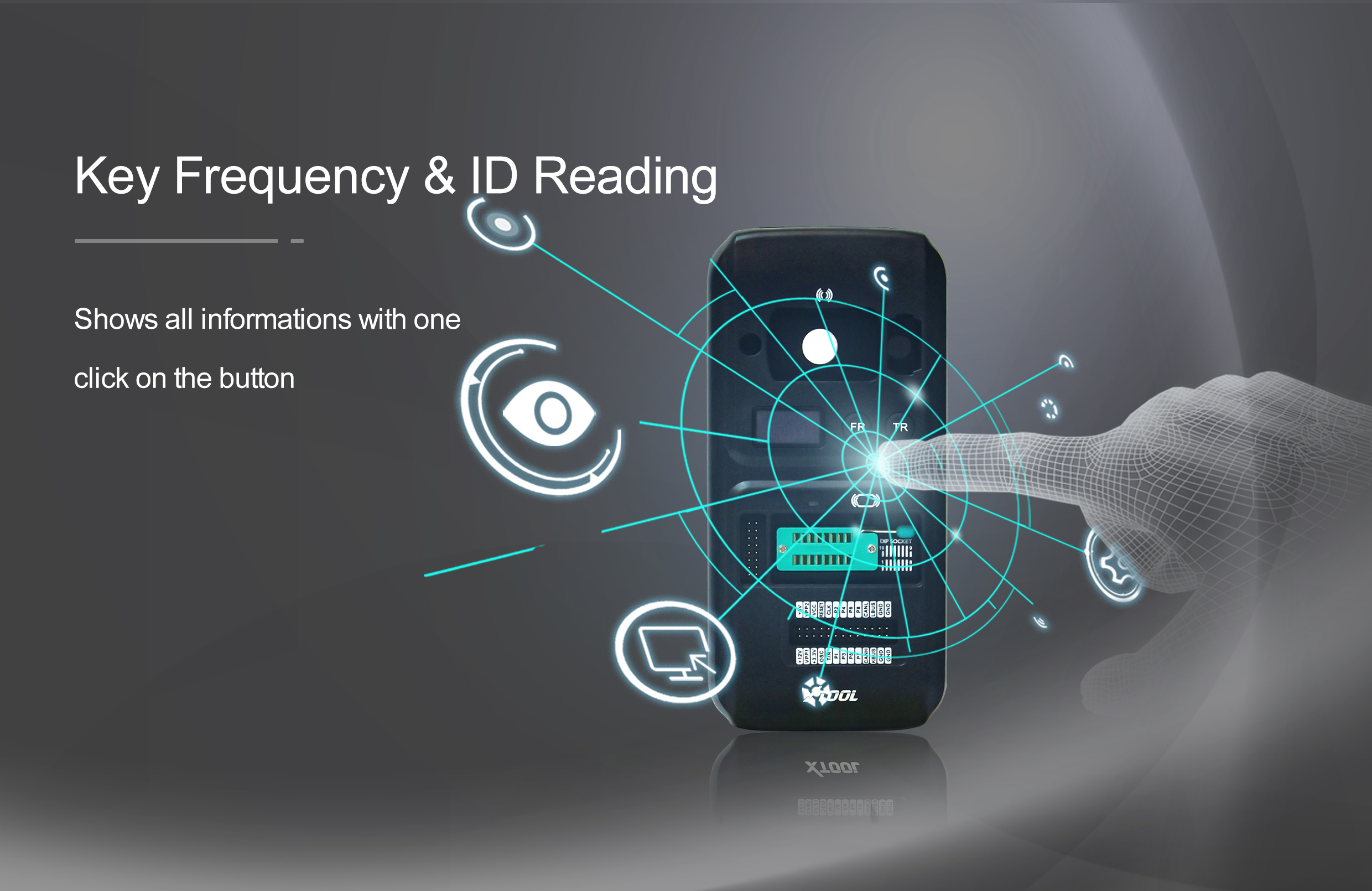

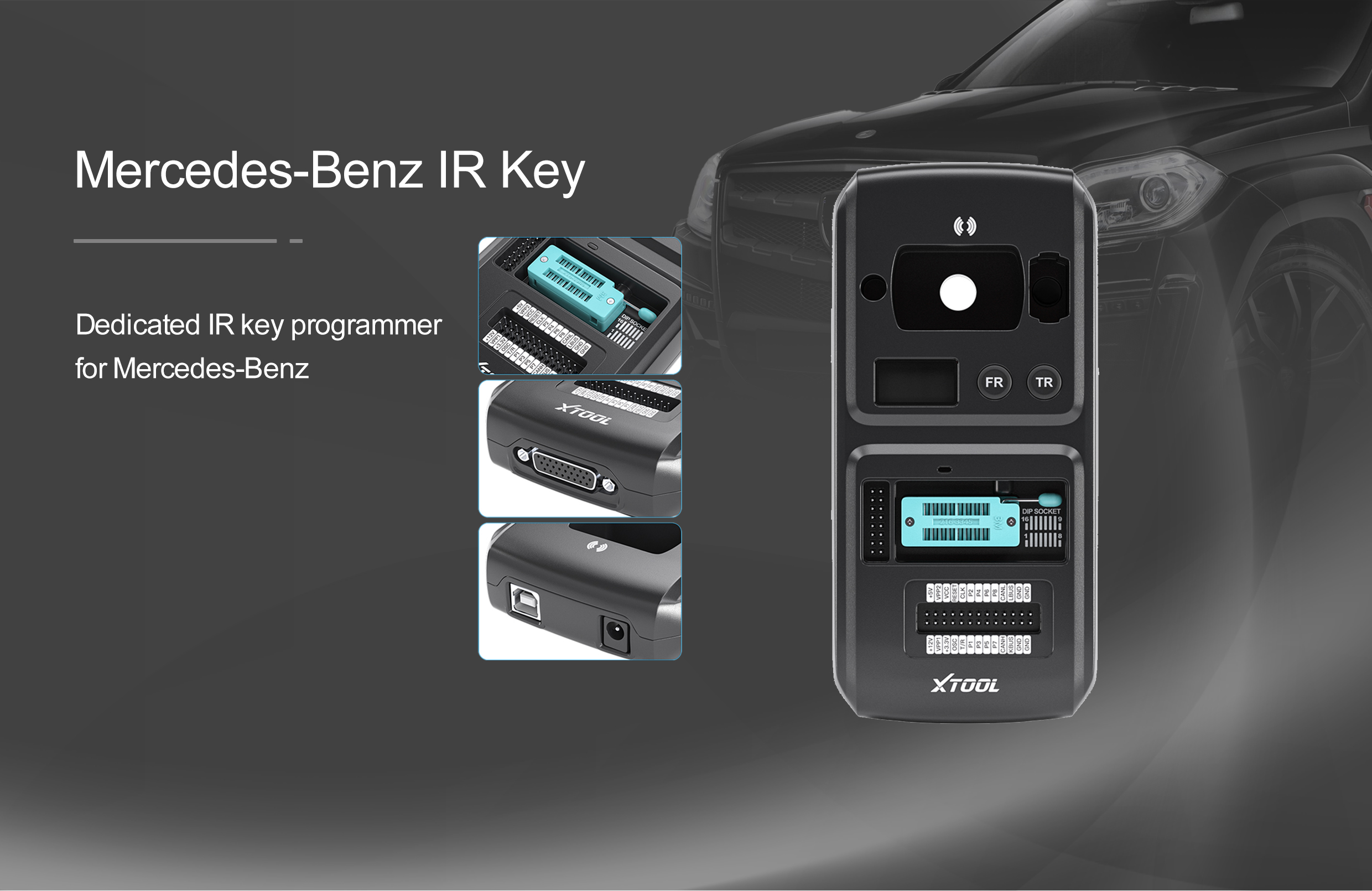

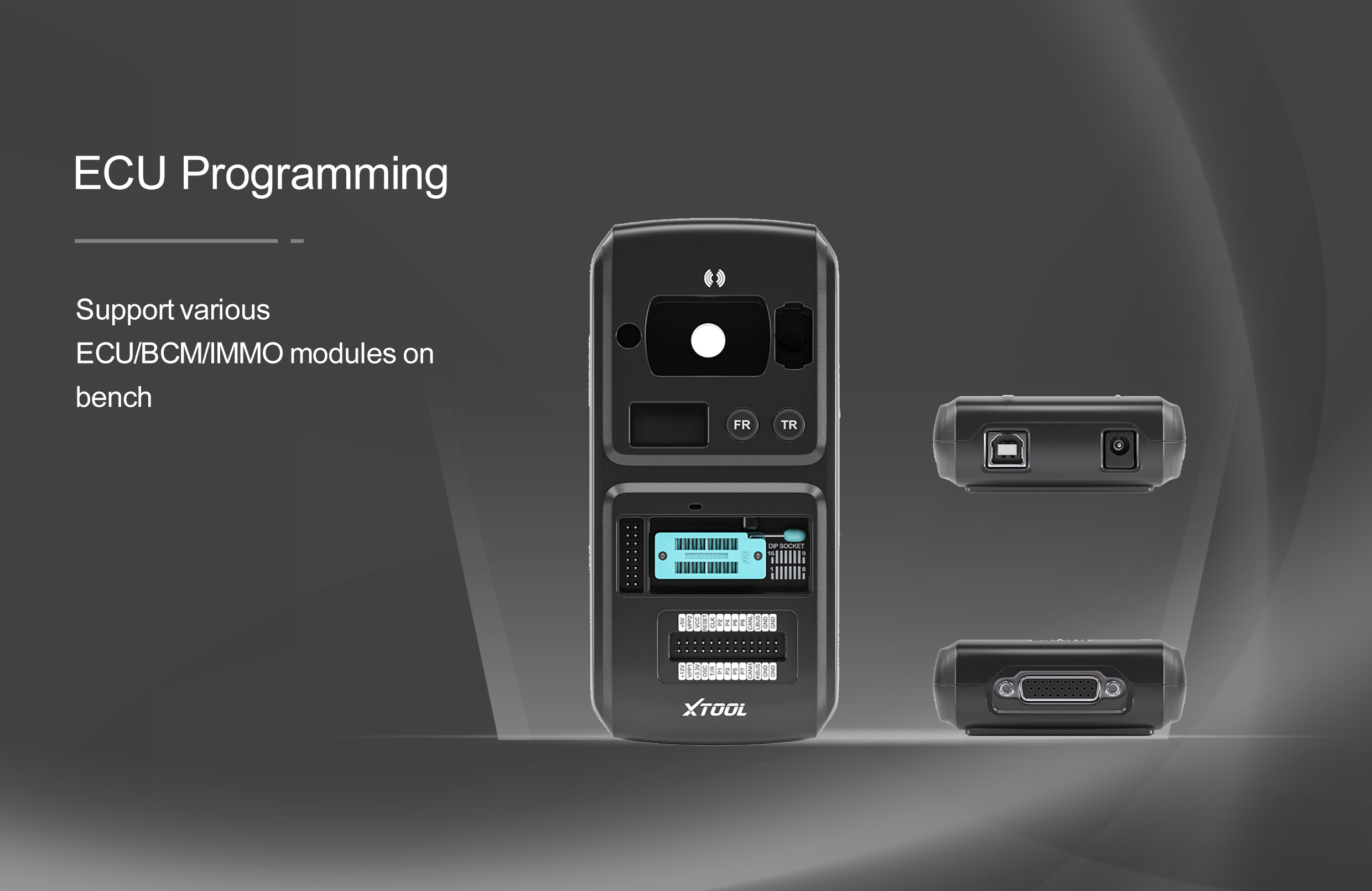

Powerful in functions and fashionable in appearance, KC501 is a professional Key & chip programmer which can not only read,write keys and read key remote frequency, but also generate dealer keys. It support read and write MCU/EEPROM chips, reach and write Mercedes Infrared keys. Moreover, it support PC connection which brings you better user experience.
Description
-
● In all-keys-lost situations, M821/M822 is not required to read EIS data anymore; Simply connect the EIS modules and KC501 lower pins via DuPont cables and get its data.
-
● Time required for pasword calculation can be compressed to under 1 minute, comparing to the previous 5-15min for add keys and up to 120min in all keys lost situations.
-
● Now keys will be written in the OE method which means KC501 support more kinds of keys including Mercedes-Benz OE keys.
-
● Now KC501 can erase EIS data, enable/disable keys and generate key files.
Parameters
-
Display Screen：320x480 dpi TFT Colorful Screen
-
Working Voltage：9V-18V
-
Working Temperature：-10℃-60℃
-
Storage Temperature：-20-60℃
-
Power supply：12V DC
-
Appearance Size：177 mm* 85 mm* 32 mm
-
Weight：0.32 KG
Accessories
- Certificate Of Quality
- Packing List
- User Manual
- Carton
Main Units
- KC501 Key & Chip Key Programmer
- USB_TYPE-B
- USB_TYPE-C
- Charger (With Power Supply Cable)
- Benz Infrared cable
Test Connectors
- MCU FQFP176
- MCU FQFP64
- XTA001 Clamp
- IC Clamp
- MCU FQFP112
- MCU FQFP144
- MCU FQFP80
- IC EEPROM Socket
- EEPROM Adaptor (With bracket)
- XTA002 Clamp
- XTA003 Clamp
- 26 PIN Cable
- 24AWG Cable
- Tool Case
