D9S Pro

Smart Diagnostic System

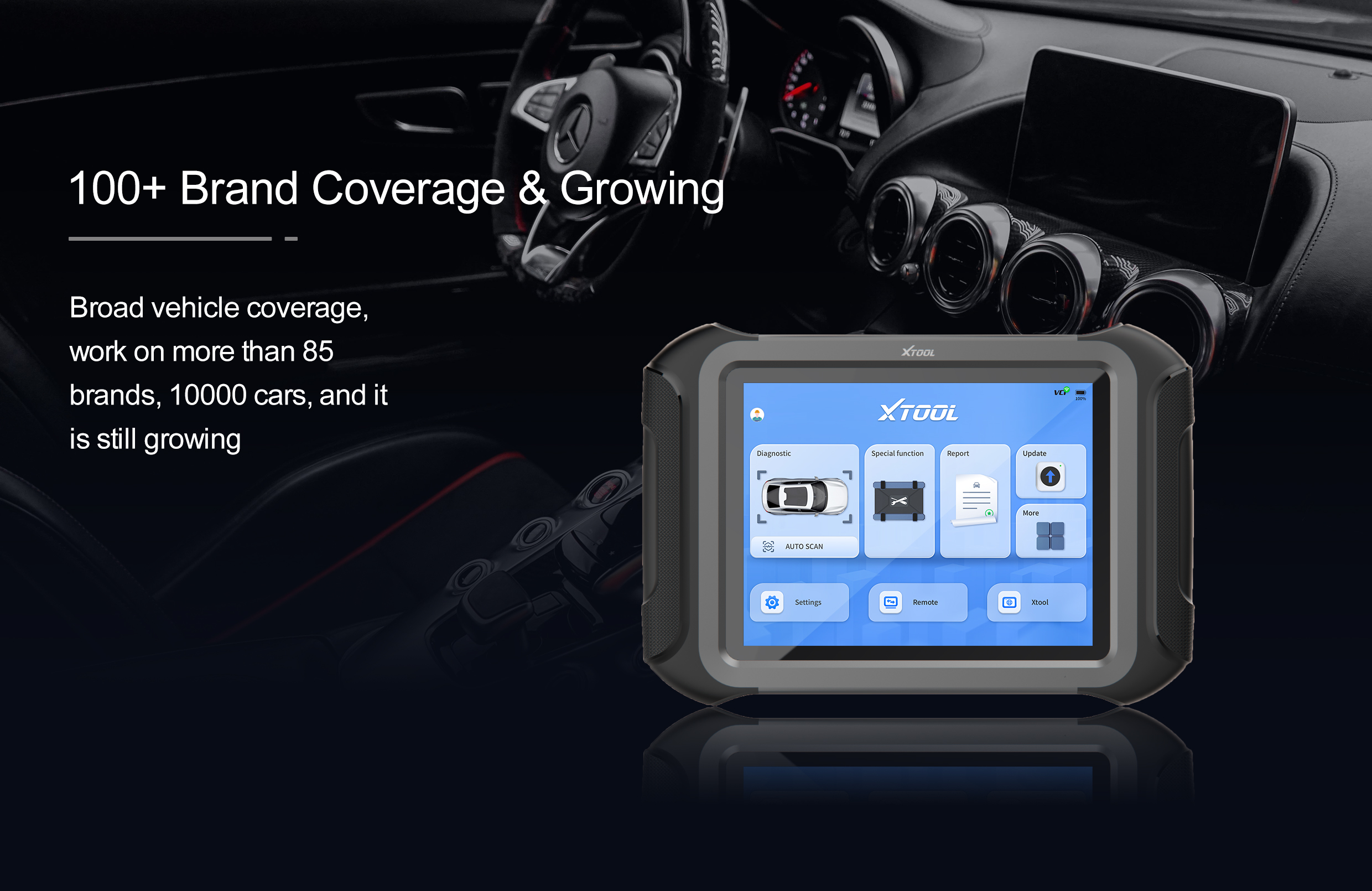

D9S Pro is an advanced automotive diagnostic system featuring a large 9.7-inch screen and dual WIFI modules for stable data transfer between the tablet and VCI. Designed for mechanics, electricians and automotive repair stores, it provides full-system automotive diagnostics, live data, Bi-directional control test, ECU coding and ECU programming. D9S Pro also supports 42 common special functions such as throttle adaptation, ABS bleeding, service light reset, EPB test, SAS calibration, BMS reset, injector coding, DPF regeneration, and TPMS reset. With 98% vehicle coverage and compatibility with over 100 brands and 10,000 car models, the D9S Pro is a versatile and reliable tool for any automotive professional.

D9S Pro

DESCRIPTION
PARAMETERS
PACKING LIST

Description

  • ● 4-core processor (1.5 GHz) /4+128G memory
  • ● 9.7-inch touchscreen (1024x768 P) /Android 10.0
  • ● Wi-Fi-enabled VCI with Dual Wi-Fi modules
  • ● AutoVIN and Auto Scan

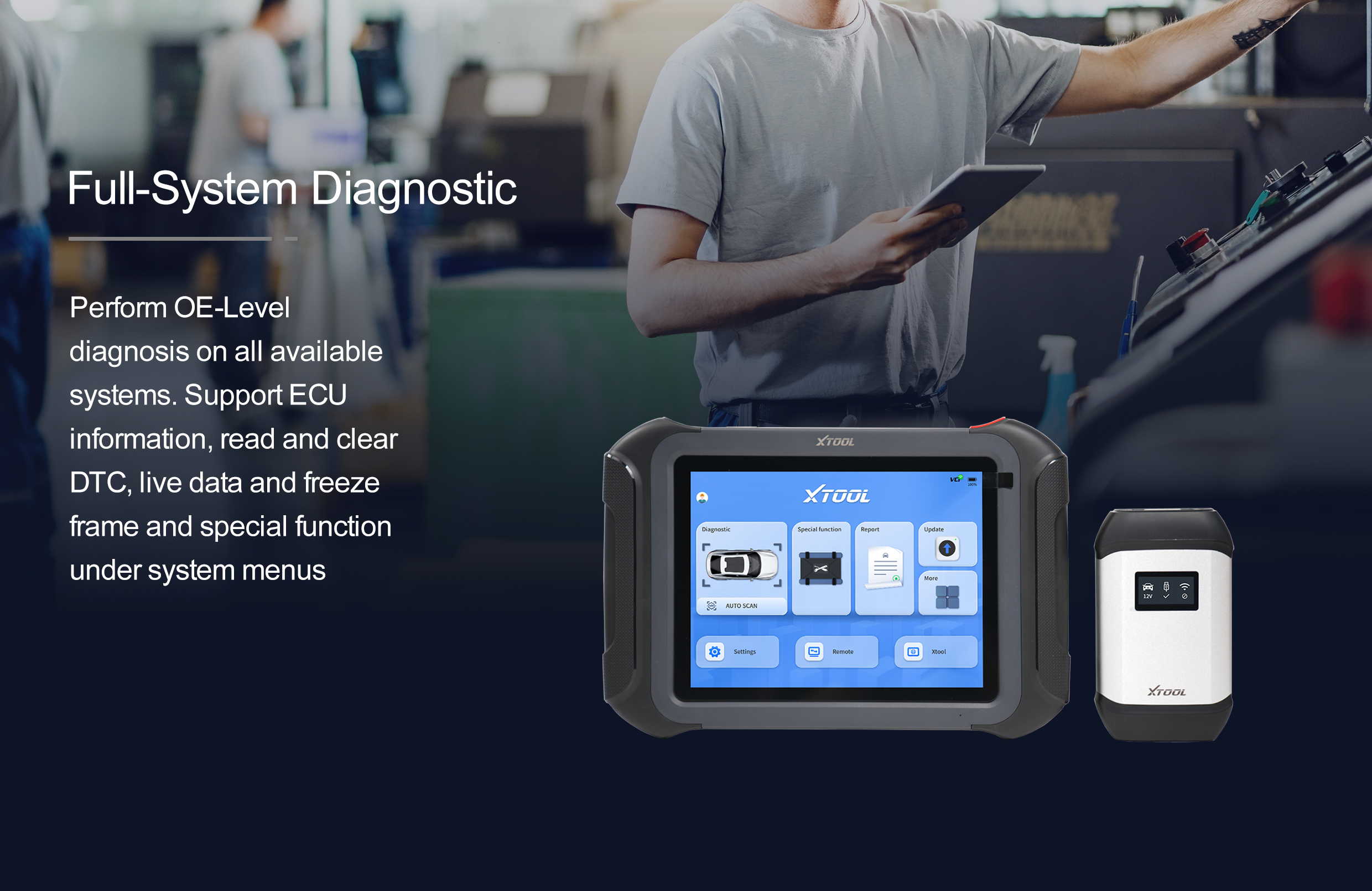

  • ● Read/erase codes on all available systems
  • ● View freeze frame, view and graph Live Data
  • ● Perform bi-directional control tests

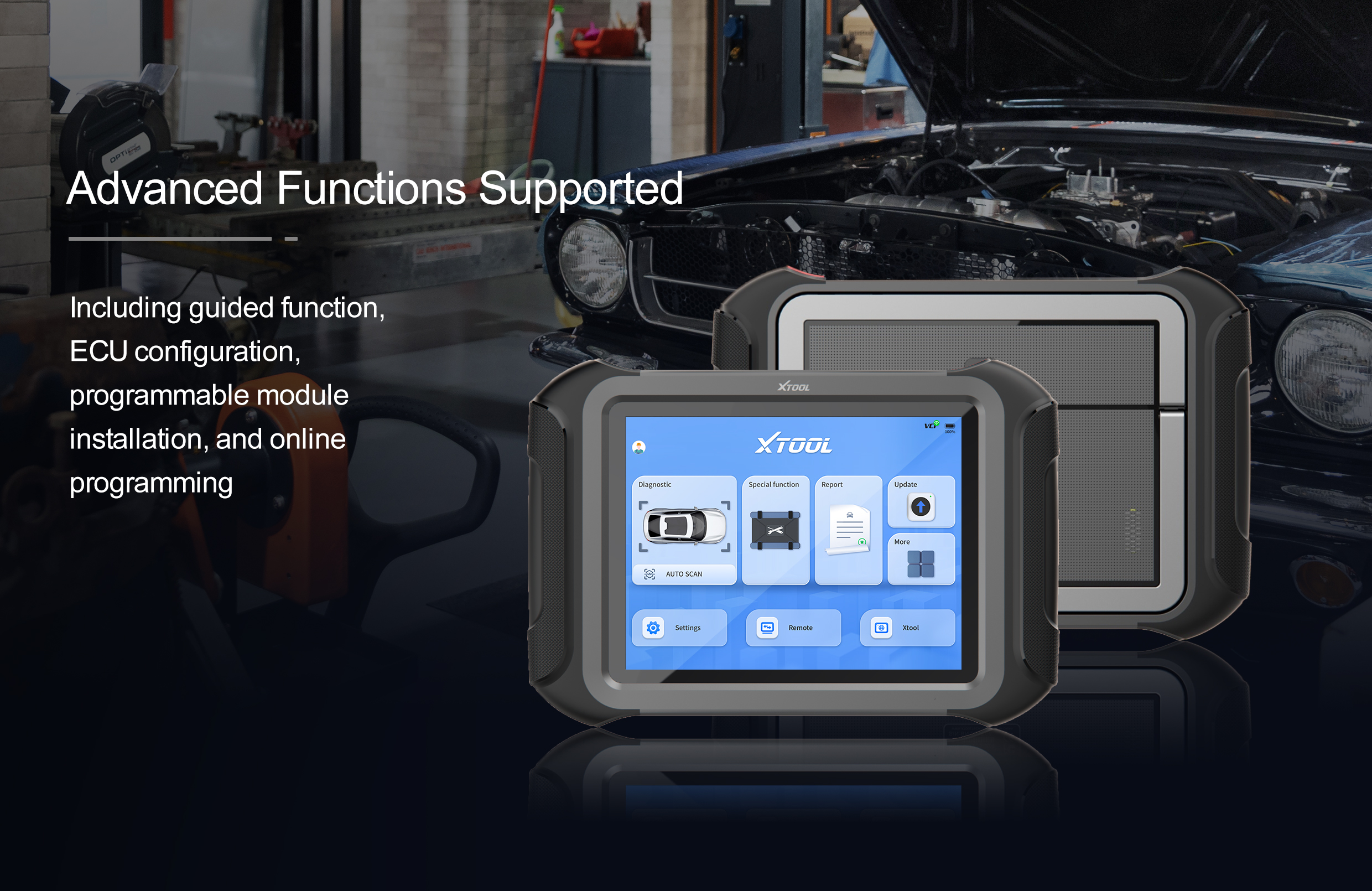

  • ● Perform ECU configuration and ECU coding
  • ● Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
  • ● Advanced 42 relearn and reset services
  • ● Provides fault code guidance for VAG and BMW. Supports offline programming for Ford, Lincoln and Mazda; Online coding & programming for VAG BMW and Mercedes-Benz.
  • ● Supports the latest communication protocols, including DoIP for Benz, Jaguar, Land Rover and BMW and CAN FD for GM
  • Share diagnostic reports easily via email

Parameters

  • Operating System:Android 10
  • Processor:4 Core 1.50GHz
  • Memory:4G RAM, 128 ROM
  • Display:9.7 inch capacitive touch screen with 1024×768P resolution
  • Communication:WIFI
  • Connectivity:WIFI 2.4/5 GHZ, Type-C
  • Camera:Rear camera, 8.0 Megapixel, AF with Flashlight.
  • Sensors:Gravity Accelerometer, Ambient Light Sensor
  • Auto Input/Output:Microphone/ Speaker
  • Battery:6400mAh, 7.2V lithium-polymer battery
  • Working Voltage:9V-32V
  • Power Voltage:DC 12V
  • Operating Temperature:-10 to 40℃
  • Storage Temperature:-40 to 60℃
  • Humidity:<90%
  • Dimension (L×W×H):313X218X30 mm
  • Protocol compatibility:CANFD, DoIP

Accessories

  • Color Carton
  • Packing List
  • Tool Case
  • Desiccant

Main Units

  • Tablet
  • VCI Box
  • Type-C to Type-B Data Cable
  • Type-C to Type-A Data Cable
  • Type-C to Type-C Charger Cable
  • Power Cable US
  • Quick Start Guide
  • Power Cable EU
  • Power Cable UK

Test Connectors

  • HONDA-3
  • TOYOTA-17
  • BMW-20
  • KIA-20
  • MAZDA-17R
  • NISSAN-14
  • GM/DAEWOO-12
  • SUZUKI-3
  • FIAT-3
  • HYUNDAI/KIA-10
  • AUDI-4
  • MITSUBISHI-12+16
  • UNIVERSAL-3
  • BENZ-38
  • BENZ-14
  • OBD II-16
  • DB15 Main Cable
  • CITROEN-2
  • Cigar Lighter Cable
