D9S

Smart Diagnostic System

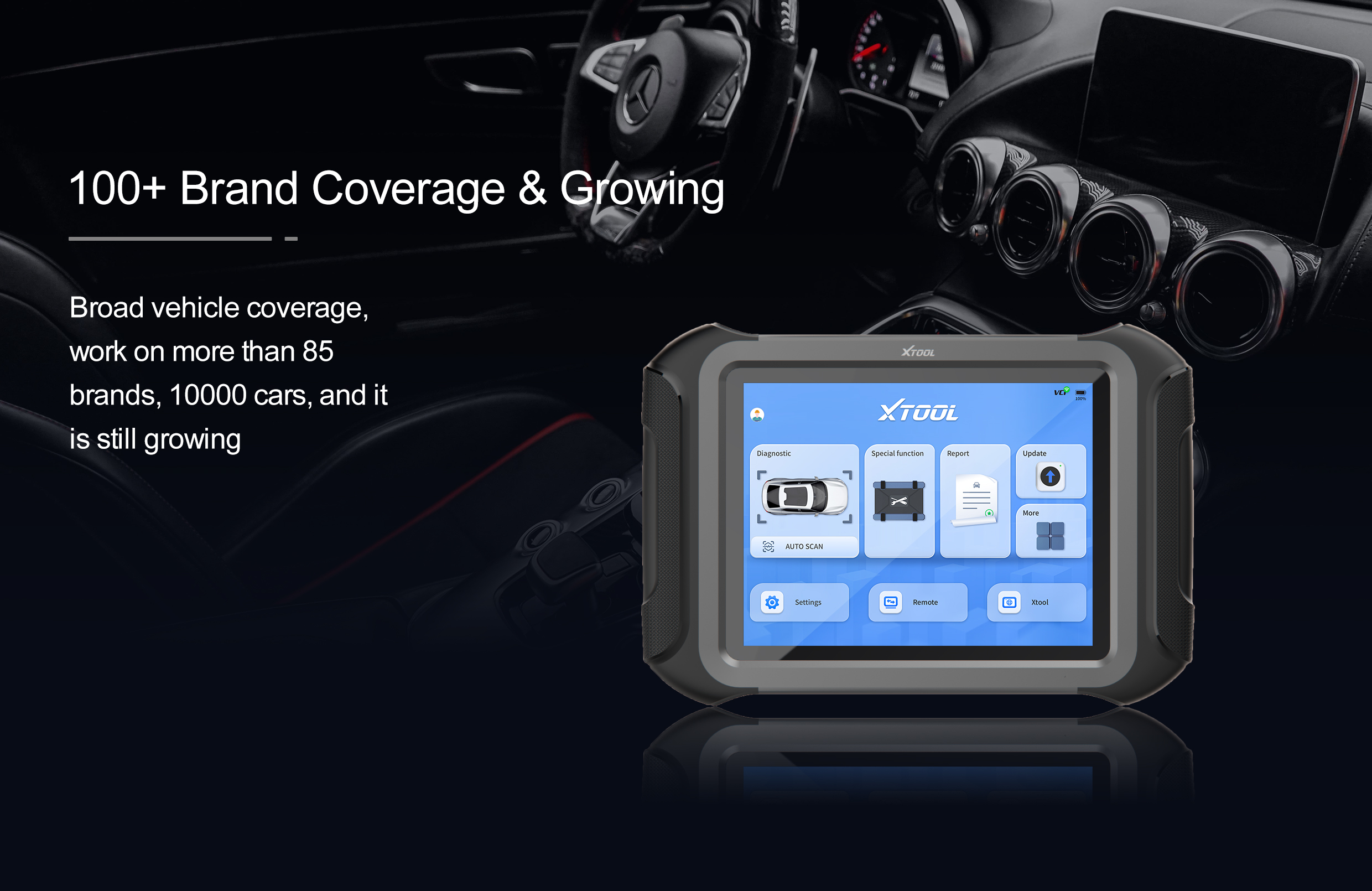

D9S is an advanced automotive diagnostic system featuring a large 9.7-inch screen and dual WIFI modules for stable data transfer between the tablet and VCI. Designed for mechanics, electricians and automotive repair stores, it provides full-system automotive diagnostics, live data, Bi-directional control test, ECU coding and ECU programming. D9S also supports 42 common special functions such as throttle adaptation, ABS bleeding, service light reset, EPB test, SAS calibration, BMS reset, injector coding, DPF regeneration, and TPMS reset. With 98% vehicle coverage and compatibility with over 100 brands and 10,000 car models, the D9S is a versatile and reliable tool for any automotive professional.

D9S

DESCRIPTION
PARAMETERS
PACKING LIST

Description

  • ● 4-core processor/ 4+128G memory
  • ● 9.7-inch capacitive touch screen (1024x768 P)
  • ● Android 10.0 Operating System for fast boot-up and multitasking
  • ● Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding
  • ● Displays live data in text, graph, analog and digital gauge for easy data review and analysis
  • ● Records and playbacks live data to pinpoint troubles of sensors and components
  • ● Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
  • ● Remote technical support for convenient demonstration, training and increased customer satisfaction
  • ● Hot 42 relearn and reset services
  • ● Supports programmable module installation (offline programming) for Ford, Lincoln and Mazda; offline coding for VW, Benz and Mitsubishi
  • ● Automatic Wi-Fi updates available in new software releases

Parameters

  • Operating System:Android 10
  • Processor:4 Core 1.50GHz
  • Memory:4G RAM, 128 ROM
  • Display:9.7 inch capacitive touch screen with 1024×768P resolution
  • Communication:WIFI
  • Connectivity:WIFI 2.4/5 GHZ;Type-C
  • Camera:Rear camera, 8.0 Megapixel, AF with Flashlight.
  • Sensors:Gravity Accelerometer, Ambient Light Sensor
  • Auto Input/Output:Microphone/ Speaker
  • Battery:6400mAh, 7.2V lithium-polymer battery
  • Working Voltage:9V-32V
  • Power Voltage:DC 12V
  • Operating Temperature:-10 to 40℃
  • Storage Temperature:-40 to 60℃
  • Humidity:<90%
  • Dimension (L×W×H):313X218X30 mm
  • Protocol compatibility:CANFD, DoIP

Accessories

  • Color Carton
  • Packing List
  • Tool Case
  • Desiccant
  • Quick Start Guide

Main Units

  • Tablet
  • VCI Box
  • Type-C to Type-B Data Cable
  • Type-C to Type-A Data Cable
  • Type-C to Type-C Charger Cable
  • Power Cable US
  • Power Cable EU
  • Power Cable UK

Test Connectors

  • HONDA-3
  • TOYOTA-17
  • BMW-20
  • KIA-20
  • MAZDA-17R
  • NISSAN-14
  • GM/DAEWOO-12
  • SUZUKI-3
  • FIAT-3
  • HYUNDAI/KIA-10
  • AUDI-4
  • MITSUBISHI-12+16
  • UNIVERSAL-3
  • BENZ-38
  • BENZ-14
  • OBD II-16
  • DB15 Main Cable
  • CITROEN-2
  • Cigar Lighter Cable
