D8W

Smart Diagnostic System

D8W is an automotive smart diagnostic system with 8 inches LCD display, which is designed for mechanics, electricians, and car maintenance shops. It supports full OBDII function and automotive diagnostics for full-system, including reading ECU version information, reading fault codes, live data, and freeze frames.

D8W

DESCRIPTION
PARAMETERS
DIAGNOSIS
IMMOBILIZER
SPECIAL FUNCTION
PACKING LIST
MANUAL

Description

  • Hardware:
  • ● 8-inch, 1024 x 768 high-resolution touchscreen tablet, 4-core processor with 64 GB storage and running Android 10.0 operating system.
  • ● 5000, 7.2V mAh rechargeable battery, 8 MP front camera
  • ● Stable wire vehicle communication interface supporting CANFD and DoIP protocols
  • ● V113 wireless Wi-Fi vehicle communication interface supporting the latest communication protocols, including CANFD and DoIP
  • Software:
  • ● Comprehensive diagnostics on 1996 and newer U.S., Asian and European vehicles

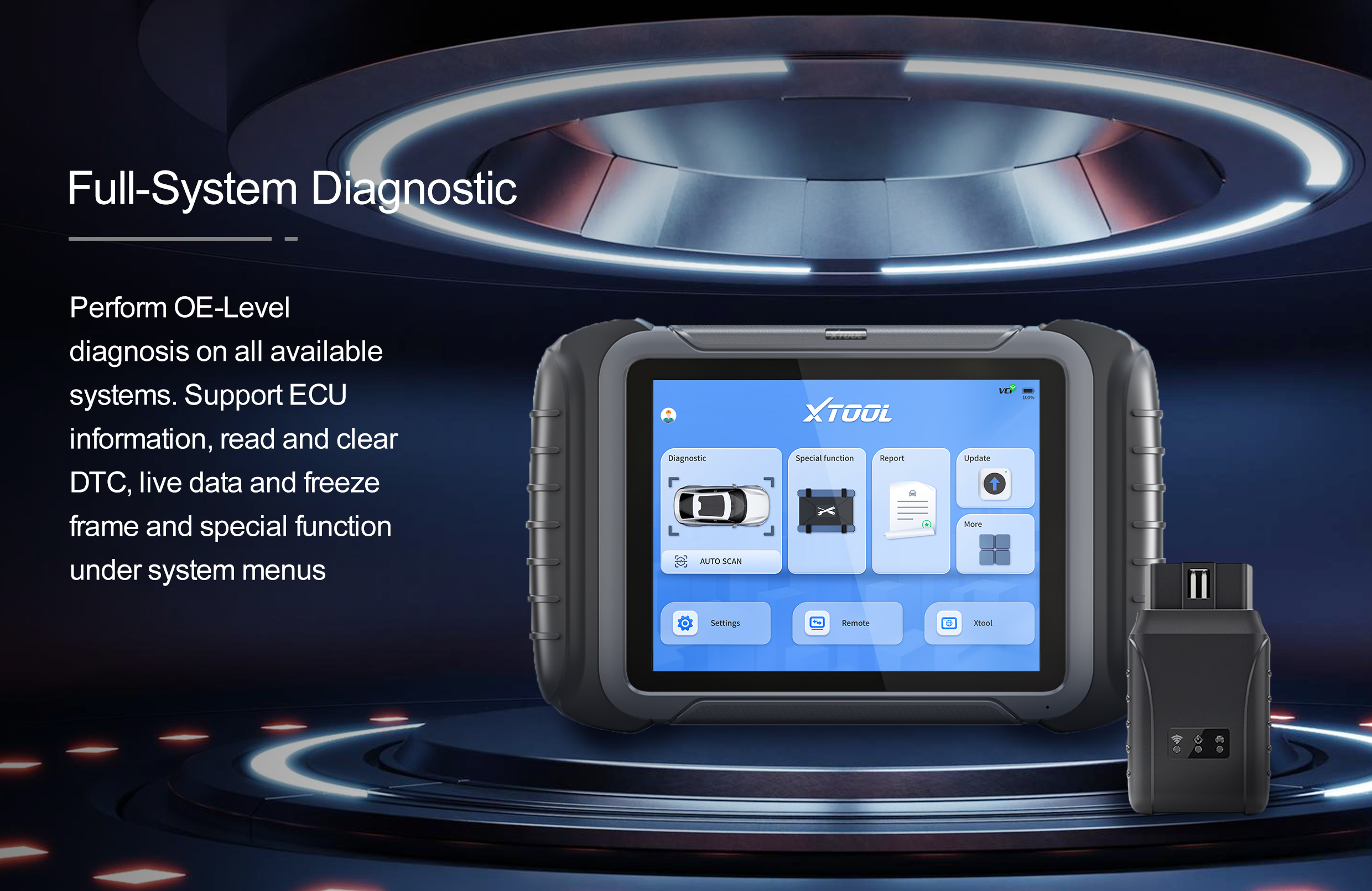

  • ● Automatic detection for all available systems with Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
  • ● Read/Clear DTC, View Freeze Frame and Live Data
  • ● Perform bi-directional controls, support Coding and Adaptations

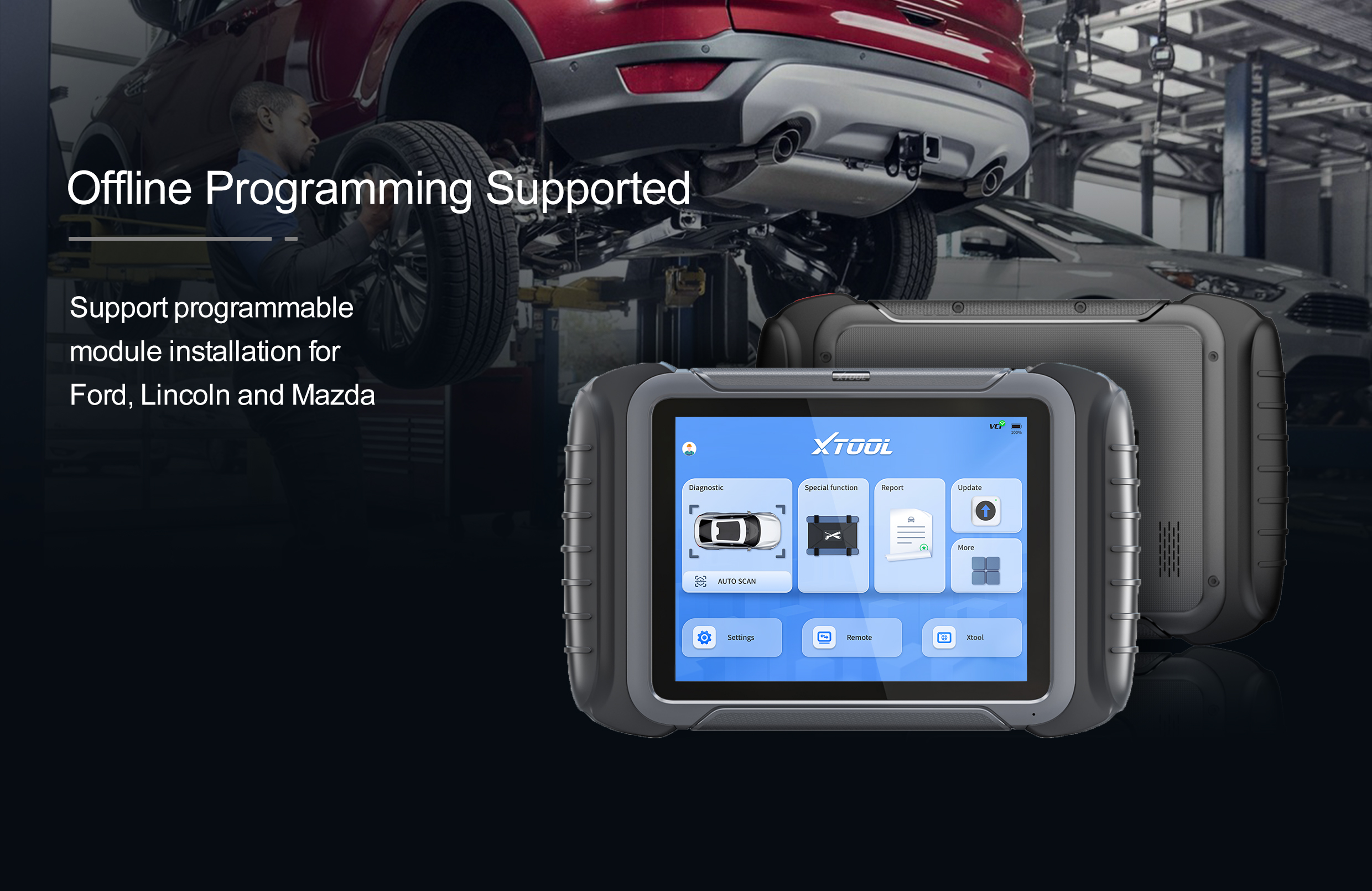

  • ● Supports programmable module installation (offline programming) for Ford, Lincoln and Mazda; offline coding for VW, Benz and Mitsubishi

Parameters

  • Operating System:Android 10
  • Processor:4 Core 1.5 GHz
  • Memory:4G RAM, 64 ROM
  • Display:8-inch capacitive touch screen with 1024×768P resolution
  • Communication Method:WIFI
  • Connectivity:USB/WIFI 2.4/5G
  • Camera:Rear camera, 8.0 Megapixel, AF with Flashlight.
  • Sensors:Gravity Accelerometer, Ambient Light Sensor
  • Auto Input/Output:Microphone, Speaker
  • Input Voltage:9 to 36V
  • Operating Temperature:-10 to 40℃
  • Storage Temperature:-40 to 60℃
  • Humidity:<90%
  • Dimension (L×W×H)::274.0×175.0×33.8 mm
  • Protocol compatibility:CANFD, DOIP

Accessories

  • US power cable
  • Power adapter
  • EU power cable
  • UK power cable
  • USB cable
  • Tool case
  • Packing List
  • Quick Start Guide
  • Carton

Main Units

  • Tablet
  • VCI box
D8W User Manual
DIAGNOSIS--ZZNISSAN
DIAGNOSIS--ACURA
DIAGNOSIS--AUDI
DIAGNOSIS--AUSFORD
DIAGNOSIS--BAOJUN
DIAGNOSIS--BAIC
DIAGNOSIS--BQFT
DIAGNOSIS--BYD
DIAGNOSIS--CHANGAN
DIAGNOSIS--CHANGANSY
DIAGNOSIS--CHANGFENG
DIAGNOSIS--CHANGHE
DIAGNOSIS--CHRYSLER
DIAGNOSIS--CHSUZUKI
DIAGNOSIS--DAEWOO
DIAGNOSIS--DAIHATSU
DIAGNOSIS--DFFS
DIAGNOSIS--DFFX
DIAGNOSIS--DFXK
DIAGNOSIS--DIHAO
DIAGNOSIS--SOUEAST
DIAGNOSIS--EURFORD
DIAGNOSIS--FIAT
DIAGNOSIS--GM
DIAGNOSIS--GQCQ
DIAGNOSIS--HAIMA
DIAGNOSIS--HOLDEN
DIAGNOSIS--HONDA
DIAGNOSIS--HYUNDAI
DIAGNOSIS--INFINITI
DIAGNOSIS--ISUZU
DIAGNOSIS--JAC
DIAGNOSIS--JAGUAR
DIAGNOSIS--JIANGLING
DIAGNOSIS--GAC GONGW
DIAGNOSIS--JINLONG
DIAGNOSIS--JIULONG
DIAGNOSIS--KAIRUI
DIAGNOSIS--KIA
DIAGNOSIS--LANCIA
DIAGNOSIS--LANDROVER
DIAGNOSIS--LEXUS
DIAGNOSIS--LIFAN
DIAGNOSIS--LUFENG
DIAGNOSIS--LUXGEN
DIAGNOSIS--MAZDA
DIAGNOSIS--MIT
DIAGNOSIS--NISSAN
DIAGNOSIS--OBDII
DIAGNOSIS--OPEL
DIAGNOSIS--PERODUA
DIAGNOSIS--PORSCHE
DIAGNOSIS--PROTON
DIAGNOSIS--QUANQIUYING
DIAGNOSIS--RENAULT
DIAGNOSIS--ROEWE
DIAGNOSIS--RUILING
DIAGNOSIS--SAAB
DIAGNOSIS--SEAT
DIAGNOSIS--SHVW
DIAGNOSIS--SKODA
DIAGNOSIS--SPARK
DIAGNOSIS--MG
DIAGNOSIS--SQTYWL
DIAGNOSIS--SSANGYONG
DIAGNOSIS--SUBARU
DIAGNOSIS--SUZUKI
DIAGNOSIS--TJFAW
DIAGNOSIS--TLISUZU
DIAGNOSIS--TOYOTA
DIAGNOSIS--VOLVO
DIAGNOSIS--VW
DIAGNOSIS--WEILING
DIAGNOSIS--XGHC
DIAGNOSIS--XINKAI
DIAGNOSIS--YINGLUN
DIAGNOSIS--YUEJIN
DIAGNOSIS--ZHONGHUA
DIAGNOSIS--ZHONGSHUN
DIAGNOSIS--ZOTYE
DIAGNOSIS--ZHONGXIN
DIAGNOSIS--HAFEI
DIAGNOSIS--MINI
DIAGNOSIS--SCION
DIAGNOSIS--BENTLEY
DIAGNOSIS--ROMEO
DIAGNOSIS--USAFORD
DIAGNOSIS--SMART
DIAGNOSIS--TRANSPORTER
DIAGNOSIS--GREATWALL
DIAGNOSIS--GEELY
DIAGNOSIS--MAXUS
DIAGNOSIS--BRILLIANCE
DIAGNOSIS--CHERY
DIAGNOSIS--MAYBACH
DIAGNOSIS--ABARTH
DIAGNOSIS--Changan Ford
DIAGNOSIS--BENZ
DIAGNOSIS--VAUXHALL
DIAGNOSIS--ROLLS
DIAGNOSIS--BUICK
DIAGNOSIS--CADILLAC
DIAGNOSIS--CHEVROLET
DIAGNOSIS--GMC
DIAGNOSIS--HUMMER
DIAGNOSIS--SATURN
DIAGNOSIS--BUGATTI
DIAGNOSIS--CVVW
DIAGNOSIS--LAMBORGHINI
DIAGNOSIS--DODGE
DIAGNOSIS--MASERATI
DIAGNOSIS--BMW
DIAGNOSIS--VAZ
DIAGNOSIS--GAZ
DIAGNOSIS--UAZ
DIAGNOSIS--BJEV
DIAGNOSIS--CHERYEV
DIAGNOSIS--RENAULTSAM
DIAGNOSIS--DACIA
DIAGNOSIS--QOROS
DIAGNOSIS--BAOWO
DIAGNOSIS--LINCOLN
DIAGNOSIS--JEEP
DIAGNOSIS--Diagnosis-Demo
DIAGNOSIS--HCXINYUAN
DIAGNOSIS--KYC
DIAGNOSIS--Astonmartin
DIAGNOSIS--Ferrari
DIAGNOSIS--GREATWALL
DIAGNOSIS--Hyundai CV
DIAGNOSIS--ZGBUICK
DIAGNOSIS--BJSB
DIAGNOSIS--BJHS
DIAGNOSIS--BJWW
DIAGNOSIS--JETOUR
DIAGNOSIS--NISSANGTR
DIAGNOSIS--JACREFINE
DIAGNOSIS--KAIRUITRUCK
DIAGNOSIS--DFFG
DIAGNOSIS--EXEED
DIAGNOSIS--KNDIEV
DIAGNOSIS--BEIQI(LT)
DIAGNOSIS--JINKANG
DIAGNOSIS--PEUGEOT
DIAGNOSIS--CITROEN
DIAGNOSIS--DFCITROEN
DIAGNOSIS--ZAZ
DIAGNOSIS--IZH
DIAGNOSIS--PAZ
DIAGNOSIS--POLESTAR
DIAGNOSIS--NISSAN PIN DATA
IMMOBILIZER--BESTURN
IMMOBILIZER--BRILLIANCE
IMMOBILIZER--BYD
IMMOBILIZER--CHANGAN
IMMOBILIZER--CHANGFENG
IMMOBILIZER--CHANGHE
IMMOBILIZER--CHERY
IMMOBILIZER--CHRYSLER
IMMOBILIZER--CITROEN
IMMOBILIZER--DFFENGSHEN
IMMOBILIZER--FIAT
IMMOBILIZER--FORD
IMMOBILIZER--GEELY
IMMOBILIZER--GM
IMMOBILIZER--GREATWALL
IMMOBILIZER--HAFEI
IMMOBILIZER--HNMAZDA
IMMOBILIZER--HONDA
IMMOBILIZER--HYUNDAI
IMMOBILIZER--JAC
IMMOBILIZER--JAGUAR
IMMOBILIZER--KIA
IMMOBILIZER--LANCIA
IMMOBILIZER--LANDROVER
IMMOBILIZER--LIFAN
IMMOBILIZER--LINCOLN
IMMOBILIZER--LUFENG
IMMOBILIZER--MAZDA
IMMOBILIZER--MERCURY
IMMOBILIZER--MG
IMMOBILIZER--NISSAN
IMMOBILIZER--PEUGEOT
IMMOBILIZER--PORSCHE
IMMOBILIZER--QNLOTUS
IMMOBILIZER--RENAULT
IMMOBILIZER--ROEWE
IMMOBILIZER--ROMEO
IMMOBILIZER--SSANGYONG
IMMOBILIZER--SUBARU
IMMOBILIZER--SUZUKI
IMMOBILIZER--TOYOTA
IMMOBILIZER--ZZMAZDA
IMMOBILIZER--ZZNISSAN
IMMOBILIZER--IKOPEL
IMMOBILIZER--BAIC
IMMOBILIZER--AUDI
IMMOBILIZER--MITSUBISHI
IMMOBILIZER--DFFENGXING
IMMOBILIZER--HAWTAI
IMMOBILIZER--LUXGEN
IMMOBILIZER--MASERATI
IMMOBILIZER--BAOJUN
IMMOBILIZER--HONGQI
IMMOBILIZER--SMART
IMMOBILIZER--MUSTANG
IMMOBILIZER--BENZ
IMMOBILIZER--JMC
IMMOBILIZER--TRUMPCHI
IMMOBILIZER--FAWJB
IMMOBILIZER--MAXUS
IMMOBILIZER--FERRARI
IMMOBILIZER--IKIVECO
IMMOBILIZER--IKSOUEAST
IMMOBILIZER--BMW
IMMOBILIZER--FOTON
IMMOBILIZER--BORGWARD
IMMOBILIZER--DFFENGGUANG
IMMOBILIZER--VOLVO
IMMOBILIZER--ISUZU
IMMOBILIZER--JEEP
IMMOBILIZER--VENUCIA
IMMOBILIZER--VW
IMMOBILIZER--BENTLEY
IMMOBILIZER--SEAT
IMMOBILIZER--SKODA
IMMOBILIZER--INFINITI
IMMOBILIZER--DODGE
IMMOBILIZER--ACURA
IMMOBILIZER--LEXUS
IMMOBILIZER--KC501LIB
IMMOBILIZER--DAIHATSU
IMMOBILIZER--GENESIS
IMMOBILIZER--SAAB
IMMOBILIZER--LEAPMOTOR
IMMOBILIZER--LIXIANG
IMMOBILIZER--NETA
IMMOBILIZER--SERES
IMMOBILIZER--YUDO
IMMOBILIZER--DAYUN
IMMOBILIZER--SKYWORTH
IMMOBILIZER--RADAR
IMMOBILIZER--LIVAN
SPECIAL FUNCTION--INSTRUMENT CLUSTER
SPECIAL FUNCTION--TPMS RESET
SPECIAL FUNCTION--EEPROM
SPECIAL FUNCTION--AIRBAG RESET
SPECIAL FUNCTION--ECU CONFIGURATIONS
SPECIAL FUNCTION--SUSPENSION
SPECIAL FUNCTION--DPF CONFIG
SPECIAL FUNCTION--BMS RESET
SPECIAL FUNCTION--HEADLIGHT
SPECIAL FUNCTION--THROTTLE
SPECIAL FUNCTION--EPBCONFIG
EPS--EPSCONFIG
SPECIAL FUNCTION--OIL RESET
SPECIAL FUNCTION--TRANSPORT MODE
SPECIAL FUNCTION--TIRE UPGRADE
SPECIAL FUNCTION--GEARBOX MATCH
SPECIAL FUNCTION--SEAT CALIBRATION
SPECIAL FUNCTION--Injector Coding Config
SPECIAL FUNCTION--WINDOWS INITIALIZATION
SPECIAL FUNCTION--GEAR LEARNING
SPECIAL FUNCTION--ABS BLEEDING
SPECIAL FUNCTION--ELECTRONIC PUMP ACTIVATION
SPECIAL FUNCTION--TPMS RESET(EU)
SPECIAL FUNCTION--LANGUAGE CHANGE
SPECIAL FUNCTION--STOP/START RESET
SPECIAL FUNCTION--A/F RESET
SPECIAL FUNCTION--CYLINDER
SPECIAL FUNCTION--ADAS
SPECIAL FUNCTION--TPMSRESET(US)
SPECIAL FUNCTION--TPMSRESET(JP)
SPECIAL FUNCTION--TPMSRESET(KR)
SPECIAL FUNCTION--TPMSRESET(AU)
SPECIAL FUNCTION--SPEED
SPECIAL FUNCTION--CLUTCH
SPECIAL FUNCTION--SRS
SPECIAL FUNCTION--EGR
SPECIAL FUNCTION--FRM
SPECIAL FUNCTION--VGT
SPECIAL FUNCTION--HVBATTERY
SPECIAL FUNCTION--ACRELEARN
SPECIAL FUNCTION--RAINLIGHT
SPECIAL FUNCTION--CONTROLUNIT
