BEC2415

Lithium Battery Charge-Discharge Balancing Device

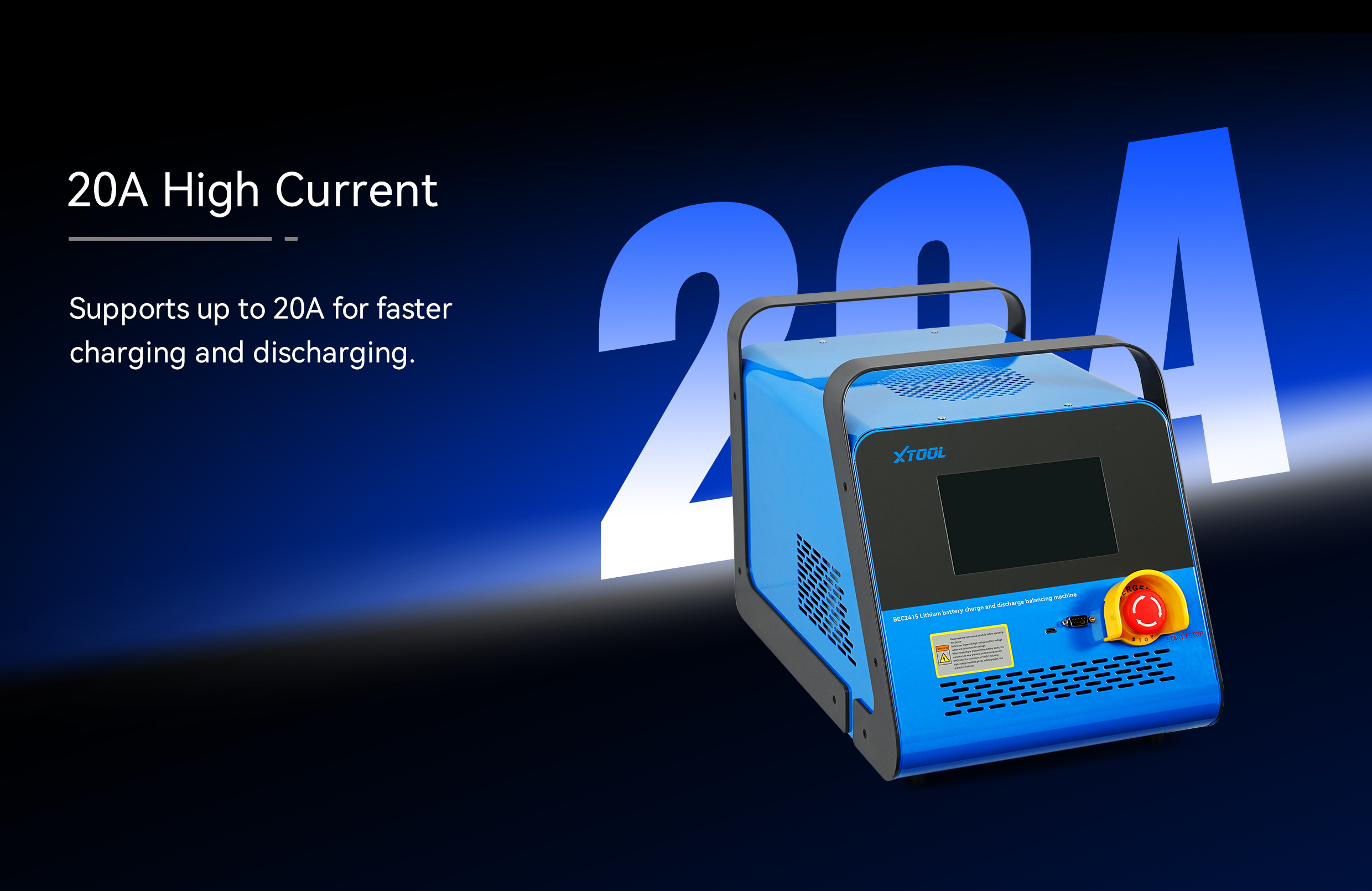

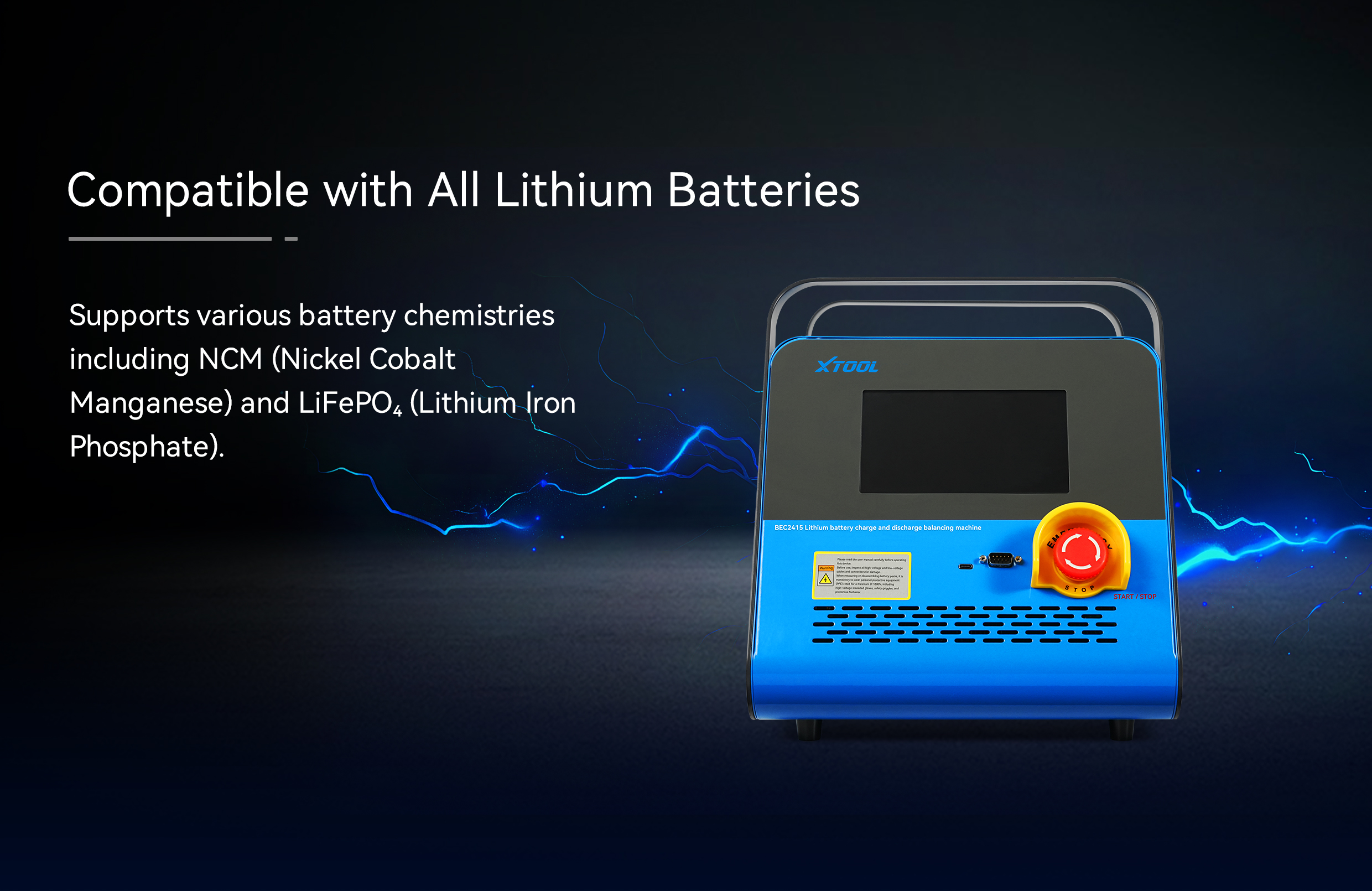

The BEC2415 Lithium Battery Balancer supports up to 20A for both charge and discharge balancing, delivering faster efficiency in both processes. It features advanced software algorithms for high-precision balancing and is compatible with various battery chemistries, including NCM (Nickel Cobalt Manganese) and LiFePO₄ (Lithium Iron Phosphate). The device is equipped with multiple protection features, including undervoltage, overvoltage, overcurrent, short-circuit, and reverse polarity protection. Its compact and lightweight design makes it easy to carry and operate.

BEC2415

DESCRIPTION
PARAMETERS
PACKING LIST
MANUAL
FLYER

Description

  • ● Equipped with proprietary software algorithms
  • ● BEC2415 automatically selects the appropriate balancing mode based on the actual status of the battery
  • ● High-definition touchscreen LCD display
  • ● Powered by an ARM Cortex-M3 series processor

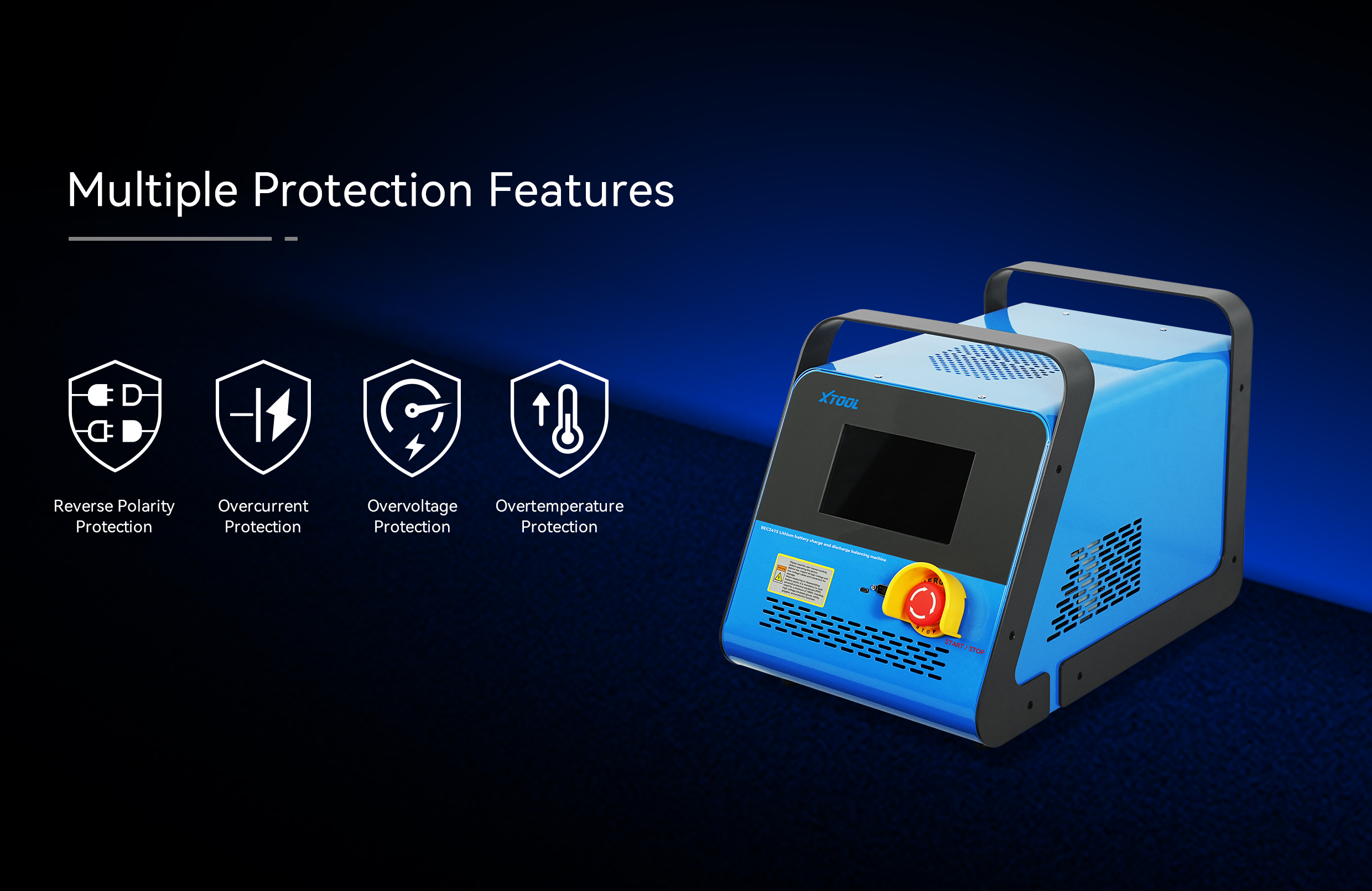

  • ● Multiple protection features with a high-precision voltage acquisition module.
  • ● Supports internal resistance testing for lithium batteries

Parameters

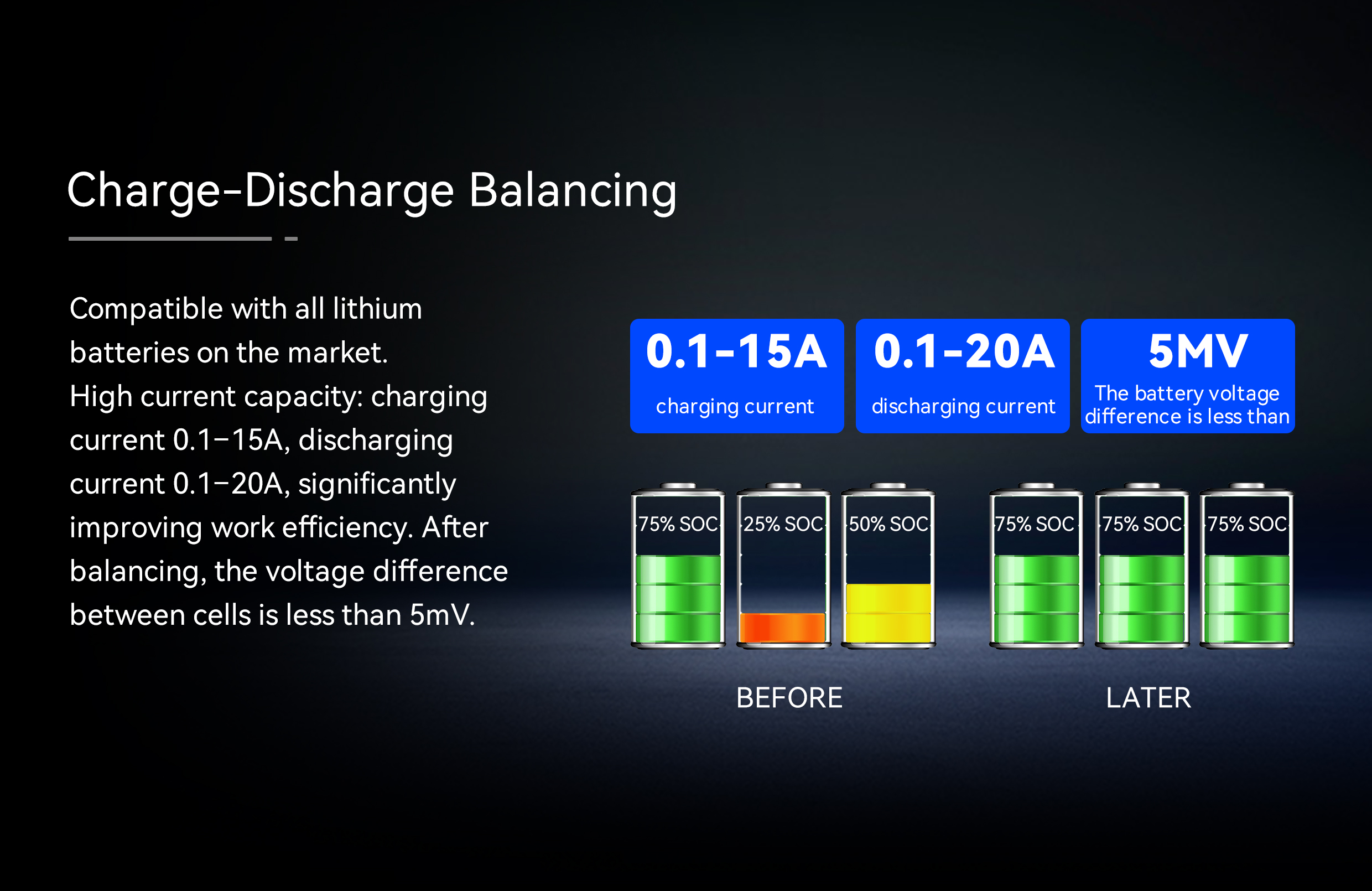

  • Balancing Accuracy:1mV
  • Input Voltage:AC220V/110V±15% 50Hz
  • Device Size:490.75x314x341.5(mm)
  • Maximum Allowable Charge Current:15A
  • Voltage Sampling Accuracy:±0.10%FS
  • Operating Temperature:-10℃~40℃
  • Device Weight:13kg
  • Storage Temperature:-20℃~50℃
  • Power Consumption:<100W
  • Balancing Voltage:2V~4.2V (adjustable)

Accessories

  • Battery Voltage Sampling Cable
  • Main Negative Battery Connection Cable
  • Main Positive Battery Connection Cable
  • Internal Resistance Test Cable (The items listed above are subject to change without prior notice. Please refer to the actual package contents for confirmation.)

Main Units

  • Lithium Battery Smart Balancer
  • AC Power Cable
BEC2415 User Manual
