D7PRO
Smart Diagnostic System

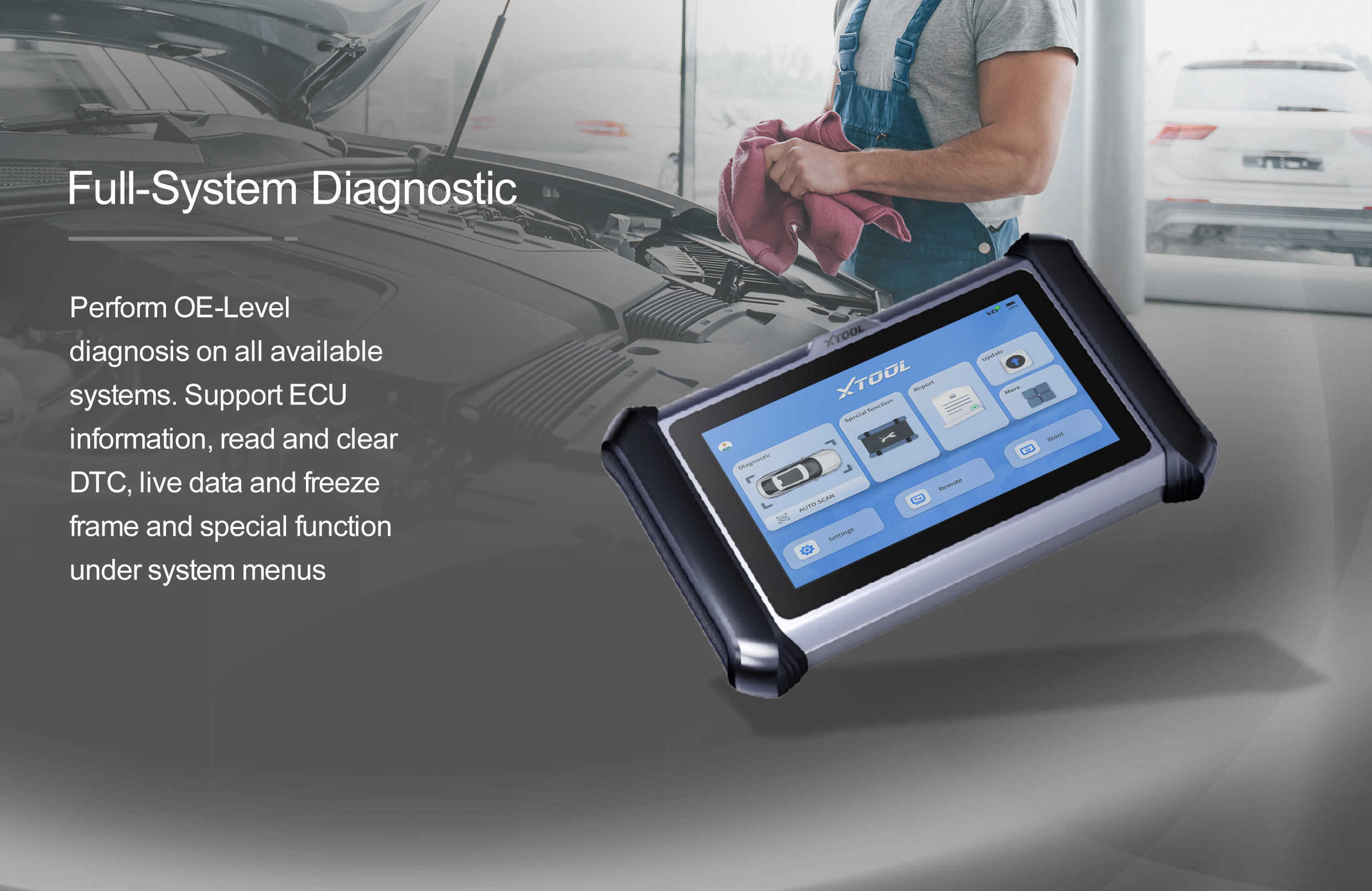

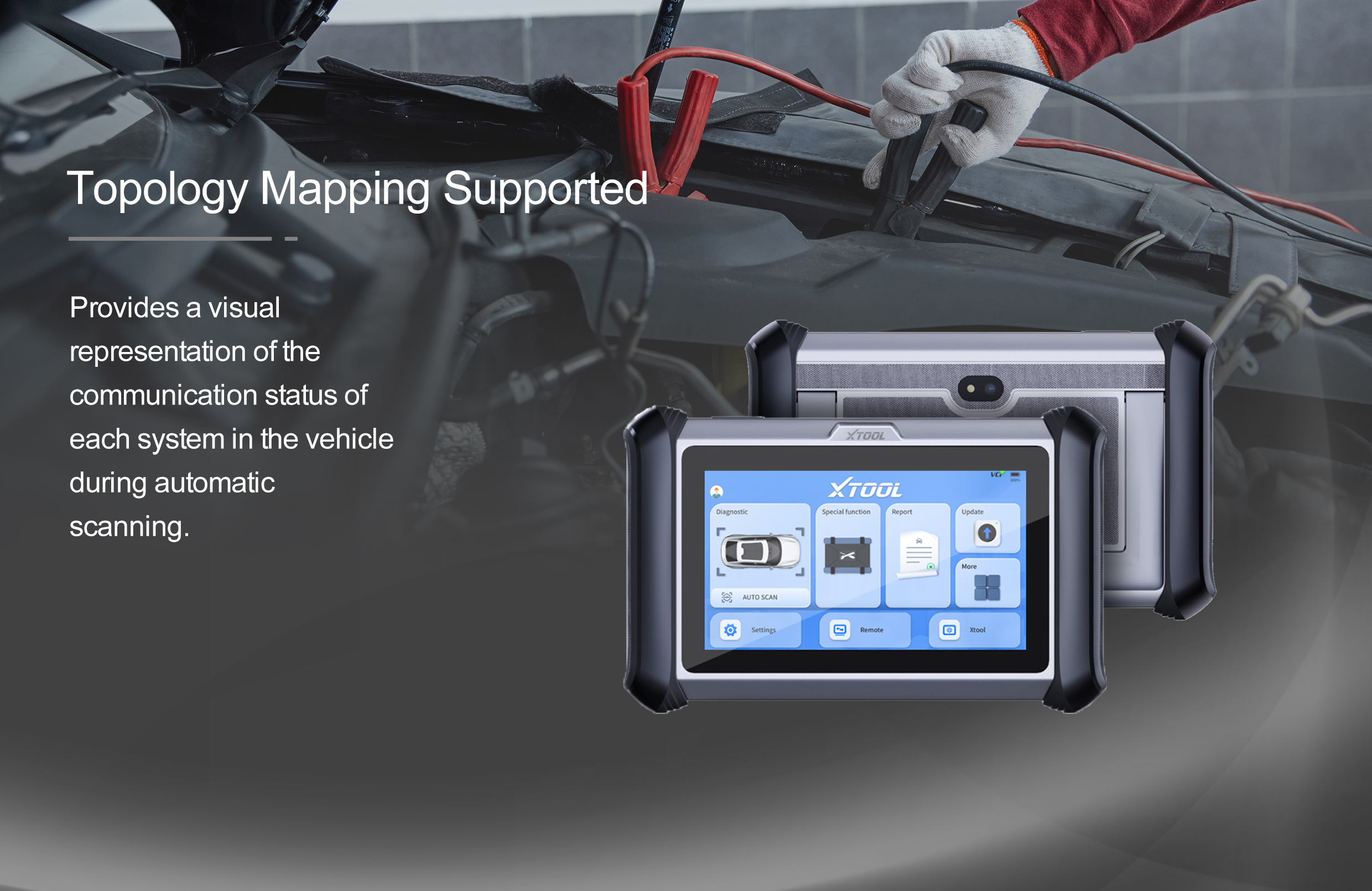

D7PRO is an automotive smart diagnostic system with a 7-inch LCD display and Android 10 OS, which is designed for mechanics, electricians, and car maintenance shops. It supports topology mapping and automotive diagnostics for full-system
30+ common special functions are supported, such as throttle matching, ABS bleed, maintenance light reset, EPB test, SAS, BMS, injector coding, DPF regeneration, and TPMS reset. 98% vehicle coverage, work on more than 100 brands, 10000 cars.
Parameters
-
Operating System：Android 10
-
Operating System：Android 10
-
Processor：Quad-core processor 1.5GHz
-
Processor：Quad-core processor 1.5GHz
-
Memory：2G RAM, 64 ROM
-
Memory：2G RAM, 64 ROM
-
Display：7.0-inch touch screen with 1024×600 resolution
-
Display：7.0-inch touch screen with 1024×600 resolution
-
Communication Method：Wired
-
Communication Method：Wired
-
Connectivity：DB15 TO VAG/USB 2.0/WIFI 2.4/5G
-
Connectivity：DB15 TO VAG/USB 2.0/WIFI 2.4/5G
-
Sensors：Gravity Accelerometer, Ambient Light Sensor
-
Sensors：Gravity Accelerometer, Ambient Light Sensor
-
Auto Input/Output：Microphone, Speaker
-
Auto Input/Output：Microphone, Speaker
-
Battery：5000mAh, 3.65V lithium-polymer battery
-
Battery：5000mAh, 3.65V lithium-polymer battery
-
Working Voltage：9-18V
-
Working Voltage：9-18V
-
Storage Temperature：-40 to 60℃
-
Operating Temperature：-10 to 40℃
-
Storage Temperature：-40 to 60℃
-
Humidity：<90%
-
Humidity：<90%
-
Protocol compatibility：CANFD, DOIP
-
Protocol compatibility：CANFD, DOIP
Accessories
- USB Cable
- USB Cable
- Charger for Tablet
- Charger for Tablet
- Charger US Adapter
- Charger EU Adapter
- Charger EU Adapter
- Charger UK Adapter
- Charger UK Adapter
- Charger US Adapter
- Color Carton
- Color Carton
- Packing List
- Packing List
- Certificate of Quality
- Certificate of Quality
- Tool Case
- Tool Case
- Quick Start Guide
- Quick Start Guide
Main Units
- P720 Tablet
- P720 Tablet
Test Connectors
- VGA to OBD II Main Cable
- VGA to OBD II Main Cable
