COMPASS / COMPASS MASTER

Flagship Smart Diagnosis System

COMPASS is your ultimate diagnostic companion, designed for efficiency and precision. Featuring a crystal-clear 10.1" display and powerful performance, it ensures seamless operation for professionals. With J2534 support (optional), it enables OEM software connectivity for advanced diagnostics and programming. Covering a wide range of vehicles, it offers topology mapping, ADAS calibration, and online coding. Plus, with wireless charging and long battery life, you can work without limits. COMPASS — smart, powerful, and built for the future of automotive diagnostics!

COMPASS / COMPASS MASTER

DESCRIPTION
PARAMETERS
VIDEO
DIAGNOSTICS
IMMOBILIZER
SPECIAL FUNCTION
PACKING LIST
MANUAL
FLYER

Description

  • ● Offers access to an online informatics database in partnership with Identifix
  • ● Features a 10.1-inch display with a resolution of 1920 x 1200 and runs on the Android 10.0 operating system
  • ● Powered by an octa-core processor (2.2GHz + 1.8GHz) and comes with 8GB RAM and 128GB of internal storage
  • ● Dual Wi-Fi connectivity allows simultaneous connections to the internet and the VCI
  • ● Equipped with a 6400mAh, 7.2V high-capacity battery for extended working hours
  • ● Includes an 8MP rear camera for capturing diagnostic or vehicle condition images
  • ● Supports all standard diagnostic protocols along with DoIP and CANFD for advanced vehicle communication

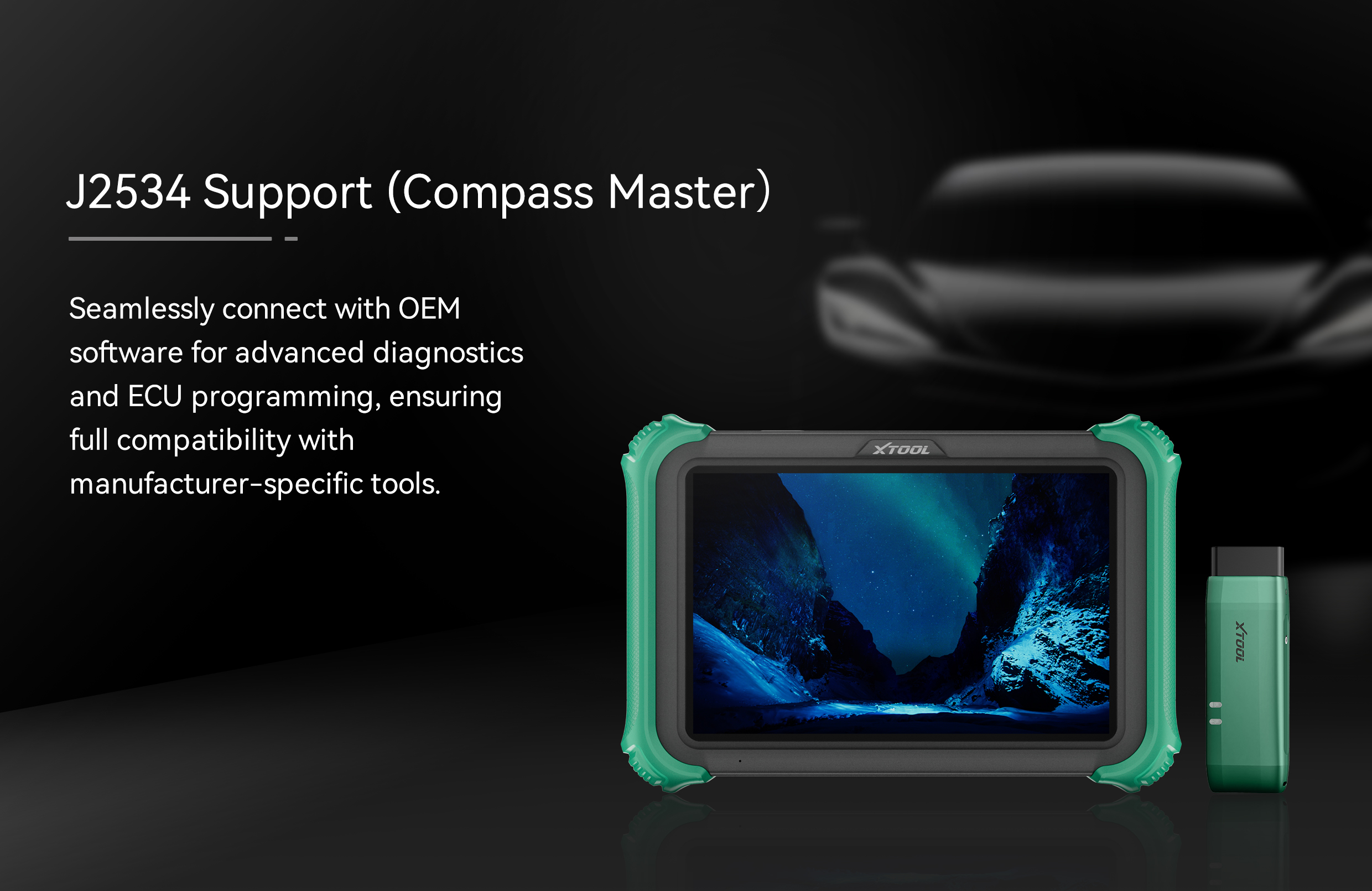

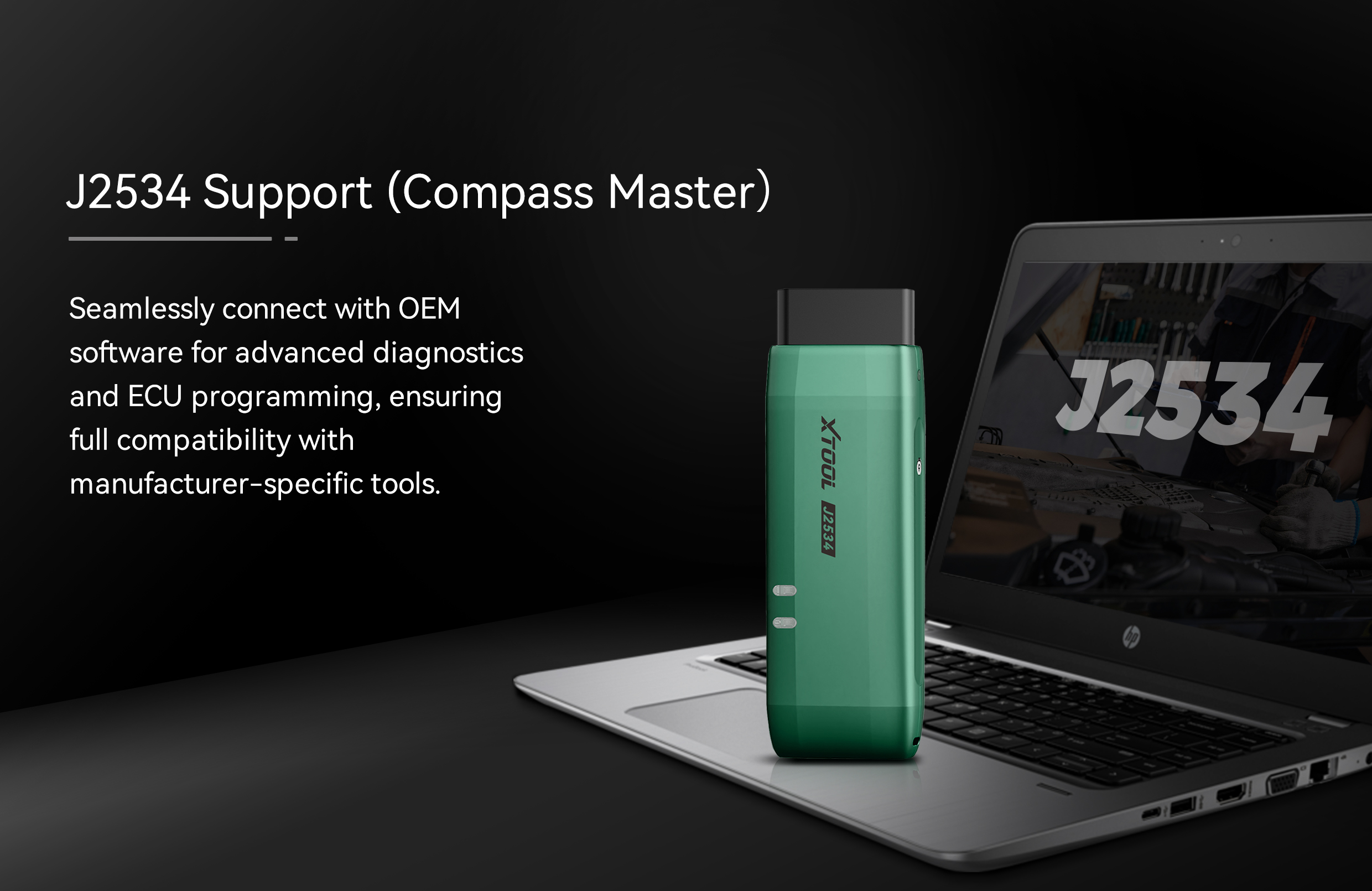

  • ● SAE J2534 compatibility is available for OEM software connectivity (Included by default on COMPASS MASTER; available as a paid option on COMPASS)

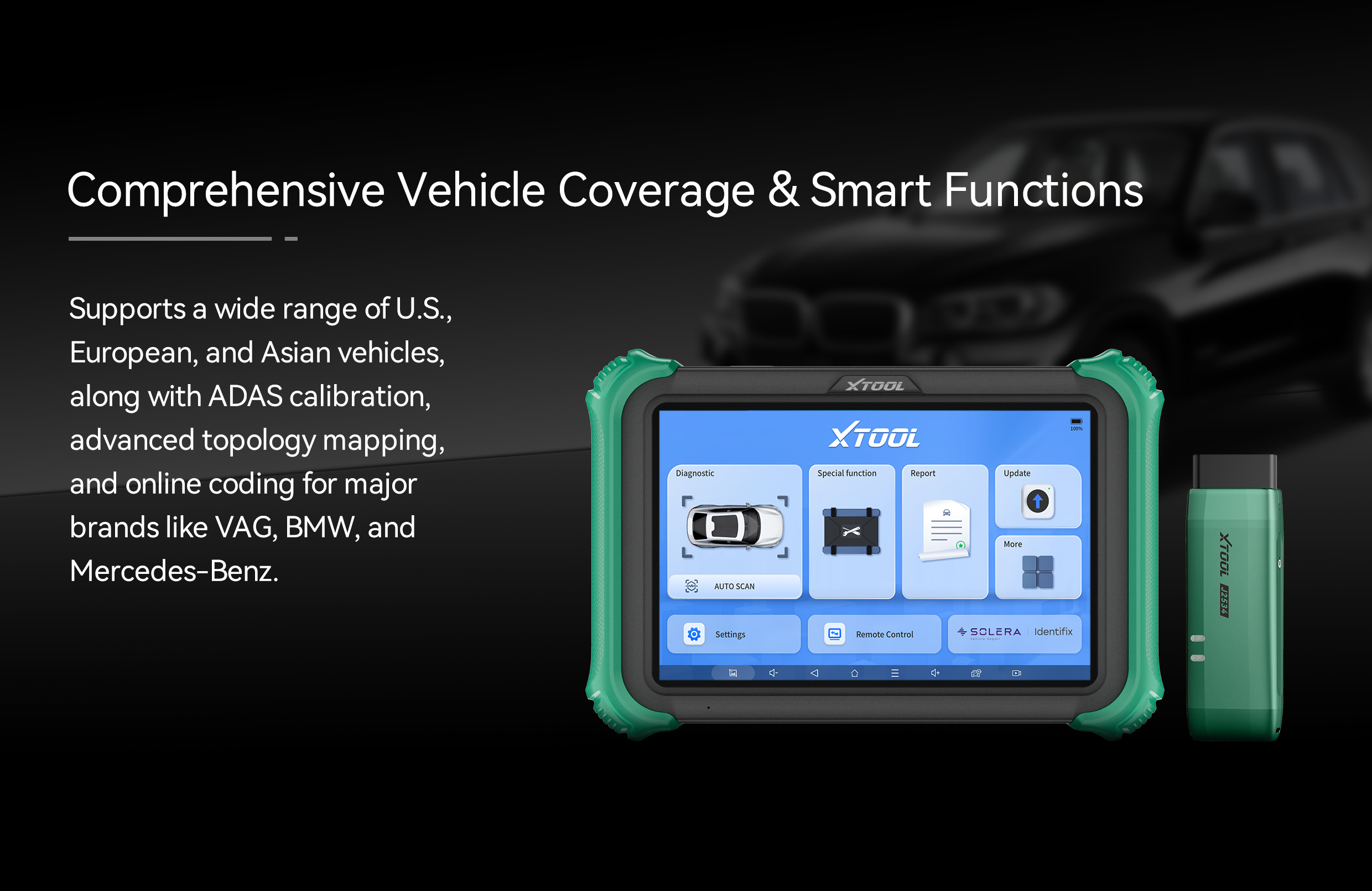

  • ● Provides extensive vehicle coverage, including U.S., European, and Asian models — such as BUICK, DODGE, FORD, TESLA, HONDA, MAZDA, NISSAN, TOYOTA, AUDI, BMW, MERCEDES, VW, VOLVO, and more
  • ● Features a topology module mapping function with color-coded system status displays (on supported vehicles)
  • ● Supports offline programming for Ford, Lincoln, and Mazda, as well as online coding and programming for VAG, BMW, and Mercedes-Benz
  • ● Tesla Diagnostics Available: Perform comprehensive diagnostics on Tesla vehicles with full data access and a range of special functions
  • ● Enables ADAS system calibrations for both cameras and radar-based systems
  • ● Comes with OBDI connectors
  • ● Generates enhanced diagnostic reports, including PreSCAN and PostSCAN documentation
  • ● Includes a 3-year software subscription for continuous updates and improvements
  • ● Fully integrated with AutoAuth™ to provide seamless access to FCA's Secure Gateway (SGW)

Parameters

  • Operating System：Android 10.0
  • VCI Communication：Wi-Fi/Wired
  • Processor：2.2GHz+1.8GHz Octa-core Processor
  • Ports：USB （Type-C）
  • Memory：128G
  • Display：10.1-inch, 1920×1200
  • Battery：6400 mAh, 7.2V
  • Camera：8MP rear
  • Working Temperature：0 to 40℃
  • Compatible Protocol：UDS, KWP2000, K_Line/L_Line, CAN/CANFD, DoIP, SAE J1939, SAE J1708, SAE J1587, SAE J1850, etc.
DIAGNOSIS--NISSAN PIN DATA
DIAGNOSIS--BEIJING JEEP
DIAGNOSIS--BAOJUN
DIAGNOSIS--BENTLEY
DIAGNOSIS--BYD
DIAGNOSIS--BAIC MOTOR
DIAGNOSIS--DAIHATSU
DIAGNOSIS--DAEWOO
DIAGNOSIS--AUDI
DIAGNOSIS--ACURA
DIAGNOSIS--FIAT
DIAGNOSIS--HAIMA
DIAGNOSIS--CHRYSLER
DIAGNOSIS--CVVW
DIAGNOSIS--BRILLIANCE JINBEI
DIAGNOSIS--CHANGFENG
DIAGNOSIS--EMGRAND
DIAGNOSIS--BEIJING HYUNDAI
DIAGNOSIS--BENZ
DIAGNOSIS--CHANGAN SUZUKI
DIAGNOSIS--BUGATTI
DIAGNOSIS--EUR FORD
DIAGNOSIS--GM
DIAGNOSIS--BUICK
DIAGNOSIS--CADILLAC
DIAGNOSIS--GMC
DIAGNOSIS--DFNISSAN
DIAGNOSIS--GWM
DIAGNOSIS--CHANGAN FORD
DIAGNOSIS--BMW BRILLIANCE
DIAGNOSIS--CHANGHE SUZUKI
DIAGNOSIS--BQWW
DIAGNOSIS--ABARTH
DIAGNOSIS--HONDA
DIAGNOSIS--BQFT
DIAGNOSIS--CHEVROLET
DIAGNOSIS--AEOLUS
DIAGNOSIS--CHANGAN
DIAGNOSIS--CAMAZDA
DIAGNOSIS--DFHONDA
DIAGNOSIS--GQTOYOTA
DIAGNOSIS--CHANGHE
DIAGNOSIS--GAZ
DIAGNOSIS--DFWX
DIAGNOSIS--FORTHING
DIAGNOSIS--SOKON
DIAGNOSIS--DODGE
DIAGNOSIS--HYUNDAI
DIAGNOSIS--SOUEAST
DIAGNOSIS--GAC MOTOR
DIAGNOSIS--GZHONDA
DIAGNOSIS--HAFEI
DIAGNOSIS--HUMMER
DIAGNOSIS--JAGUAR
DIAGNOSIS--JAC
DIAGNOSIS--KINGLONG
DIAGNOSIS--INFINITI
DIAGNOSIS--ISUZU
DIAGNOSIS--JMC
DIAGNOSIS--GEELY
DIAGNOSIS--LANDROVER
DIAGNOSIS--KARRY
DIAGNOSIS--LAMBORGHINI
DIAGNOSIS--MINI
DIAGNOSIS--KIA
DIAGNOSIS--LEXUS
DIAGNOSIS--MIT
DIAGNOSIS--MASERATI
DIAGNOSIS--ROEWE
DIAGNOSIS--OPEL
DIAGNOSIS--PERODUA
DIAGNOSIS--LANCIA
DIAGNOSIS--MG
DIAGNOSIS--MAYBACH
DIAGNOSIS--LIFAN
DIAGNOSIS--RENAULT
DIAGNOSIS--PORSCHE
DIAGNOSIS--SUZUKI
DIAGNOSIS--LUXGEN
DIAGNOSIS--SUBARU
DIAGNOSIS--TOYOTA
DIAGNOSIS--SHSKODA
DIAGNOSIS--NISSAN
DIAGNOSIS--SQTYWL
DIAGNOSIS--SHGM
DIAGNOSIS--USA FORD
DIAGNOSIS--ZZNISSAN
DIAGNOSIS--CHERY
DIAGNOSIS--NIVECO
DIAGNOSIS--ROLLS-ROYCE
DIAGNOSIS--PONTIAC
DIAGNOSIS--ZHONGHUA
DIAGNOSIS--GLEAGLE
DIAGNOSIS--FAWTOYOTA
DIAGNOSIS--TJFAW
DIAGNOSIS--VW
DIAGNOSIS--OBDII
DIAGNOSIS--MAZDA
DIAGNOSIS--SAAB
DIAGNOSIS--SMART
DIAGNOSIS--CHEVROLET SPARK
DIAGNOSIS--SSANGYONG
DIAGNOSIS--UAZ
DIAGNOSIS--SEAT
DIAGNOSIS--ALFA ROMEO
DIAGNOSIS--ENGLON
DIAGNOSIS--MAXUS
DIAGNOSIS--VAZ
DIAGNOSIS--SKODA
DIAGNOSIS--SCION
DIAGNOSIS--SHVW
DIAGNOSIS--SATURN
DIAGNOSIS--VOLVO
DIAGNOSIS--FAW MAZDA
DIAGNOSIS--ZOTYE AUTO
DIAGNOSIS--VAUXHALL
DIAGNOSIS--TRANSPORTER
DIAGNOSIS--FAW CAR
DIAGNOSIS--FAWJIAOBAO
DIAGNOSIS--YDKIA
DIAGNOSIS--FAW VW
DIAGNOSIS--FAW AUDI
DIAGNOSIS--RENAULTSAM
DIAGNOSIS--DACIA
DIAGNOSIS--BORGWARD
DIAGNOSIS--LINCOLN
DIAGNOSIS--JEEP
DIAGNOSIS--DEMO
DIAGNOSIS--HCXINYUAN
DIAGNOSIS--CHANGAN KUAYUE
DIAGNOSIS--ASTONMARTIN
DIAGNOSIS--FERRARI
DIAGNOSIS--HYUNDAICV
DIAGNOSIS--CHINA BUICK
DIAGNOSIS--CHINA CHEVROLET
DIAGNOSIS--CHINA CADILLAC
DIAGNOSIS--LYNKCO
DIAGNOSIS--BMW
DIAGNOSIS--SENOVA
DIAGNOSIS--HYOSOW
DIAGNOSIS--JETOUR
DIAGNOSIS--NISSAN GT-R
DIAGNOSIS--CMC
DIAGNOSIS--JAC REFINE
DIAGNOSIS--KARRYTRUCK
DIAGNOSIS--FENCON
DIAGNOSIS--LAVW
DIAGNOSIS--EXEED
DIAGNOSIS--TESLA
DIAGNOSIS--NIVECO(LT)
DIAGNOSIS--QINGLING(LT)
DIAGNOSIS--DFCV(LT)
DIAGNOSIS--BEIQI(LT)
DIAGNOSIS--ISUZU(LT)
DIAGNOSIS--JMC(LT)
DIAGNOSIS--JAC(LT)
DIAGNOSIS--YUTONG(LT)
DIAGNOSIS--JINKANG
DIAGNOSIS--PEUGEOT
DIAGNOSIS--CITROEN
DIAGNOSIS--DFPEUGEOT
DIAGNOSIS--DFCITROEN
DIAGNOSIS--HYCAN
DIAGNOSIS--ZAZ
DIAGNOSIS--IZH
DIAGNOSIS--PAZ
DIAGNOSIS--VINFAST
DIAGNOSIS--POLESTAR
DIAGNOSIS--GEELY MONJARO
DIAGNOSIS--VW EXPERT
DIAGNOSIS--YQHQ
DIAGNOSIS--YQBT
DIAGNOSIS--SHAUDI
DIAGNOSIS--BMW Extended Capabilities
IMMOBILIZER--BAIC
IMMOBILIZER--BAOJUN
IMMOBILIZER--AUDI
IMMOBILIZER--BENZ
IMMOBILIZER--DFFENGGUANG
IMMOBILIZER--BESTURN
IMMOBILIZER--FAWJB
IMMOBILIZER--BYD
IMMOBILIZER--BMW
IMMOBILIZER--CHANGAN
IMMOBILIZER--CHANGHE
IMMOBILIZER--BORGWARD
IMMOBILIZER--HAFEI
IMMOBILIZER--MAXUS
IMMOBILIZER--LUXGEN
IMMOBILIZER--CITROEN
IMMOBILIZER--LIFAN
IMMOBILIZER--CHANGFENG
IMMOBILIZER--DFFENGSHEN
IMMOBILIZER--CHRYSLER
IMMOBILIZER--MASERATI
IMMOBILIZER--DFFENGXING
IMMOBILIZER--HYUNDAI
IMMOBILIZER--FIAT
IMMOBILIZER--CHERY
IMMOBILIZER--LANDROVER
IMMOBILIZER--FERRARI
IMMOBILIZER--JAC
IMMOBILIZER--LUFENG
IMMOBILIZER--FOTON
IMMOBILIZER--LANCIA
IMMOBILIZER--FORD
IMMOBILIZER--MITSUBISHI
IMMOBILIZER--HONGQI
IMMOBILIZER--MG
IMMOBILIZER--IKIVECO
IMMOBILIZER--GEELY
IMMOBILIZER--GM
IMMOBILIZER--JAGUAR
IMMOBILIZER--GREATWALL
IMMOBILIZER--JMC
IMMOBILIZER--KIA
IMMOBILIZER--HONDA
IMMOBILIZER--MERCURY
IMMOBILIZER--LINCOLN
IMMOBILIZER--MAZDA
IMMOBILIZER--RENAULT
IMMOBILIZER--IKSOUEAST
IMMOBILIZER--ROMEO
IMMOBILIZER--ROEWE
IMMOBILIZER--NISSAN
IMMOBILIZER--SUBARU
IMMOBILIZER--SUZUKI
IMMOBILIZER--PERODUA
IMMOBILIZER--PEUGEOT
IMMOBILIZER--TOYOTA
IMMOBILIZER--SMART
IMMOBILIZER--IKOPEL
IMMOBILIZER--SSANGYONG
IMMOBILIZER--TRUMPCHI
IMMOBILIZER--PORSCHE
IMMOBILIZER--VOLVO
IMMOBILIZER--ISUZU
IMMOBILIZER--SEAT
IMMOBILIZER--SKODA
IMMOBILIZER--INFINITI
IMMOBILIZER--DODGE
IMMOBILIZER--ACURA
IMMOBILIZER--LEXUS
IMMOBILIZER--JEEP
IMMOBILIZER--VW
IMMOBILIZER--BENTLEY
IMMOBILIZER--KC501LIB
IMMOBILIZER--DAIHATSU
IMMOBILIZER--GENESIS
IMMOBILIZER--SAAB
IMMOBILIZER--LEAPMOTOR
IMMOBILIZER--LIXIANG
IMMOBILIZER--NETA
IMMOBILIZER--SERES
SPECIAL FUNCTION--EEPROM
SPECIAL FUNCTION--TPMS RESET
SPECIAL FUNCTION--ECU Configurations
SPECIAL FUNCTION--Suspension Adaptation
SPECIAL FUNCTION--DPF Regen
SPECIAL FUNCTION--BMS Reset
SPECIAL FUNCTION--Headlight
SPECIAL FUNCTION--TPMSCONFIG
SPECIAL FUNCTION--Throttle Adaptation
SPECIAL FUNCTION--EPB Reset
SPECIAL FUNCTION--EPS Adaptation
SPECIAL FUNCTION--Oil Reset
SPECIAL FUNCTION--Transport Mode
SPECIAL FUNCTION--Tire Size Reset
SPECIAL FUNCTION--Gearbox Adaptation
SPECIAL FUNCTION--Seat Calibration
SPECIAL FUNCTION--Injector Coding
SPECIAL FUNCTION--Windows Initialization
SPECIAL FUNCTION--CPS Reset
SPECIAL FUNCTION--P/A Radar
SPECIAL FUNCTION--ABS Bleeding
SPECIAL FUNCTION--Water Pump Actuation
SPECIAL FUNCTION--TPMS RESET(EU)
SPECIAL FUNCTION--Language Change
SPECIAL FUNCTION--Stop/Start Reset
SPECIAL FUNCTION--AFR Adaptation
SPECIAL FUNCTION--Power Balance
SPECIAL FUNCTION--ADAS
SPECIAL FUNCTION--TPMSRESET(US)
SPECIAL FUNCTION--TPMSRESET(JP)
SPECIAL FUNCTION--TPMSRESET(KR)
SPECIAL FUNCTION--TPMSRESET(AU)
SPECIAL FUNCTION--Speed Limit
SPECIAL FUNCTION--Clutch Adaption
SPECIAL FUNCTION--ABS/ESP Adaptation
SPECIAL FUNCTION--AdBlue Reset
SPECIAL FUNCTION--EGR Relearn
SPECIAL FUNCTION--FRM Reset
SPECIAL FUNCTION--NOx Reset
SPECIAL FUNCTION--Write VIN
SPECIAL FUNCTION--Turbo Relearn
SPECIAL FUNCTION--HV Battery
SPECIAL FUNCTION--A/C Relearn
SPECIAL FUNCTION--Rain/Light Sensor
SPECIAL FUNCTION--Control Unit Reset
SPECIAL FUNCTION--Odometer Read
SPECIAL FUNCTION--RPS Adaptation
SPECIAL FUNCTION--Sunroof Initialization
SPECIAL FUNCTION--Coolant System Functions
SPECIAL FUNCTION--GPF Regen
SPECIAL FUNCTION--Gateway Reset
SPECIAL FUNCTION--Cam Sensor Adaptation
SPECIAL FUNCTION--Fuel Pump Priming
SPECIAL FUNCTION--TCM Service Reset
SPECIAL FUNCTION--EVAP Test
SPECIAL FUNCTION--Glow Plug Reset
SPECIAL FUNCTION--Injector Adaptation
SPECIAL FUNCTION--Airbag Reset

Accessories

  • Color Carton
  • Packing List
  • Certificate of Quality
  • Tool Case
  • Quick Guide

Main Units

  • Tablet
  • VCI Box
  • Power Supply (PD)
  • Charging Adapter (EU)
  • Charging Adapter (UK)
  • PD-12V Power Cable (Type-C to DC)
  • Data Cable (Type-C To Type-C)
  • Adapter (Type-C to Type-A)

Test Connectors

  • CITROEN-2
  • VW/AUDI-2+2
  • MITSUBISHI/HYUNDAI-12+16
  • UNIVERSAL-3
  • BENZ-14
  • BENZ-38
  • BMW-20
  • GM/DAEWOO-12
  • HONDA-3
  • TOYOTA-17
  • NISSAN-14
  • KIA-20
  • HYUNDAI/KIA-10
  • MAZDA-17
  • SUZUKI-3
  • FIAT-3
